USER MANUAL
REMOTE
INPUTS
4

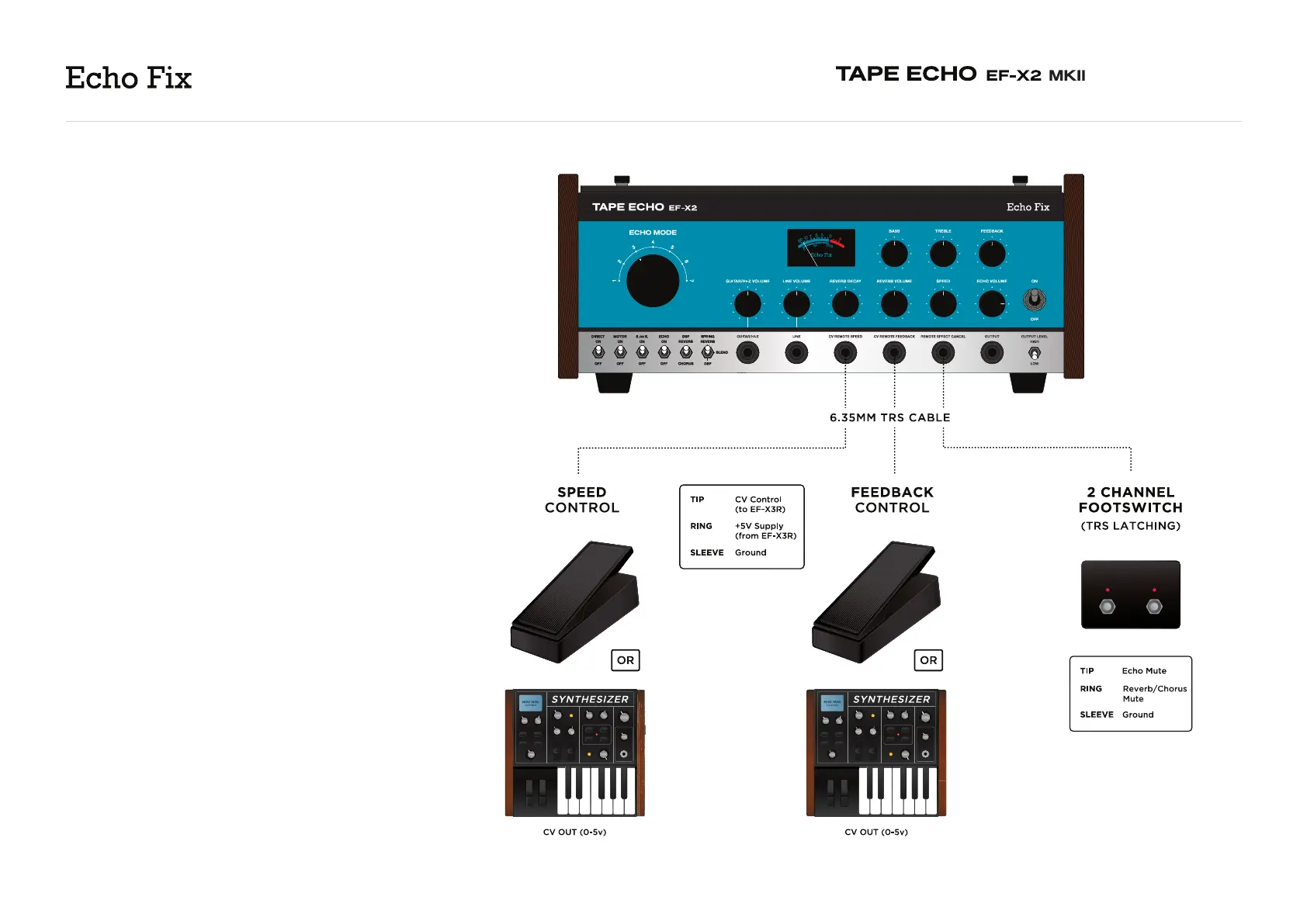

We have designed the EF-X2 MKII to accommodate CV or
expression pedal control of the tape speed and feedback
functions. The control voltage range is 0 - 5v for CV control.
The expression pedal needs to be a TRS output and is
recommended to be 100KΩ impedance.
Both the echo and reverb (spring reverb, DSP reverb/
chorus) effects can be disabled via a dual TRS latching
footswitch.
PAGE 9 OF 12
1 2
EXPRESSION
EXPRESSION
