13
Description

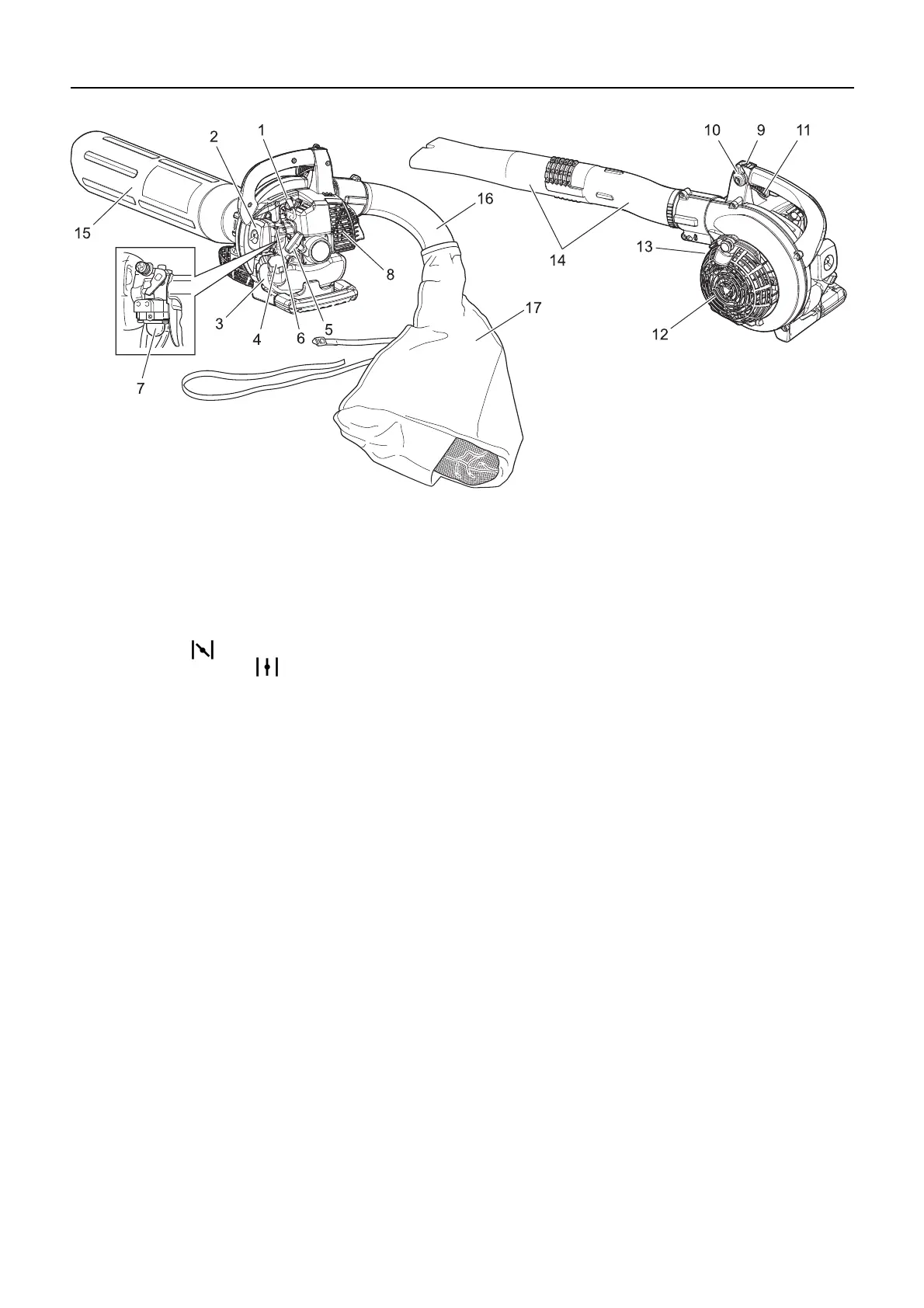

Description
1. Spark plug Provides spark to ignite fuel mixture.
2. Air cleaner Contains replaceable air filter element.
3. Fuel tank Contains fuel and fuel filter.
4. Fuel tank cap Covers and seals fuel tank.
5. Starter handle The grip of the starter, for starting the en-
gine.("ES"START)
6. Choke Choke is located on top of the air cleaner. Move
choke lever to position to close choke for cold start-
ing. Move choke lever to position to open choke.
7. Purge bulb Pumping purge bulb before starting engine
draws fresh fuel from the fuel tank, purging air from the
carburettor. Pump purge bulb until fuel is visible and
flows freely in the clear fuel tank return line. Pump purge
bulb an additional 4 or 5 times.
8. Spark arrestor - Catalytic silencer / Silencer The silenc-
er or catalytic silencer controls exhaust noise and emis-
sion. The spark arrestor screen prevents hot, glowing
particles of carbon from leaving the silencer. Keep ex-
haust area clear of flammable debris.
9. Stop switch "SLIDE SWITCH" mounted on top of handle.
Push forward to start and run. Slide back to stop.
10. Throttle position lever (Throttle setting device) Pull
back to increase engine speed. Friction washers main-
tain throttle lever setting.
11. Throttle trigger Spring loaded to return to idle when re-
leased. During acceleration, press trigger gradually for
best operating technique.
12. Housing cover Covers blade area and activates safety
interlock switch when closed. Engine will not run if safe-
ty switch is not activated.
13. Type and serial number.
14. Blower pipes Exclusive positive locking system.
15. Vacuum tube Sucks in materials to be shredded.
16. Vacuum elbow Discharges shredded material.
17. Debris bag Collects shredded material.
