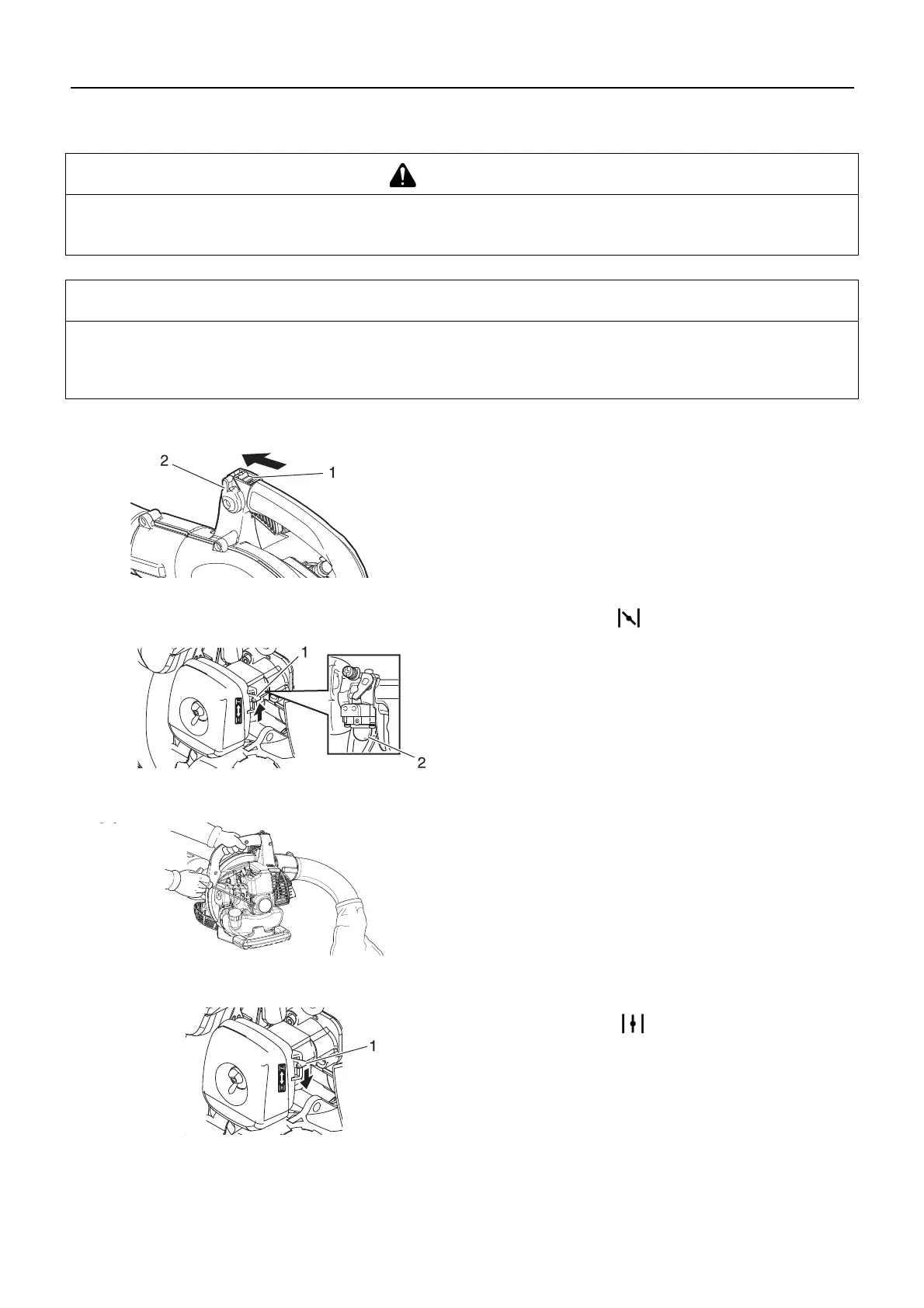

Install blower pipes for blower usage

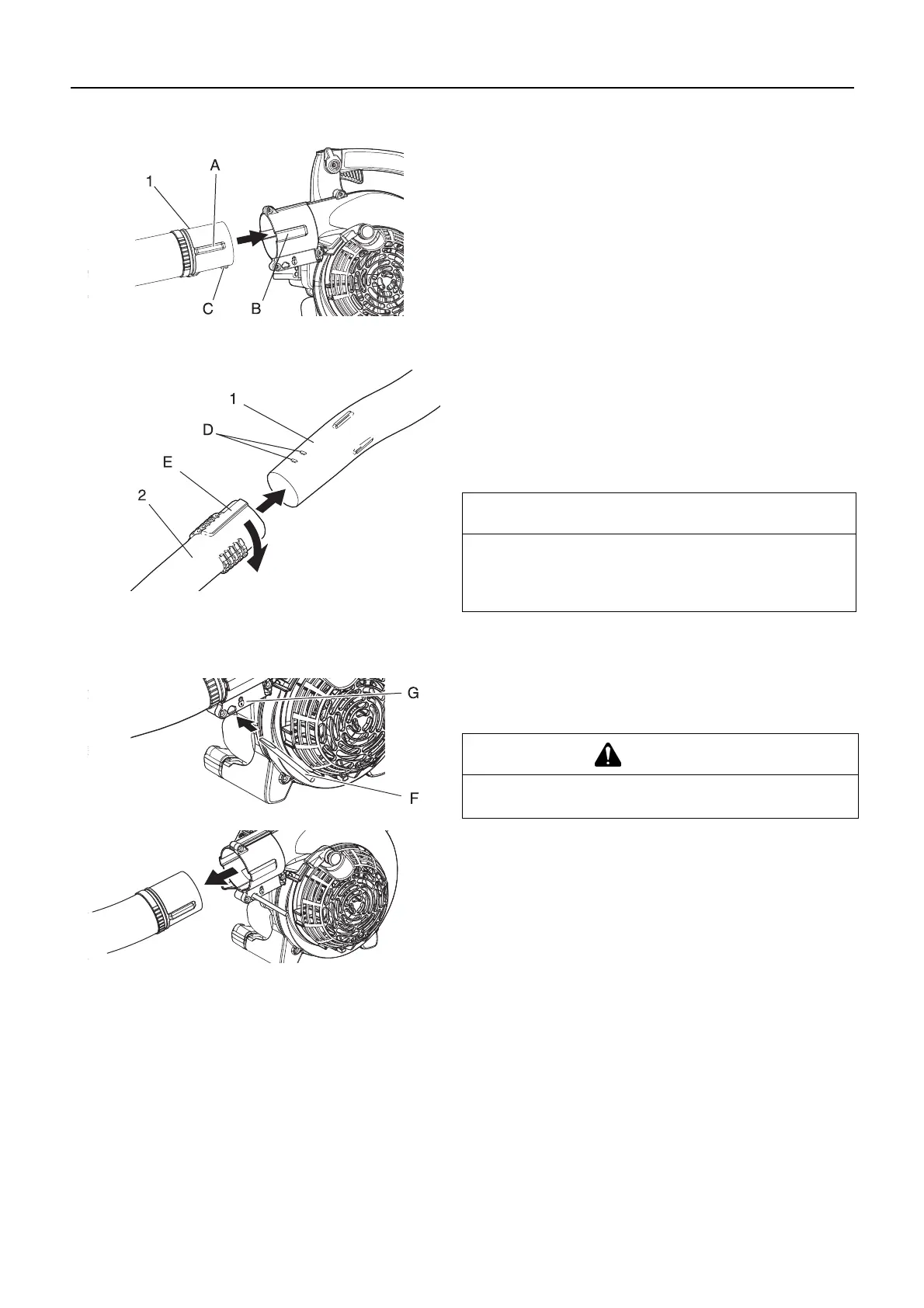

1. Stand unit upright on blower base.
2. Align locking ribs (A) on the blower pipe with recesses (B) in
fan case. Assure short locking rib (C) faces downward. Slide
the blower pipe into fan case until a clicking sound is heard.
3. Align tabs (D) with grooves (E) and slide the flat straight noz-
zle over the blower pipe until there is light resistance. Do not
force connection.
4. Hold the blower pipe, and turn the flat straight nozzle clock-
wise, engaging positive locking channels until connection is
firm. Do not force connection.
Remove blower pipes/vacuum elbow
1. Insert screwdriver (F) into hole located near lock symbol (G)
to release pipe lock.
2. Pull pipes out of fan cace.
3. Remove screwdriver.
1. Blower pipe
1. Blower pipe 2. Flat straight nozzle
NOTE
Blower use will eventually loosen pipe connections. Exclusive
positive locking system allows pipes to be tightened. If loosen-
ing occurs, remove the flat straight nozzle and install according
to instructions 3 & 4.
CAUTION
Screwdriver tip may stick out opposite side of locking
hole.
