Power edger AttAchment
oPerAtor's mAnuAl
11

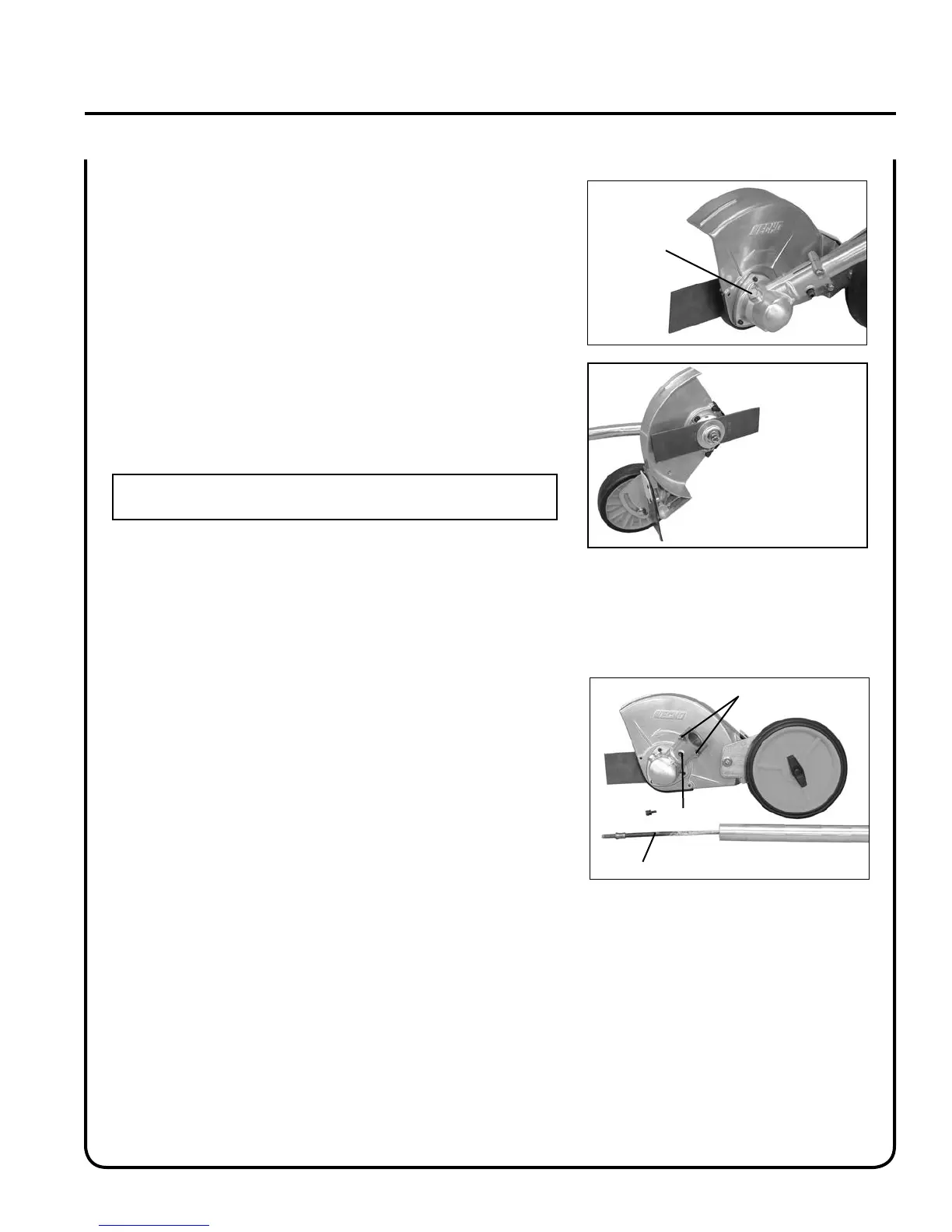

5. Clean all loose debris from gear box.
6. Remove plug (G) and check level of grease. Grease should ll gear
case to bottom of grease plug hole.
7. Add grease if necessary using manual grease gun or squeeze-type
tube. Do not use high pressure grease gun. DO NOT over-ll.
8. Install inner blade adapter (B) onto PTO shaft (C).
9. Install and center new blade (F) onto inner adapter (B).
10. Install outer adapter (E) and nut (D). Tighten nut (D) rmly,
counterclockwise (CCW).
IMPORTANT
Never reuse old split pin.
11. Install new split pin (A) to secure nut.
G
Drive Shaft (Lower)
1. Loosen two (2) screws (A) and remove center locating screw (B).
Pull gear box and shield from drive shaft housing.
2. Pull exible cable (C) from the drive shaft housing, wipe clean and
re-coat with a thin coating [15 ml (1/2 oz.)] of grease.
3. Slide the exible cable (C) back in the drive housing. DO NOT get
dirt on the ex cable.
4. Install the gear housing and shield assembly.
A
B
C
