Power edger AttAchment
oPerAtor's mAnuAl
7

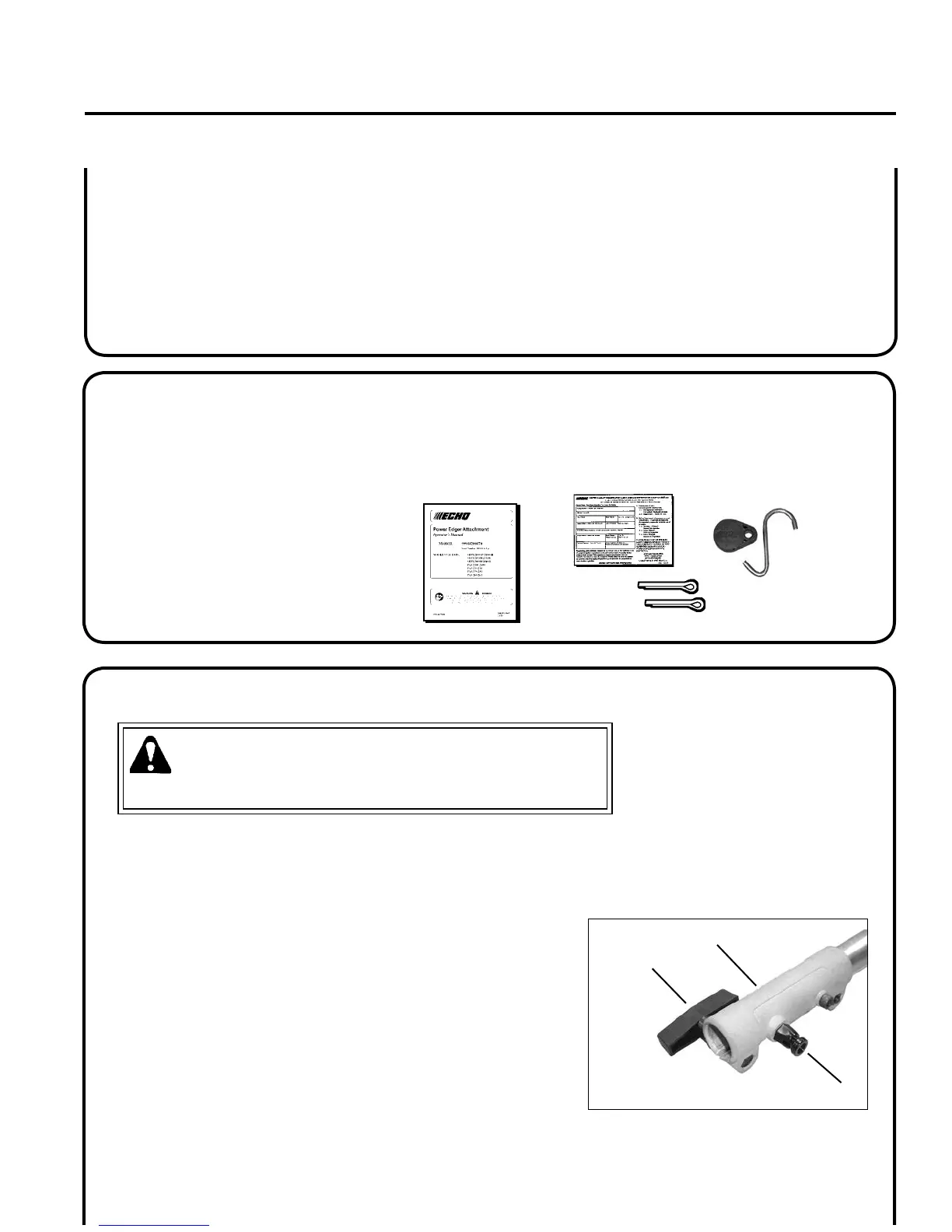

ConTenTs
The ECHO product you purchased has been factory pre-assembled for your convenience.
After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing
parts. Use the contents list to check for missing parts.
___ 1 - Power Edger Attachment
___ 1 - Operators Manual
___ 1 - Warranty Registration Card
___ 2 - Split Pins
___ 1 - Storage Hook Assembly
___ Assembly Tool (s)
1. BLADE - Rotates to provide cutting action.
2. DEBRIS SHIELD/FLAP - Mounted over the cutting attachment. Helps protect operator by deecting debris
produced during the edging operation.
3. DRIVE SHAFT ASSEMBLY - Contains a specially designed liner and the exible drive shaft.
4. WHEEL - Adjustable up/down, sets depth of blade.
assembly
A
B
D
Parts Required: PAS or SRM-SB Power Head w/Shaft & Coupling.
1. Set Power Head/Shaft Assembly on a level surface.
2. Pull locator pin (A) out, and turn counter-clockwise 1/4 turn to
lock-out position.
3. Remove vinyl cap from attachment drive shaft.
4. Remove cardboard spacer, if necessary.
5. Carefully t attachment drive shaft assembly into coupler (B) to de-
cal assembly line (C), making sure that the inner lower drive shaft
engages into the square upper drive shaft socket.
power head shafT/lower shafT assembly
WARNING
Do not perform maintenance or assembly procedures with engine running.
To Next Page
