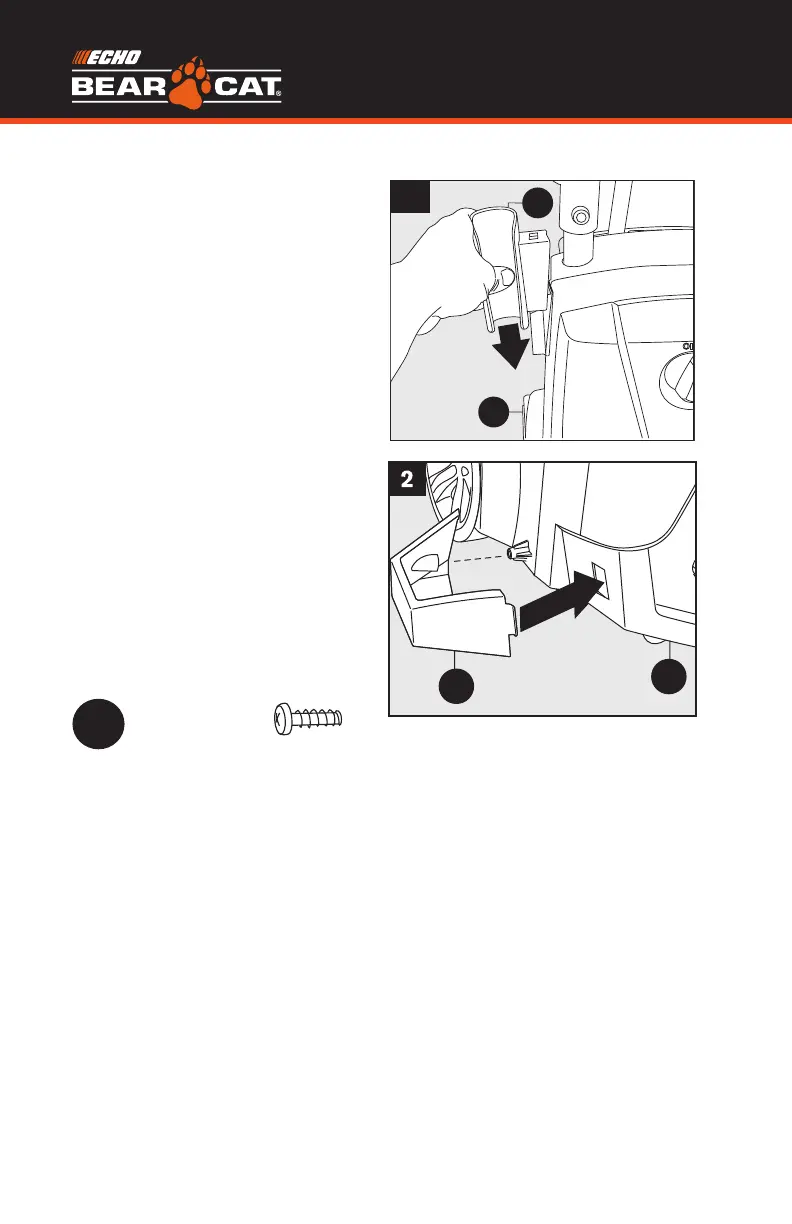

ASSEmbLy
Power Unit Assembly
Slide the spray gun holster (K) onto
left side, when facing the unit of
power washer unit (A).
Note: When placing the gun with
the lance attached, the nozzle will
rest in this tray.
Slip tab into slot and screw the
nozzle tray (J) on bottom left, when
facing the unit, of power washer
unit (A). Secure with screw (AA).
Note: DO NOT use a power screw-
driver. When the screw is completely
tight, give a small final clockwise
twist of the screwdriver.
DO NOT overtighten.
Hardware Used:
1
K
A
Screw 1X
AA
A
J
