FEATURES
Product Specifications
Motor ...................................................................................................................................... 58 Volt DC
Bar Length .......................................................................................................................................16 in.
Chain oil tank capacity
.....................................................................................................................6 oz.
NOTE: This saw was designed for occasional light duty use and has some limitations as to what it can
cut.

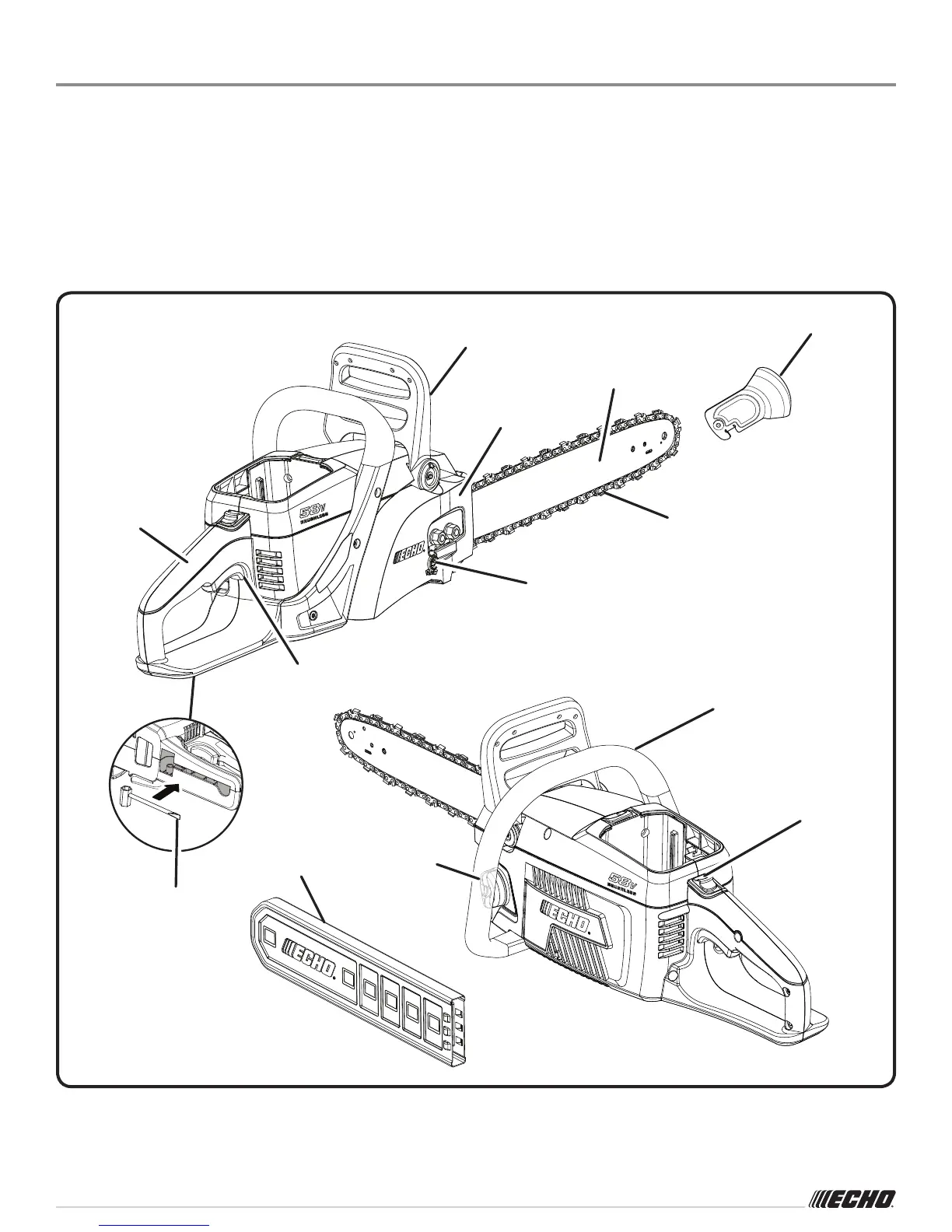

Fig. 4
CHAIN OIL
TANK CAP
REAR
HANDLE
FRONT HANDLE
GUIDE
BAR
LOW KICKBACK
CHAIN
CHAIN
TENSIONING
SCREW
CHAIN BRAKE / FRONT
HAND GUARD
CHAIN
COVER
SWITCH TRIGGER
SCABBARD
COMBINATION
WRENCH
LOCK-OUT
BUTTON
