SERVICE INFORMATION
CS-260TES
CS-270WES
9

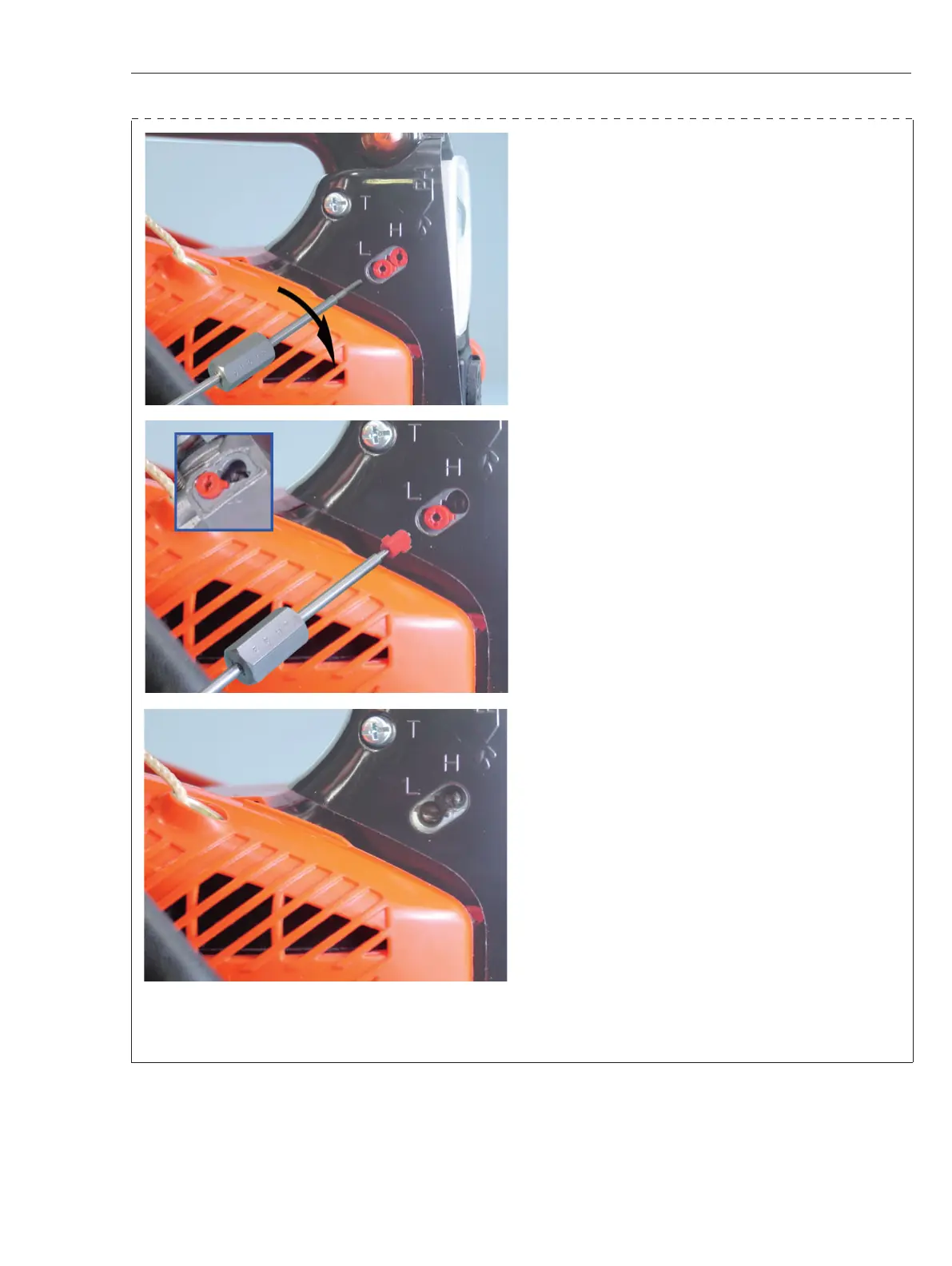

3. Remove the limiter cap tool from the limiter cap
turning the tool clockwise as the limiter cap is re-
mained there.
NOTE :
If the limiter cap were pulled out complete-
ly, there is a chance that the other mixture needle
would turn and limiter cap tab would misalign with
locating slot when screwing the limiter cap tool into
centre hole of the other limiter cap.
4. Screw thread of limiter cap tool 91019 into other
centre hole of the other limiter cap anticlockwise
until the limiter cap is come out from the mixture
needle completely. Remove the limiter cap from
limiter cap tool turning clockwise. Screw thread of
limiter cap tool 91019 into centre hole of previous
limiter cap to pull out completely.
5. Turn L and H mixture needle clockwise until
lightly seated, and then turn both mixture needles
anticlockwise following turns.
L mixture needle : 1 5/8, H mixture needle : 1 7/8
NOTE :
If needles are forced during seating, dam-
age to carburettor may occur.
6. CS-260TES : Remove cleaner lid and cleaner
case to confi rm throttle plate on carburettor visu-
ally. CS-270WES : Remove cleaner lid to confi rm
throttle plate on carburettor visually.
7. Turn idle adjust screw anticlockwise and set
the screw until the tip to just contact throttle plate.
Then turn idle adjust screw 2 1/8 turns clockwise.
Install all removed parts.
2-2 Presetting idle adjust screw, L mixture needle and H mixture needle (continued)
To Next Page
