CS-450P MAINTENANCE
© 01/2014 ECHO Inc.
X7503197605 33

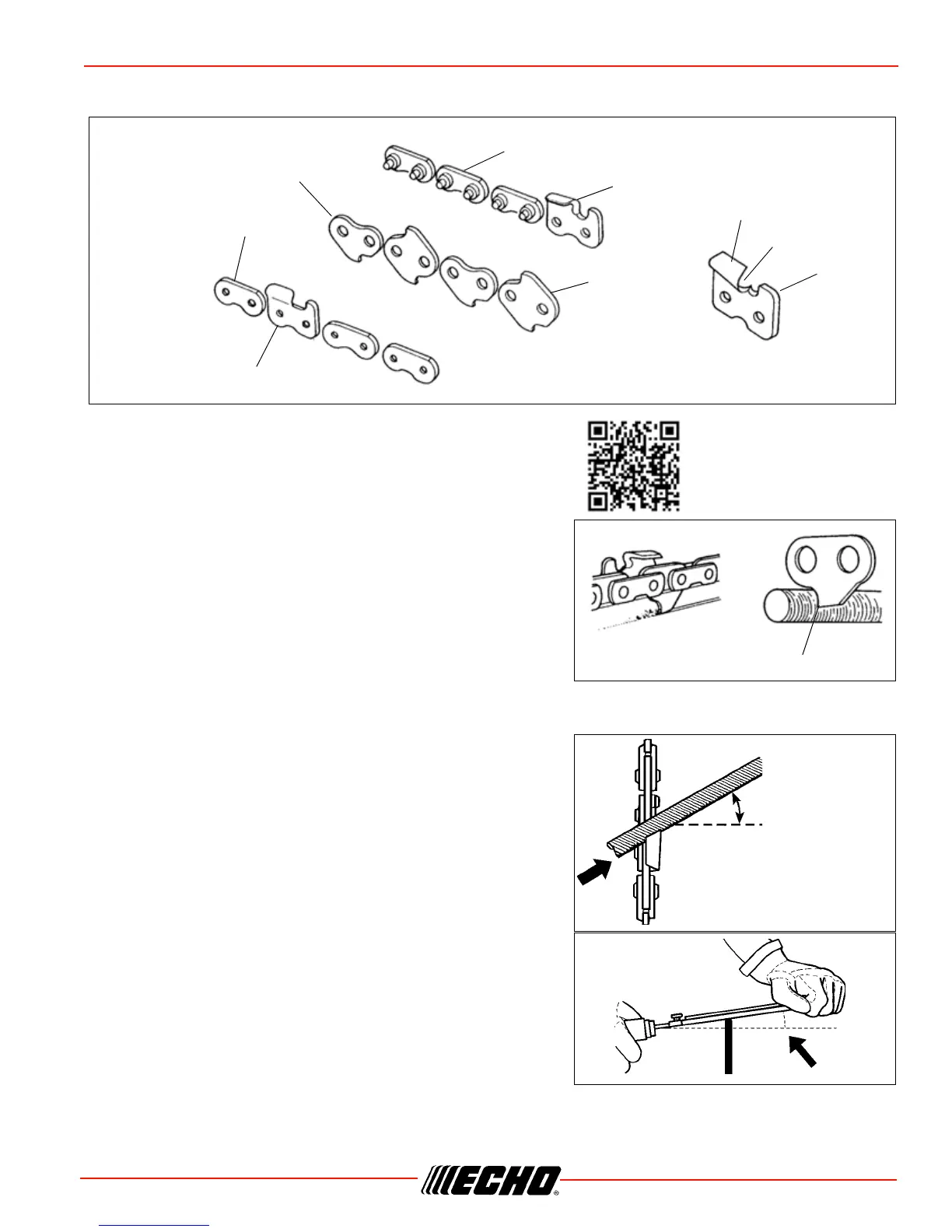

Setting The Saw Chain
Important points for proper maintenance of saw chain:
• Keep the cutters sharp at all times.
• Keep the left and the right cutters properly aligned.
• Note that blunt or irregular cutters will result in poor cutting
performance, increased vibration of chains and premature
breakage of the saw chain.
• Drive link serves to remove sawdust from the groove of the
guide bar. Keep the lower edge of the drive link sharp where
indicated.
Setting Saw Chain
• For setting saw chain, round file 33SL : 4.5 mm (1/8) dia.
20BPX, 20LPX, 95VP : 4.8 mm (3/16) dia. and flat file are
used.
• Push file as shown.
• To keep correct position and correct angle, use a file holder.
• Hold the file tipped 10° upward.
Right hand cutter
Left hand cutter
Preset tie strap
Top plate
Side plate
Depth gauge
Drive link
Tie strap
Guard link
For more information
scan this QR code.
20LPX, 33SL: 25°
Keep this angle
20BPX, 95VP: 30°
To Next Page
