SERVICE INFORMATION
CS-500ES
6
Ignition
Air Gap Gauge
#.014 = .35mm
P/N 91004
03D
233$0$
3(7
,17(*5$7(',*1,7,21$1$/<=(5
E
'
PET-304

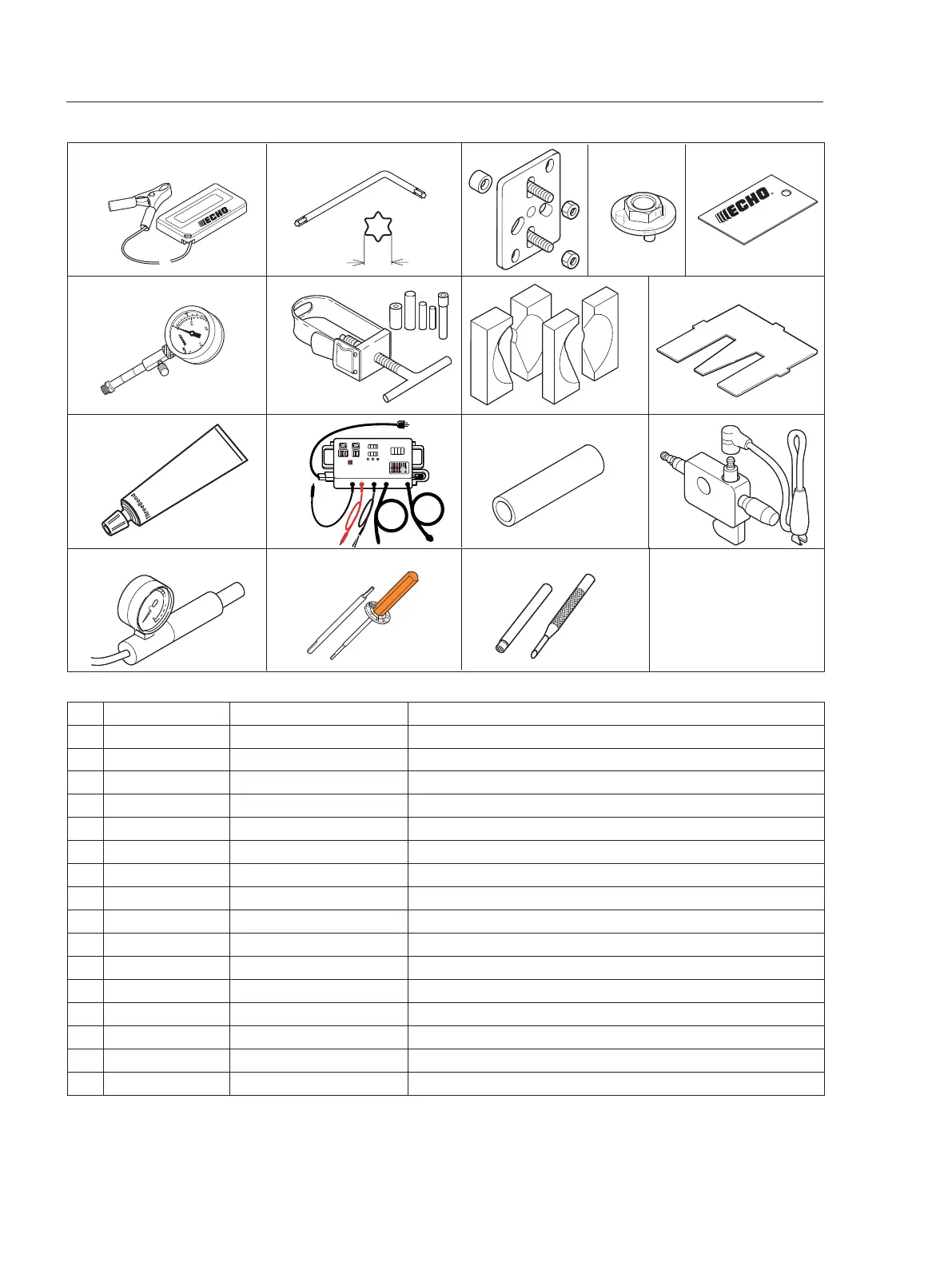

1-6 Special tools
1
34
5
2
6
9
10 11 1312
14
8
7
16
15
Key Part Number Description Reference
1 G310-000050 Tachometer PET-304 Measuring engine speed
2 X605-000050 Torx L wrench Removing and installing bolt
3 897501-03938 Puller Removing magneto rotor
4 897505-16133 Clutch tool Removing and assembling clutch assembly
5 91004 Module air gap gauge Adjusting pole shoe air gaps
6 91037 Compression gauge Measuring cylinder compression
7 897702-30131 Piston pin tool Removing and installing piston pin
8 897701-06030 Bearing wedge Removing and crankshaft ball bearings
9 897563-19830 Metering lever gauge Measuring metering lever height on carburettor
10 X686-000000 ThreeBond 1207D Applying crankcase seam
11 900300
Ignition Analyzer : PET-9000
Measuring Ignition timing, Primary/Secondary voltage
12 897726-21430 Oil seal tool Installing oil seals and clutch plate
13 897800-79931 Spark tester Checking ignition system
14 897803-30133 Pressure tester Testing carburettor and crankcase leakage
15 Y089-000090 D-shaped tool Adjusting mixture needle
16 500-500 Welch plug tool Removing and installing welch plug tool
To Next Page
