Echo CS-680 User Manual

17
CS-680

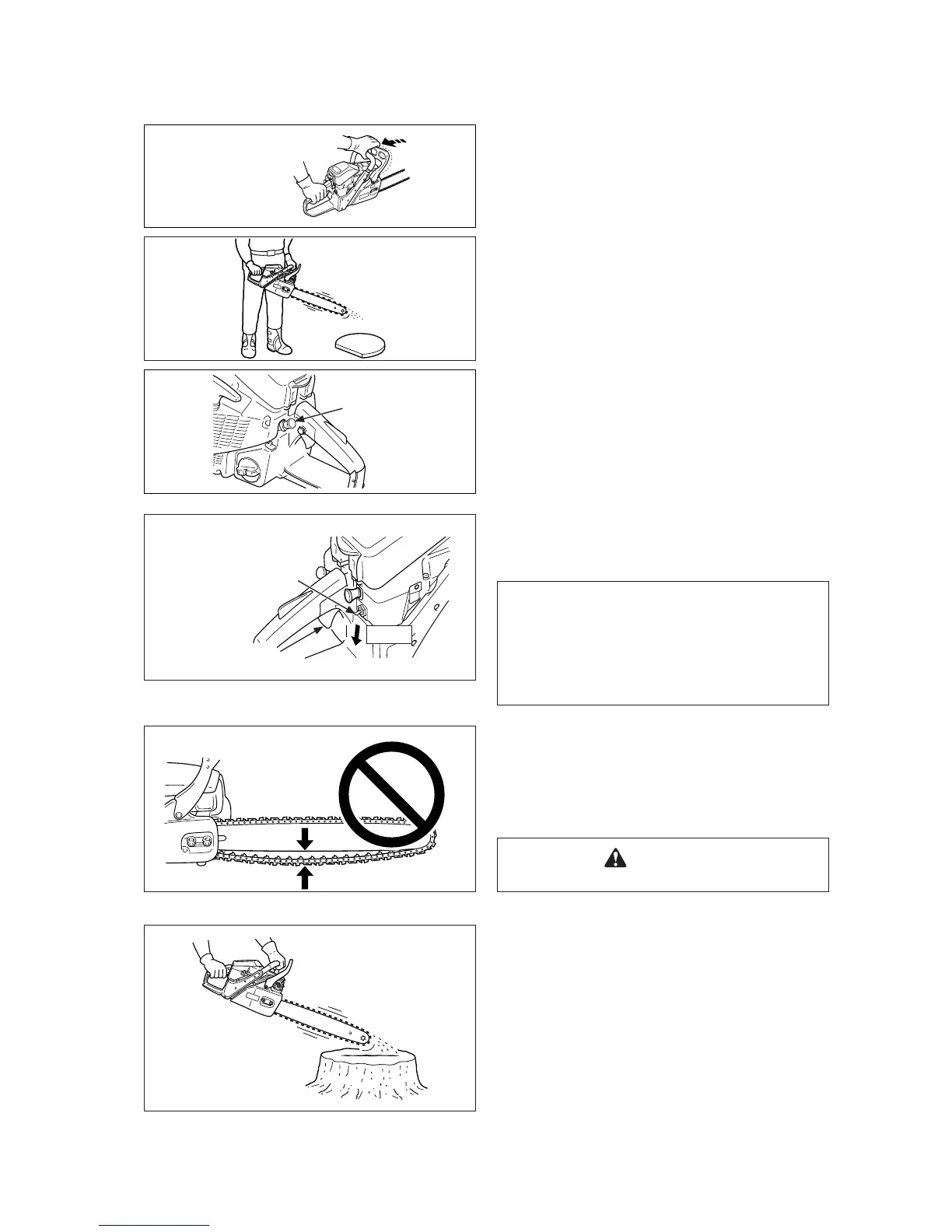

RUNNING
• Whenenginestarts,keepidlingforafew
minutes.
• Setthebrakeleverintheunlockedposition
before starting to cut.
• Pullthrottletriggergraduallyandincrease
revolution of the engine.
• Thechainstartsrunningwhentheengine
reaches 3800 r/min approximately.
• Conrmproperaccelerationandlubricationof
chain and bar.
• Giveseveralstrokestomanualoilerbuttonto
confirm extra lubrication.
• Donotruntheengineathighspeed
unnecessarily.
• Besurethatsawchainstopsmovingwhen
throttle trigger is released.
STOPPING
• Releasethrottletriggerandmoveignitionswitch
down to STOP position.
NOTICE
If engine does not stop, pull choke control knob
out fully to stop engine.
Return the unit to your authorized ECHO dealer
to check and repair stop switch before starting
the engine again.
CHECKING CHAIN TENSION
• Chaintensionshouldbecheckedfrequently
during work and corrected as necessary.
• Tensionthechainastightaspossible,butsoit
can still be pulled easily along the bar by hand.
CAUTION
Do not operate with a loose chain.
CHAIN LUBRICATION TEST
Hold the chain just above a dry surface and open
the throttle to half speed for 30 seconds.
A thin line of “thrown” oil should be seen on the
dry surface.
Ignition switch
Throttle trigger
STOP
Unlock chain brake
Manual oiler
