End of the guide bar may be placed at the
height of about 35 cm (14 in.).
35 cm
(14 in.)

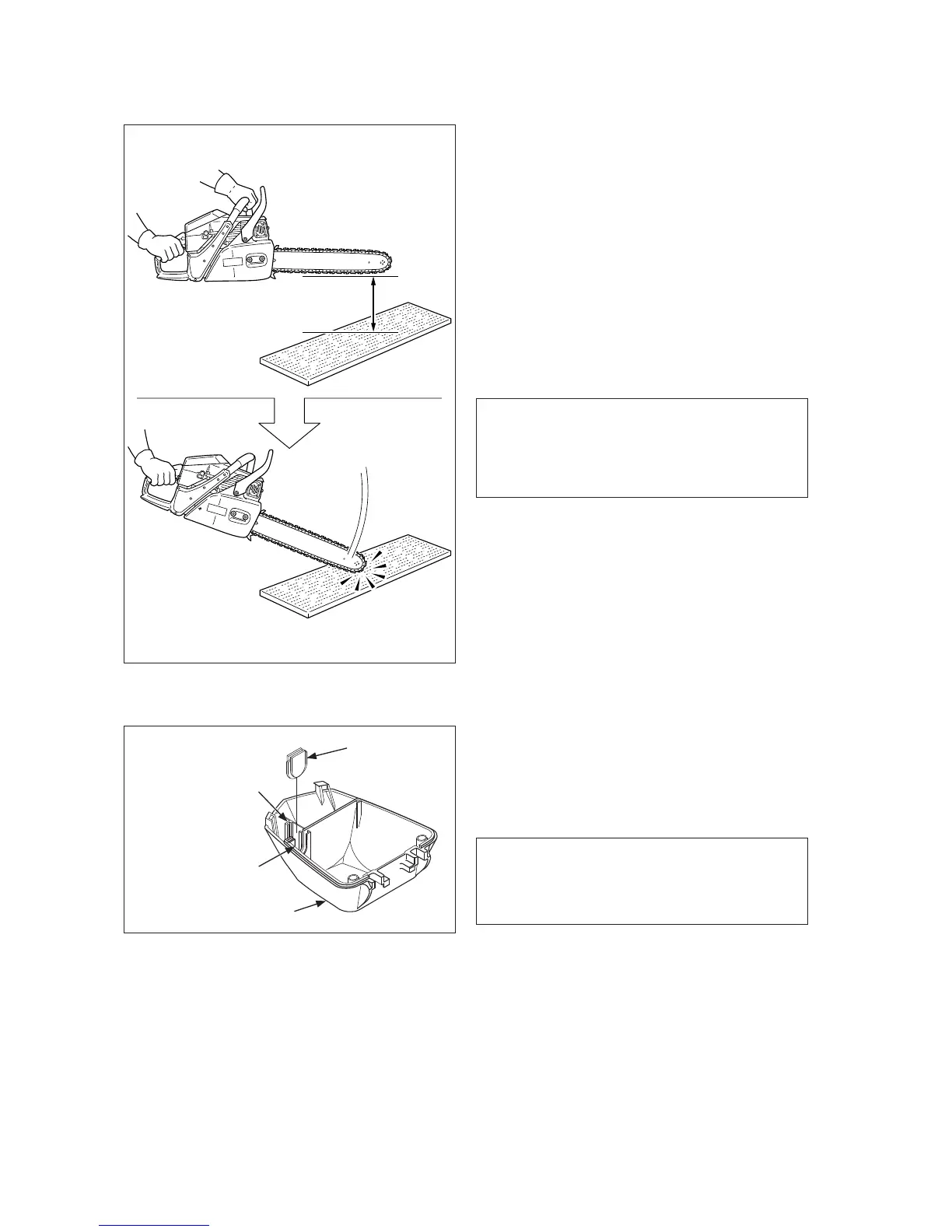

AUTOMATIC CHAIN BRAKE
Kickback produced from the tip of the guide bar will
trip the automatic chain brake. To make sure that
the automatic chain brake operates properly, follow
these steps:
1. Stop the engine.
2. Hold the saw with the guide bar approximately
35 cm (14 in.) above a wooden surface. Right
hand should hold the rear handle, and left hand
should hold the front handle.
3. Release the front handle and drop the end of the
guide bar against the wooden surface.
4. The impact should lock the chain brake.
IMPORTANT
When checking the operation of the automatic
chain brake, use a soft surface substance like
wood to provide the impact so the chain is not
damaged.
WINTER OPERATION
Use the winter plug to prevent carburetor trouble in
winter.
• Removeaircleanercover.
Remove plug from warm weather position, and
install into cold weather “storage” position.
NOTICE
For operation at normal temperature, return the
plug to its original place. (5°C, 41°F)
It causes over heating of the engine.
Rear handle should be gripped lightly with the
right hand.
Air cleaner cover
Plug
Warm weather position
Cold weather
“storage”position

Echo CS-680 Specifications

General

Chain Pitch	3/8 in
Bar Length	20 in
Fuel Capacity	0.82 l
Oil Capacity	0.36 l
Fuel Tank Capacity	810 ml (27.4 fl oz)
Oil Tank Capacity	0.36 l
