HC-2420/3020 ASSEMBLY
X7702242900 15
© 1/2015 ECHO Inc.

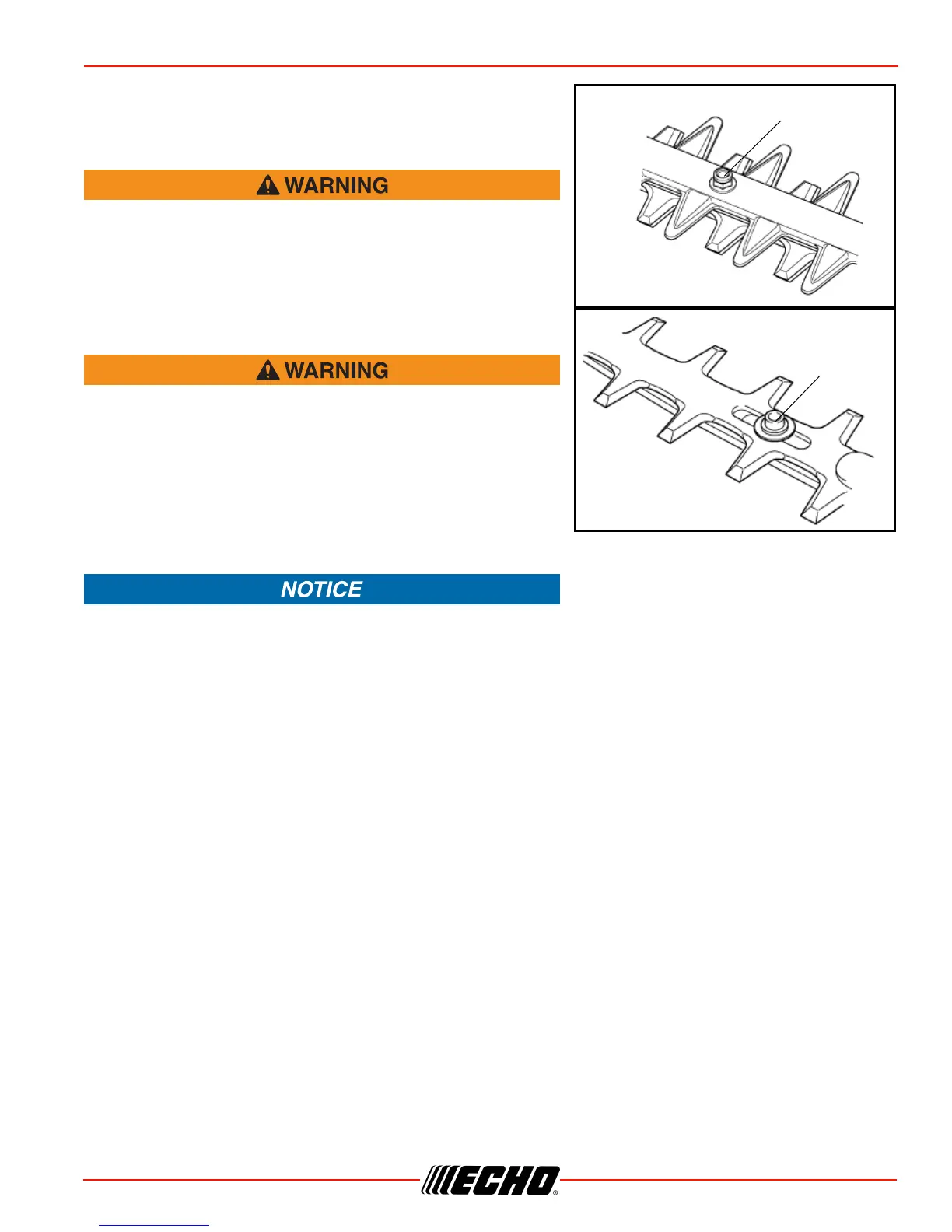

Install Blade Guard
1. Move stop switch to STOP position.
2. Disconnect spark plug wire.
Hedge Trimmer blades are very sharp. Touching them may
lead to severe personal injury. Use a socket and extension
when adjusting blade bolts or blade lock nuts in order to
keep hands at a safe distance from sharp blades.
3. Remove correct number of lock nuts (A) necessary to install
blade guard. Assure blade bolts (B) are tightened securely.
Blade guard must be installed as close as possible to
support handle.
4. Align holes in blade guard with blade bolts, then install blade
guard.
5. Secure blade guard with new lock nuts (A).
Note: Use new lock nuts every time blade guard is installed or
removed.
If blade guard is damaged or show signs of wear, replace it.
