OPERATION HC-2420/3020
Rotating Handle Operation
The throttle handle is adjustable for operator comfort at all angles of operation.
Stop engine before rotating throttle handle, otherwise serious personal injury may result.
Changing throttle handle angle may change exhaust direction. Use a grip and operating position
that blows exhaust away from you.

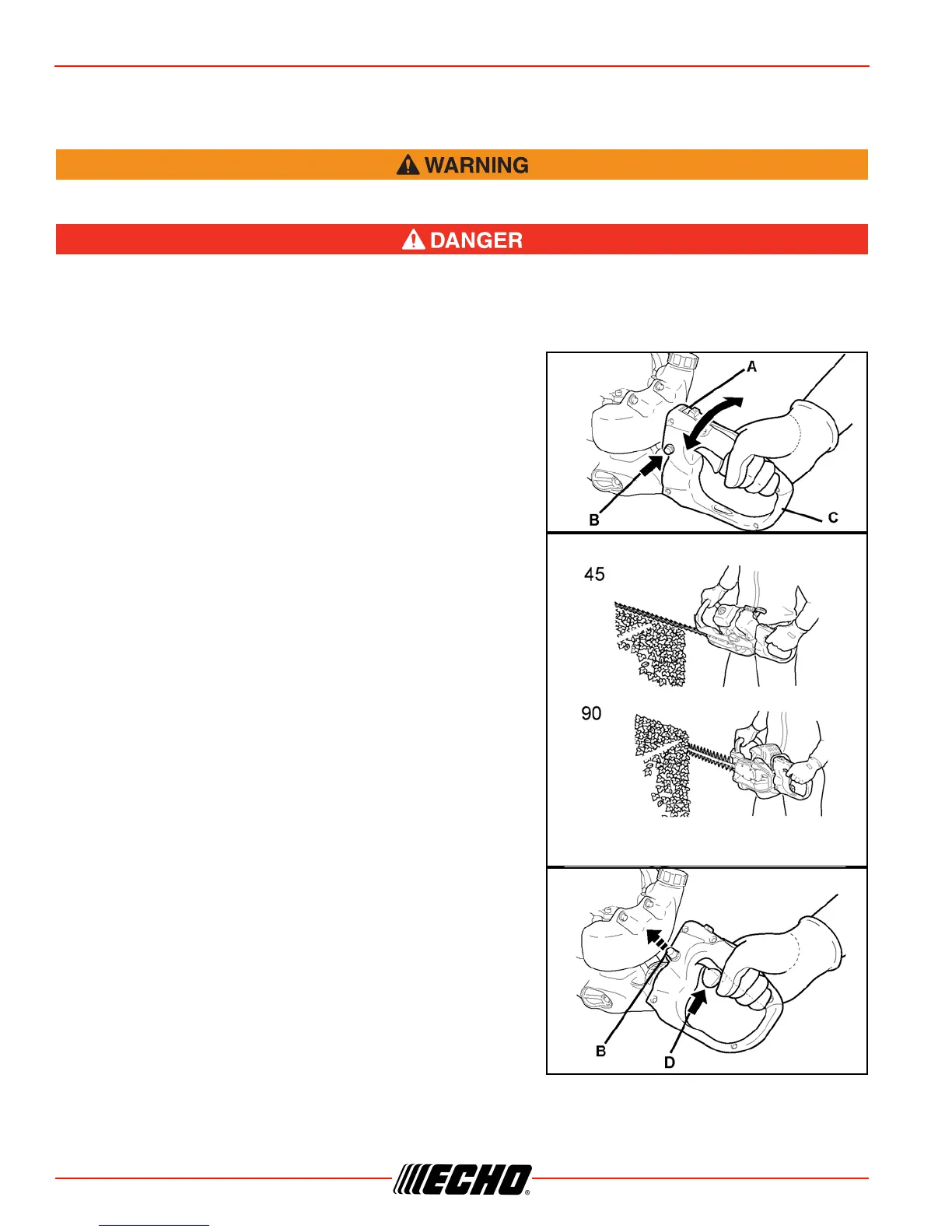

Rotating Throttle Handle
1. Move stop switch (A) to STOP position.
2. Press handle rotation release button (B) to unlock throttle
handle rotation.
Note: Throttle trigger must be at idle position in order to press
the rotation lock button.
3. Rotate throttle handle (C) right or left to the 45° or 90°
detent setting. A slight “CLICK” will be heard as the detent is
engaged.
4. Grip the throttle handle. Press the throttle lockout lever down
with palm of hand and squeeze throttle trigger (D) to reset
rotation release button (B), and lock handle in position.
Note: If the throttle trigger does not operate after rotating throttle
handle, move throttle handle slightly left and right until
detent engages and throttle trigger operates normally.
