OPERATION HCA-2620
20 X7502342200
© 5/2017 ECHO Inc.
Hedge Trimmer blades are sharp. Always wear gloves when
adjusting cutting assembly.
DO NOT stand hedge trimmer on end when adjusting cutting
angle, otherwise serious injury may result.

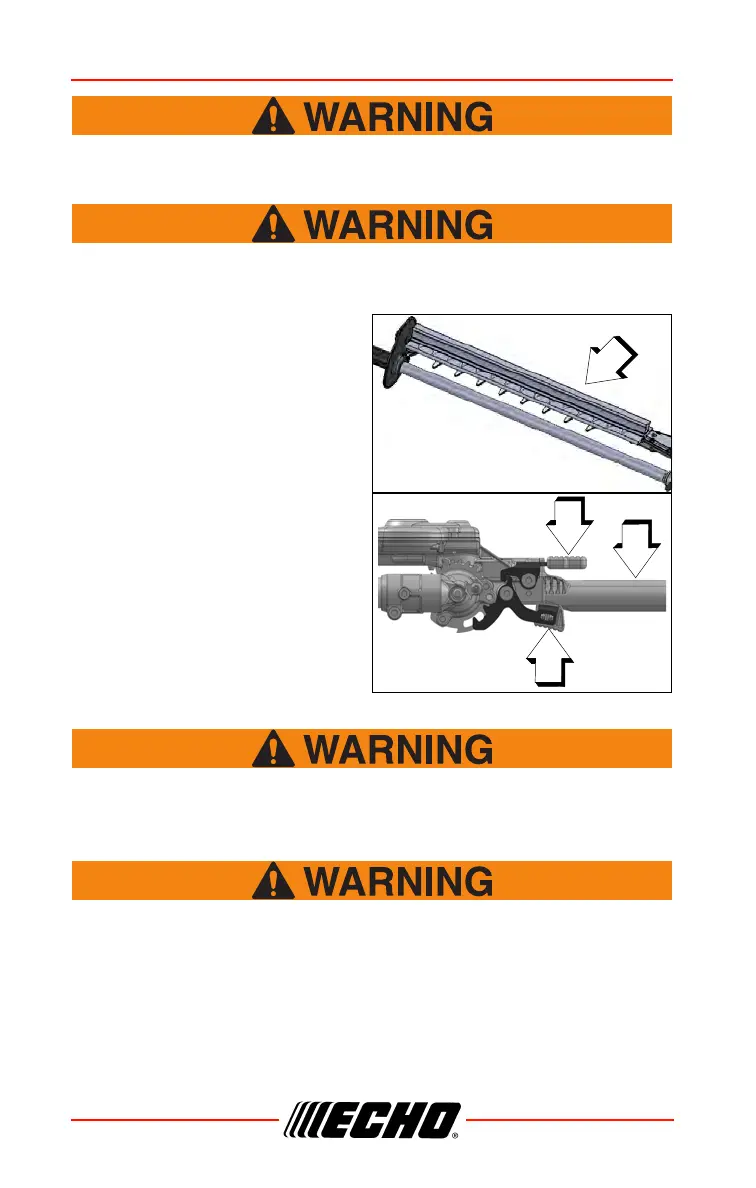

1. Place unit on a flat surface with
blade cover (A) facing up.
Assure stop switch is in the
“STOP” position.
2. Hold blade adjustment handle
(B) and compress blade lock
levers (C) and (D) together.
Rotate blade to desired
position. Release levers to lock
blade.
Gear case assembly becomes HOT during use. Always grip
assembly at blade-adjustment handle when making cutting
angle adjustments, otherwise serious injury may result.
Always install the blade cover and place the cutter assembly in
the folded / locked position for storage or transportation.
