HCA-2620 MAINTENANCE
X7502342200 35
© 5/2017 ECHO Inc.
ENGLISH

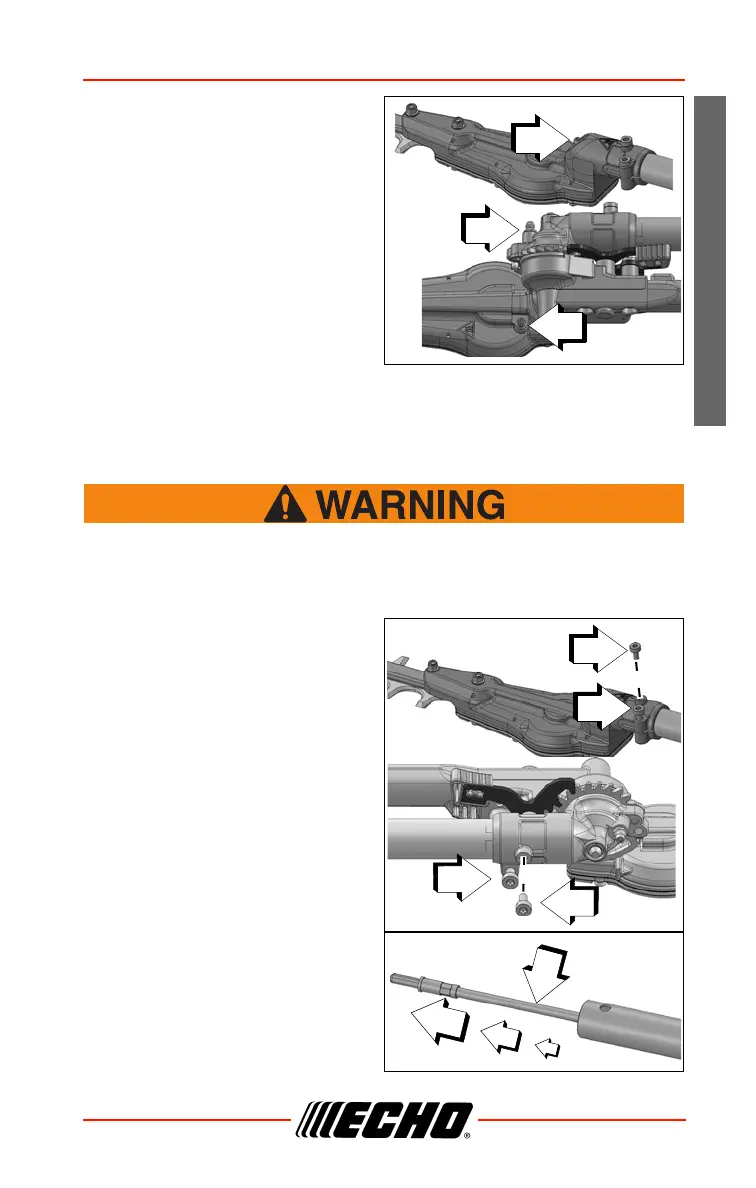

2. Carefully pump grease into
fitting (A). DO NOT force
grease. Too much pressure will
force grease past seals and
cause damage. Apply 1 - 2
pumps of grease every 15 - 25
hours of operation.
3. Wipe excess grease from
around grease fitting.
Drive Shaft Assembly
Level 1.
Hedge Trimmer blades are very sharp. Touching them may lead
to severe personal injury. Avoid touching blades whenever
possible, and always wear gloves to protect hands.
1. Remove gear housing locating
screw (A) and loosen clamping
screw (B). Remove the gear
housing assembly from the
drive shaft housing.
2. Pull the drive shaft (C) from the
housing, wipe clean, then apply
15 ml (0.5 oz.) of grease.
3. Slide the drive shaft back in the
drive housing being careful not
to get dirt on the flex shaft.
Parts Required: Lithium based grease.
