PRO ATTACHMENT SERIES
TM
OPERATOR'S MANUAL
9
CONTENTS

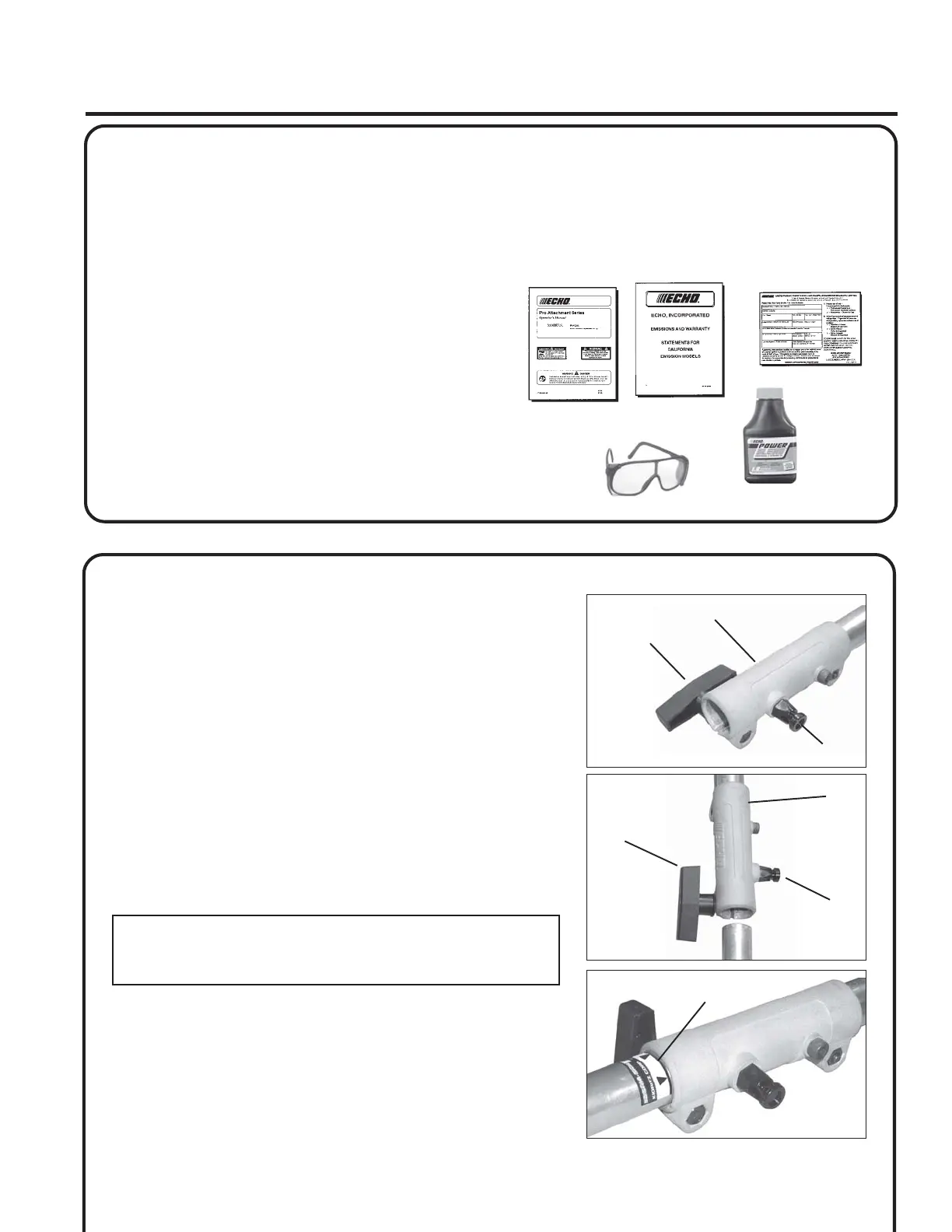

The ECHO product you purchased has been factory pre-assembled for your convenience. Due to packaging restrictions,
other assembly may be necessary.
After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing
parts. Use the contents list to check for missing parts.
1 - Power Head w / Upper Drive Shaft Assembly
1 - Plastic Bag (co-pack)
- 1, Operator's Manual
- 1, Warranty Registration Card
- 1, ECHO Emissions and Warranty Statement
- 1, Safety Glasses
- 1, Echo Power Blend
TM
- 1, Barrier Bar
ASSEMBLY
ATTACHMENT
SHAFT ASSEMBLY
Tools Required: None
Parts Required: PAS Attachment Assembly
1. Set Power Head/Shaft Assembly on a level surface.
2. Pull locator pin (A) out, and turn counter-clockwise 1/4 turn to lock-
out position.
3. Carefully fit attachment drive shaft assembly into coupler (B) to
decal assembly line (C), making sure that the inner lower drive shaft
engages into the square upper drive shaft socket.
NOTE
Lower bearing housing and head assembly must be in line with the
engine.
4. Rotate locator pin (A) 1/4 turn clockwise to engage lower shaft
hole. Insure locator pin is fully engaged by twisting lower drive
shaft. Locator pin should snap flush in coupler. Full engagement will
prevent further shaft rotation.
5. Secure lower shaft assembly to coupler by tightening clamping
knob (D).
D
A
A
B
D
C
B
