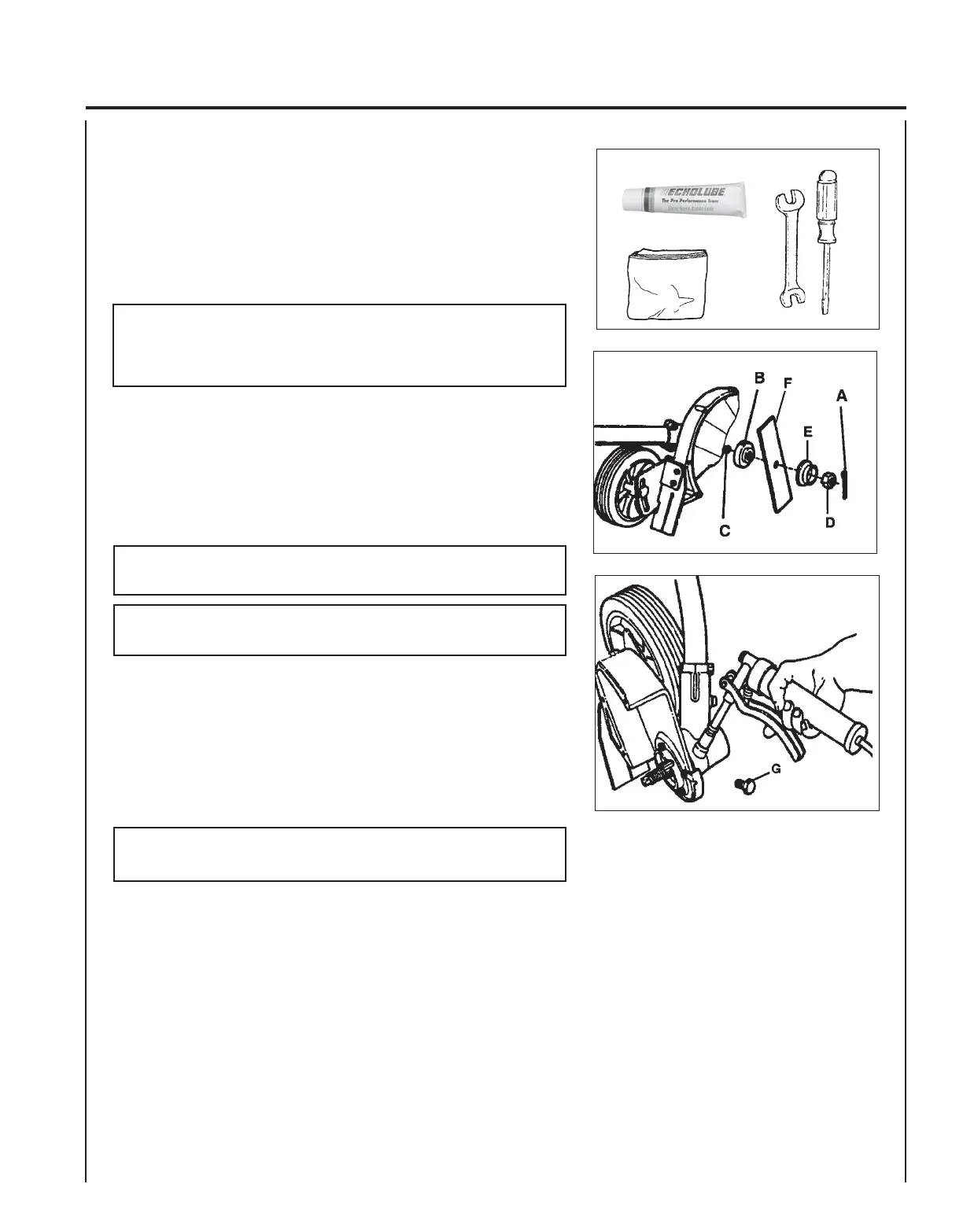

LUBRICATION
Level 1.
Tools Required: Scrench, Locking Tool, Screwdriver, 8 mm Open End
Wrench
Parts Required: Echo Lube
TM
8 oz. (P/N 91014) or Lithium Base Grease,
Blade
NOTE
Grease gear case every 50 hours of use. Replace blade when it is
worn shorter than 6". Remove blade and holders before greasing to
prevent damage to gear and bearings.
1. Shut engine off.
2. Remove split pin (A).
3. Rotate blade until holes in inner blade adapter (B) and gear box
align. Insert locking tool supplied to lock PTO shaft (C).
NOTE
Shield cover not shown for illustration clarity.
NOTE
Blade nut (D) is left hand thread.
4. Remove blade nut (D) in a clockwise direction using box wrench
supplied. Remove outer blade adapter (E), blade (F) and inner blade
adapter (B).
5. Remove plug (G) and grease gear housing. Do not over fill - grease
will emerge between PTO shaft (C) and seal when overfull. Use
good quality lithium multigrease.
NOTE
Shield cover not shown for illustration clarity.
