MAINTENANCE PE-225
36 X7732272804
© 03/21 ECHO Incorporated

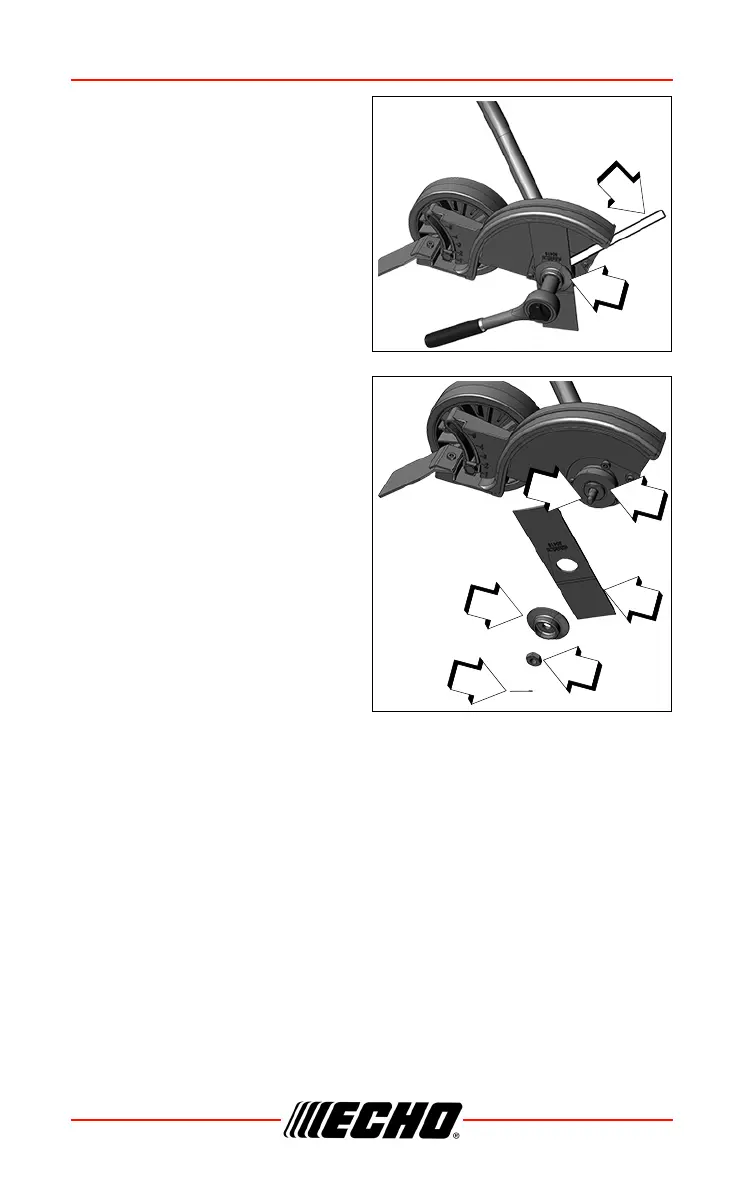

1. Remove split pin (A).
2. Align hole in inner blade
adapter (B) with notch in gear
housing, and insert locking tool
(G) to prevent PTO shaft (C)
from rotating.
3. Remove L.H. blade nut (D) by
turning clockwise. Remove
outer blade adapter (E), and
blade (F).
4. Install and center blade (F) on
inner blade adapter (B).
5. Install outer adapter (E) and nut
(D). Tighten nut (D) firmly,
turning counterclockwise.
Note: Never reuse old split pin.
6. Install new split pin (A) to
secure nut, and bend both legs
of pin counterclockwise around
PTO shaft (C).
G
B
D
E
F
B
C
A
