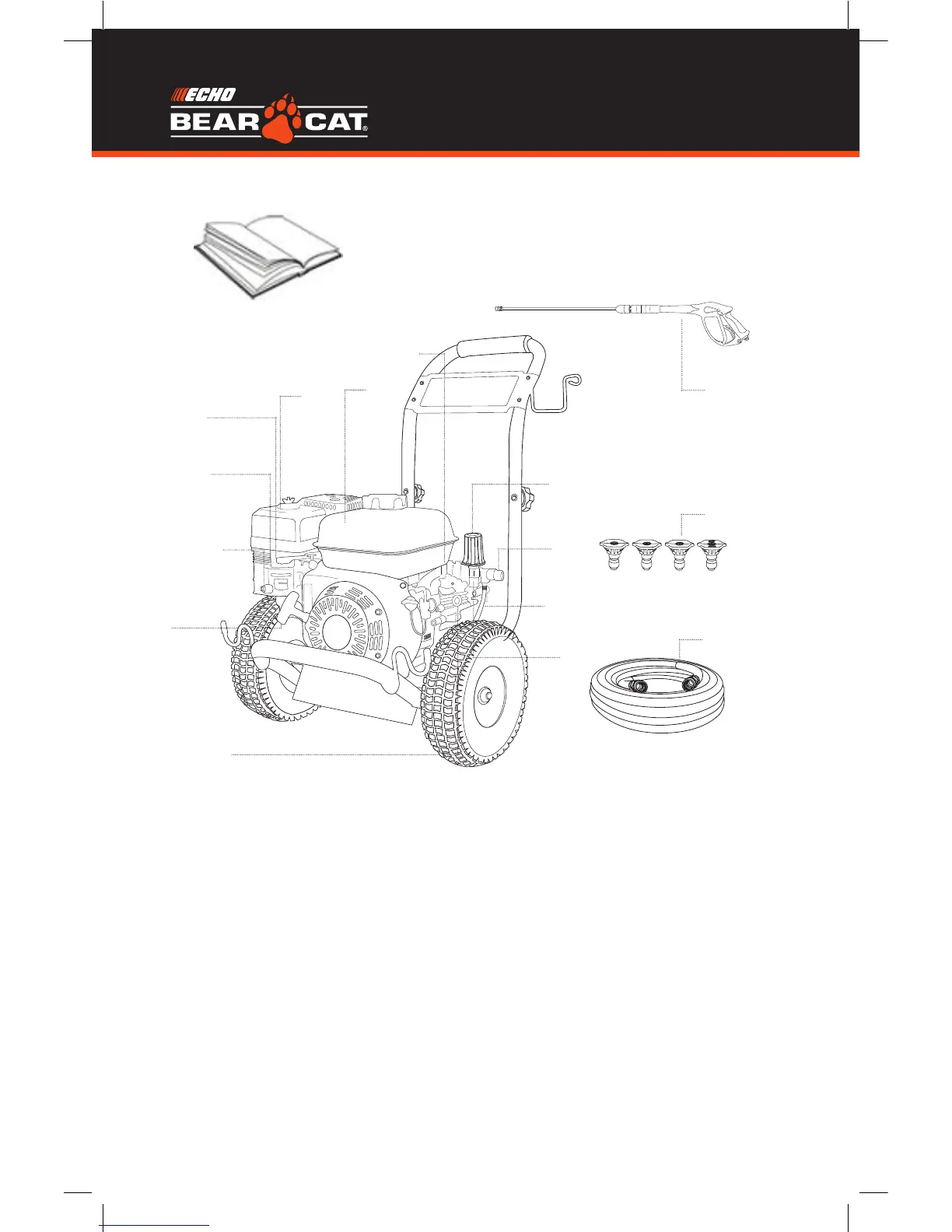

1. Spray Tips Detergent, 0°, 15°, and 40°: for various high pressure cleaning applications.
2. High Pressure Hose Connect one end to water pump and the other end to spray gun.
3. Pressure Control Knob Varies pressure of high pressure spray.
4. Water Inlet Connection for garden hose.
5. High Pressure Outlet Connection for high pressure hose.
6. Pump Develops high pressure.
7. Oil Level Indicator Level should be at halfway
8. Detergent Siphoning Tube/Filter Use to siphon pressure washer safe detergent into
the low pressure stream.
9. Choke Lever Prepares a cold engine for starting.
10. Fuel Valve Used to turn fuel supply on and off to engine.
11. Recoil Starter Used for starting the engine manually.
12. Throttle Lever Sets engine in starting mode for recoil starter.
13. Air Filter Protects engine by filtering dust and debris out of intake air.
14. Fuel Tank Fill tank with regular unleaded fuel. Always leave room for fuel expansion.
15. Spray Gun Extension with Quick Connect Nozzles Controls the application of
water onto cleaning surface with trigger device. Includes trigger lock. Allows you to
switch between five different spray tips.
1.
2.
5.
9.
8.
10.
6.
11.
7.
3.
12.
13.
14.
4.
15.
85.609.917_90400033BE_PW2700_PW3000_PW3100B_PW4000_PW4200_Echo Bearcat Gas PW Manual 2017.indd 1422/02/2017 4:12:37 PM
