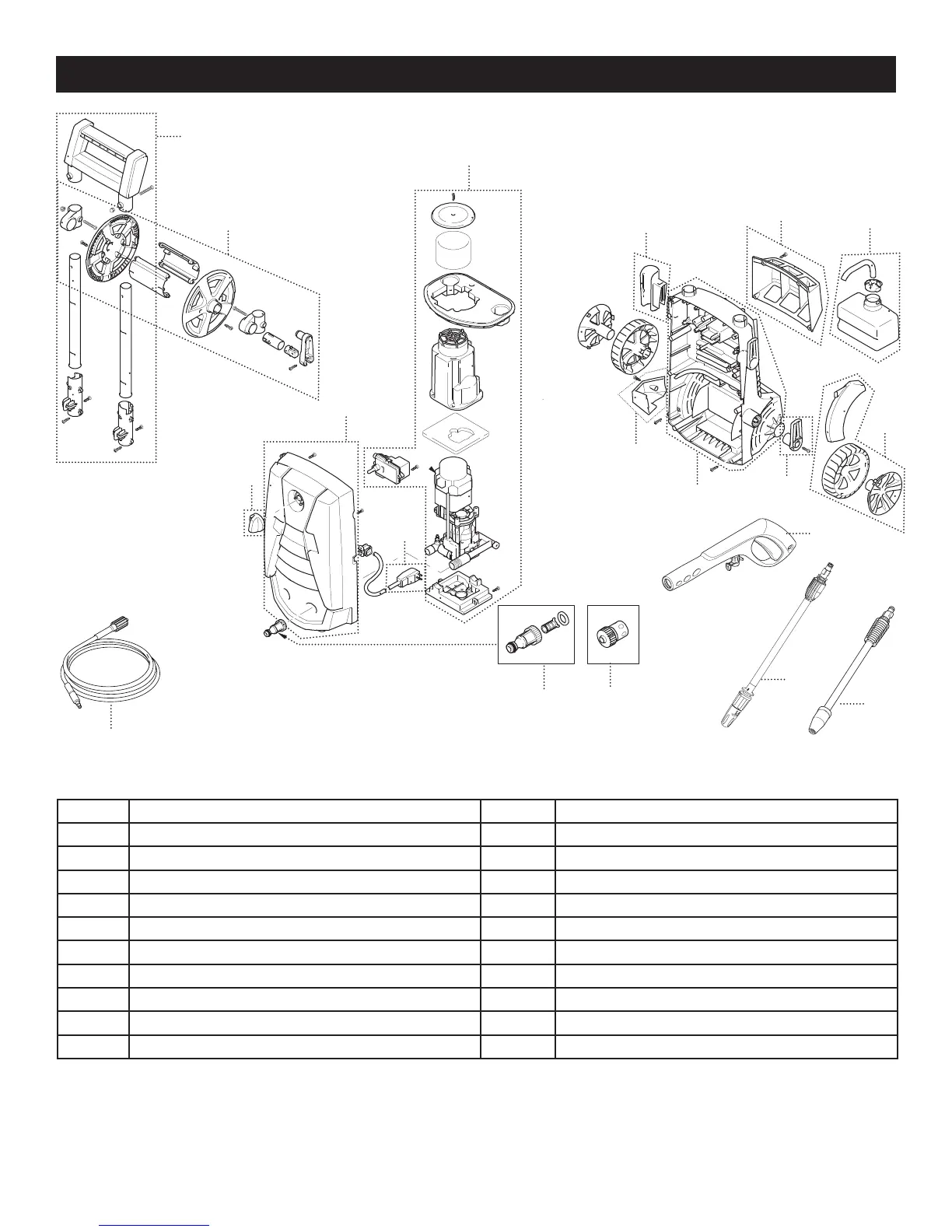

rePLacement PartS
18
REF # KIT DESCRIPTION REF # KIT DESCRIPTION
1 HANDLE ASSEMBLY 11 GARDEN HOSE ADAPTER
2 HOSE REEL ASSEMBLY 12 PRESSURE WASHER Q/C FILTER
3 WHEEL ASSEMBLY W/ GUARD 13 ON/OFF SWITCH
4 DETERGENT TANK 14 LANCE HOLDER
5 GFCI 15 NOZZLE TRAY
6 EXTENSION CORD HOOK 16 ACCESSORY BRACKET
7 HOSE, 20’ 17 REAR COVER
8 SPRAY GUN ASSEMBLY 18 PUMP MOTOR ASSEMBLY
9 HIGH/LOW LANCE/NOZZLE 19 FRONT COVER
10 TURBO LANCE/NOZZLE
1.
8.
9.
10.
2.
18.
4.
16.
14.
3.
5.
7.
12.
11.
13.
19.
6.
17.
15.
For replacement parts ordering, please visit www.echo-usa.com
