v a C u u m /s h r e d d I n g a p p l I C a T I o n

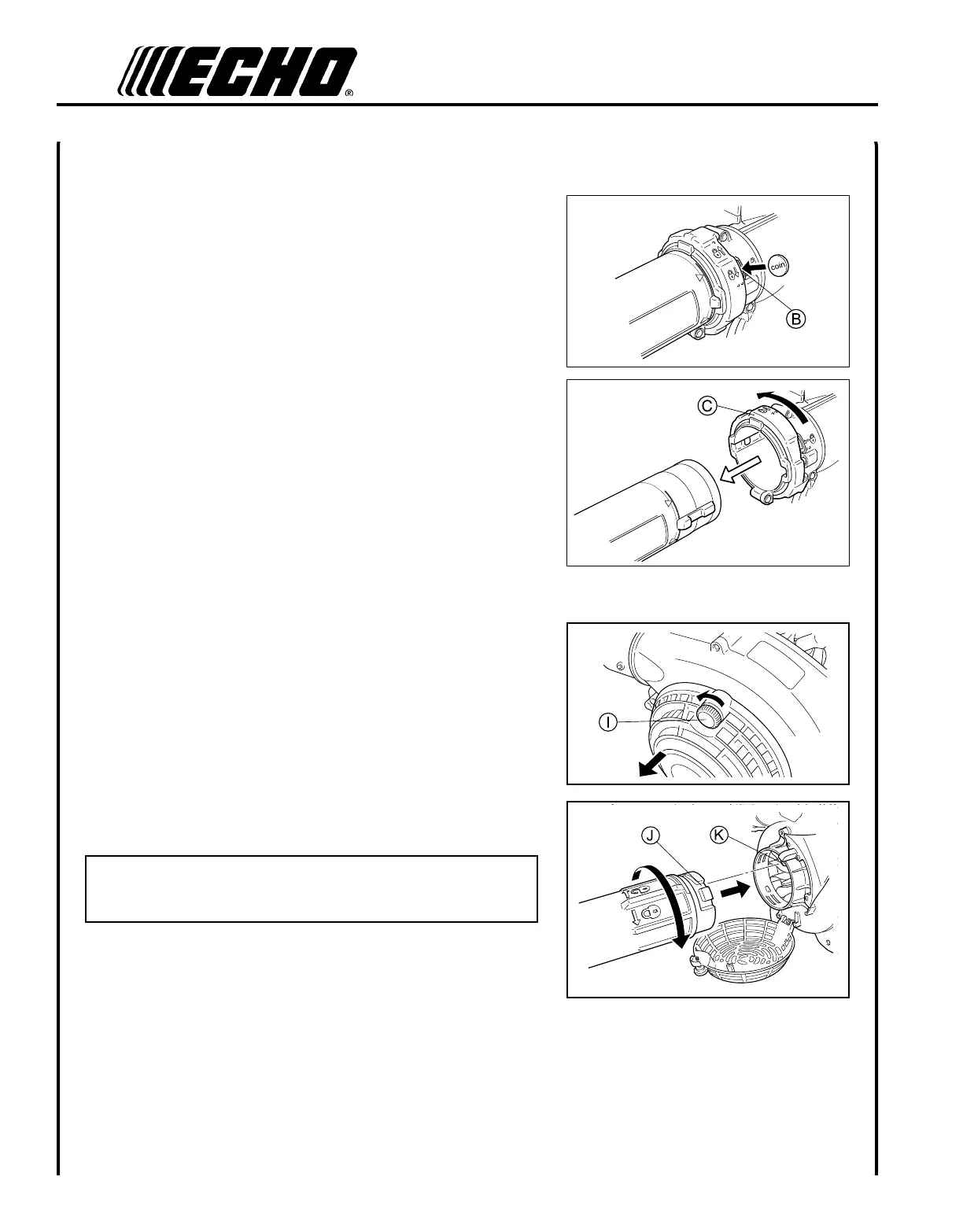

Remove Blower Pipes
1. Release locking ring (C) with a coin or screwdriver, and rotate
ring so that lock symbol (A) is at top of ring.
2. Remove pipes from locking ring.
Install Vacuum Tube
1. Turn knob (I) counter clockwise until hinged housing cover is
free to open for vacuum tube installation.
2. Opening housing cover, slide recess (J) on vacuum tube into
locking rib (K), and turn the vacuum tube clockwise so that it is
locked.
NOTE
Engine will not start/operate unless safety interlock switch (K) is
activated by the vacuum tube.
