18

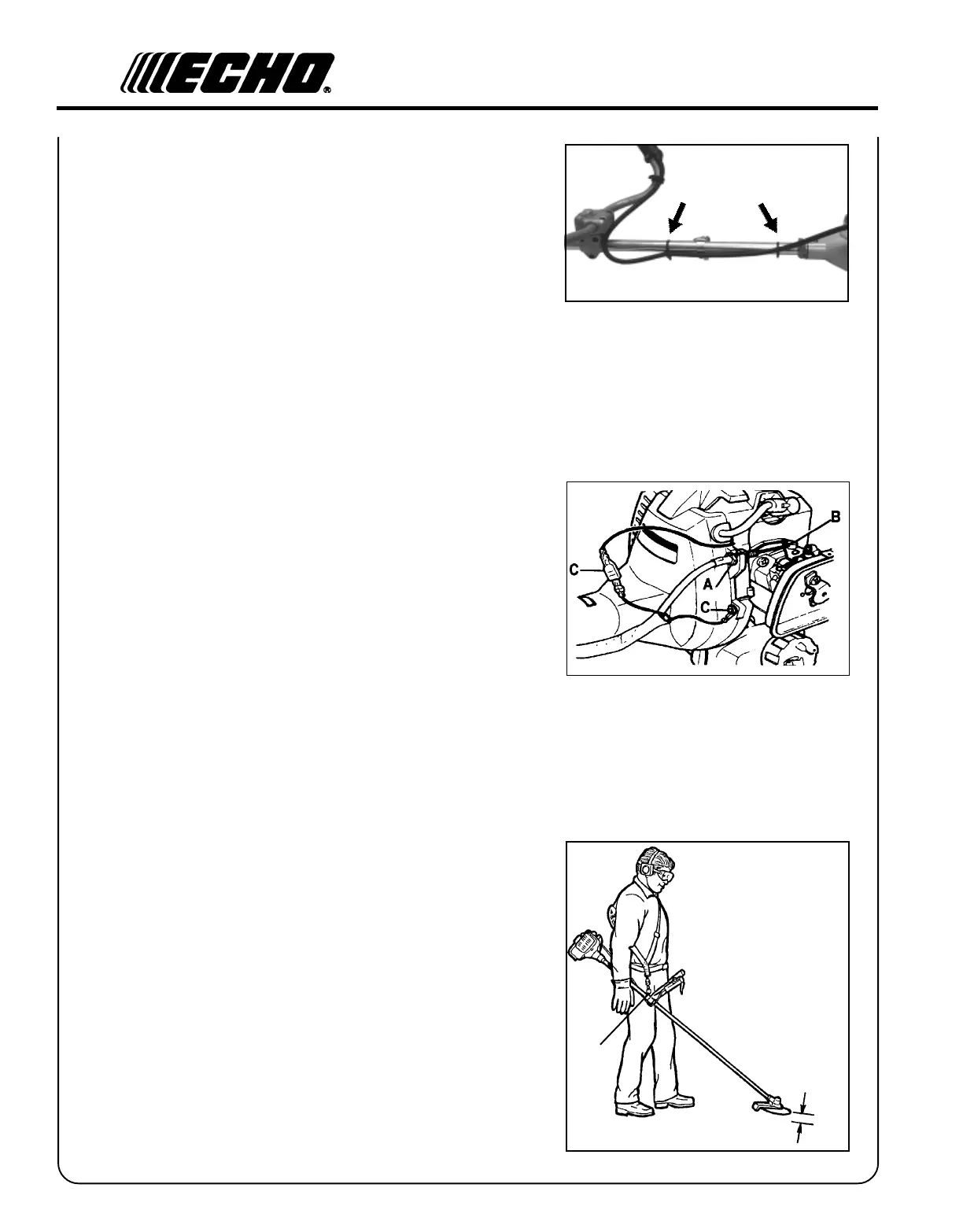

11. Secure throttle linkage and leads to drive shaft with cable clips
supplied.
12.Install power head and align gear box, power head and U-handles.
Tighten all screws.
13. Place throttle linkage in slot in bracket with one nut (A) andwasher
on each side of bracket. Finger tighten both nuts (A).
14.Attach inner throttle cable to swivel (B). Check throttle for
freedom of movement and that wide open throttle / low idle
extremes are adjusted properly. If adjustment cannot be achieved
by adjusting nuts (A), consult with your Echo Dealer for correct
adjustment procedure.
15.Attach ignition leads (C).
16. Install air filter and cover.
17. Balance unit.
a. Put on harness and attach unit to harness.
b. Slide clamp (K) up or down drive shaft housing until unit
balances with cutting attachment approximately 2 - 3" from
ground.
c. Tighten harness clamp screw.
2 - 3 "
K
