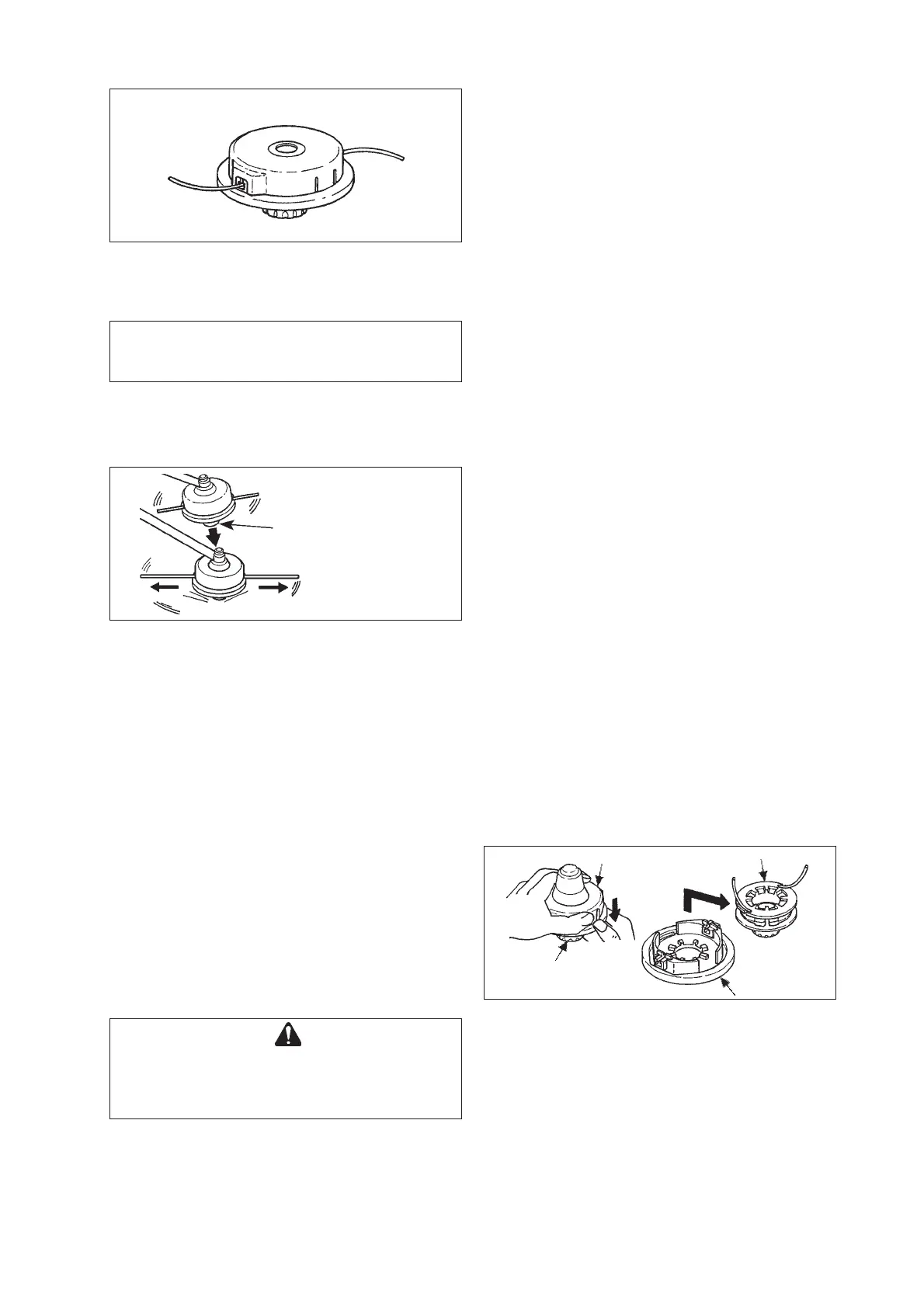

NYLON LINE CUTTING ATTACHMENT
Type: F-4/10
Thread: Left-hand thread M10 × 1.25 pitch
ADJUSTING NYLON LINE
• Make sure there is no bystander within 15 m radius
and pay enough attention to objects in the
surroundings before starting operation.
• Do not rotate the cutting head at more than 10,000
r/mim.
• Do not hit the cutting head against hard foreign
matters such as rocks, concrete, tree stub and bottle
etc.
Tap knob
Hit knob against the
ground surface lightly
Nylon line comes out
• When releasing Nylon line from spool hit tap knob of
spool against the ground surface lightly at rotation
speed lower than 4,500 r/min.
• Cut off knife on the guard adjusts cutting swath to 40
cm automatically by cutting nylon lines evenly when
attachment starts rotating.
• When operating with less than maximum cutting
swath (40 cm), cut two nylon lines in equal lengths.
CAUTION
Use only flexible, non-metallic line recommended
by KIORITZ CORPORATION.
Tap knob of spool
Housing
Spool
Cover
REPLACING NYLON LINE
F-4/10
(1)
(2)
(3)
(1) Press “retaining pawls” (at two places) inward and
remove cover.
It is easier to remove one after another.
(2) Remove spool.
(3) When Nylon line on the spool is almost exhausted,
remove remaining line from spool and wind “new line”
according to the procedures (4) and beyond.
When the line on the spool is “melted and stuck”
remove the entire line while peeling off the “melted and
stuck” portion and wind the “removed line” anew
according to procedures (4) and beyond.
WARNING DANGER
SHUT DOWN TRIMMER ENGINE WITHOUT FAIL
AND MAKE SURE CUTTING HEAD HAS STOPPED
ROTATING BEFORE STARTING REPLACEMENT
PROCEDURE.
To Next Page
