16
SRM-2305

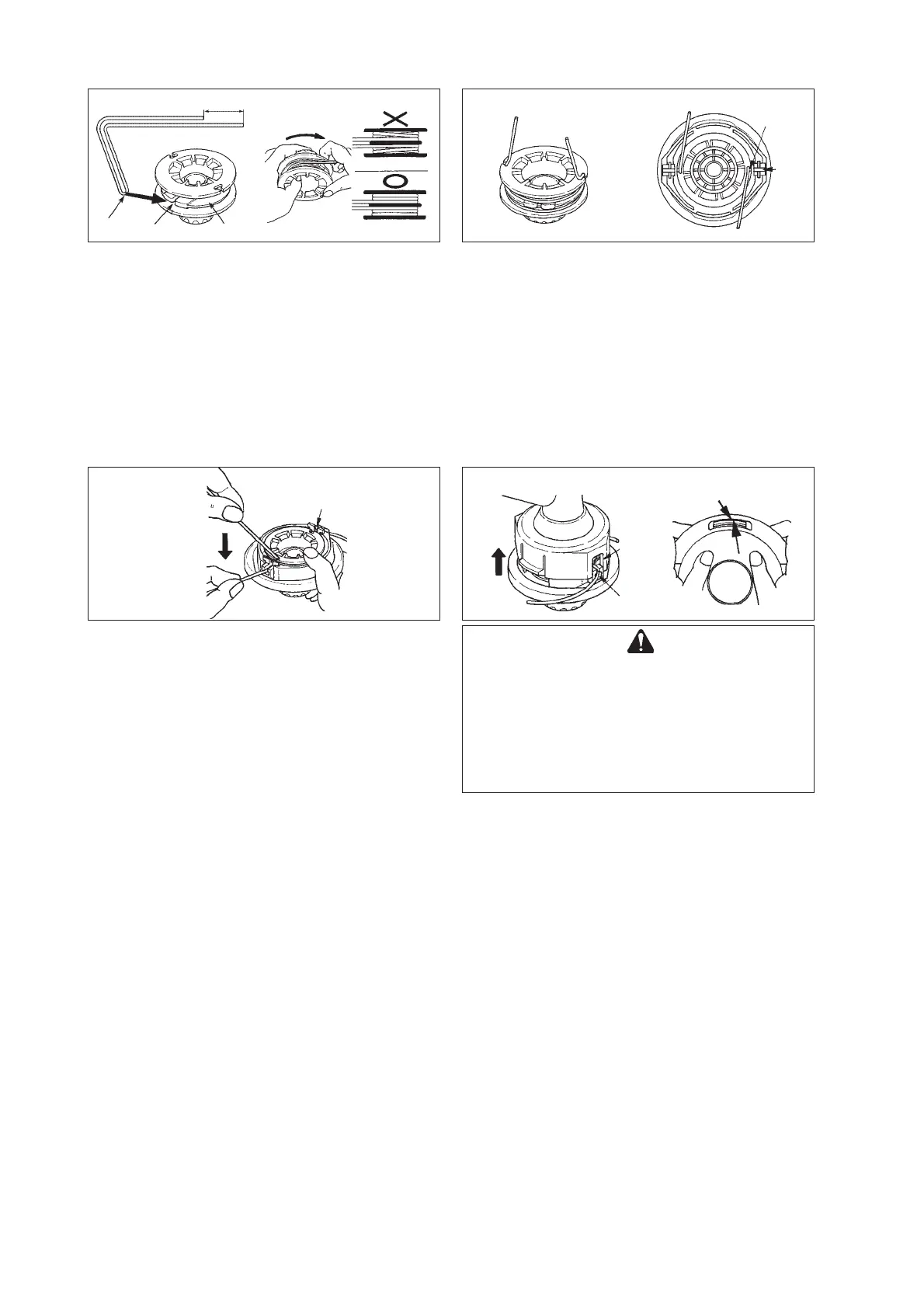

(8) Pull out the line from cover.
(A) Remove the line from “respective notch of spool”,
and (B) pass it through “groove of respective eyelet”.
(9) Fit cover and housing together.
(C) Align “eyelets” of cover with “recesses” of housing,
and (D) press pawls of housing into respective window
of cover until the pawls are firmly fitted into the
windows.
(6) (7)
(6) When the line is wound to the end hook both line ends
into respective notch of spool for retaining tentatively
the line while leaving line ends approximately 10 cm
beyond notch.
(7) Align notches of spool for the line with grooves of
eyelets and fit spool into cover.
(8)
WARNING DANGER
MAKE SURE EACH OUTER PERIPHERY OF
PAWLS OF HOUSING SPREADS ALMOST FULLY
UP TO THE OUTER PERIPHERY OF RESPECTIVE
WINDOW OF COVER.
IF THEY ARE LOOSELY FITTED AND THE
CUTTING HEAD IS TURNED, COVER OR INSIDE
COMPONENTS CAN FLY OFF WHICH IS
DANGEROUS.
(A)
(B)
(C)
(D)
(9)
1. Intermediate separator
2. Bent portion
3. Notch Nylon line
4. Winding direction for the line
5. If wound unfirmly, the line loosens.
6. Wind firmly into respective groove.
(4) Bend the line at the point 12 cm away from the middle
of whole length and hook the bent portion into the
“notch” of the intermediate separator.
(5) Wind the line firmly into groove of the spool following
“winding direction for the line LH”.
12 cm
1
2
3
4
5
(4) (5)
6
