GRASS TRIMMER/BRUSH CUTTER
OPERATOR'S MANUAL
13
A
ASSEMBLY
DRIVE
SHAFT/POWER HEAD
Tools Required: 8mm x 10mm Open End Wrench, 4 mm Hex
Wrench
Parts Required: Power head, Drive shaft Assembly

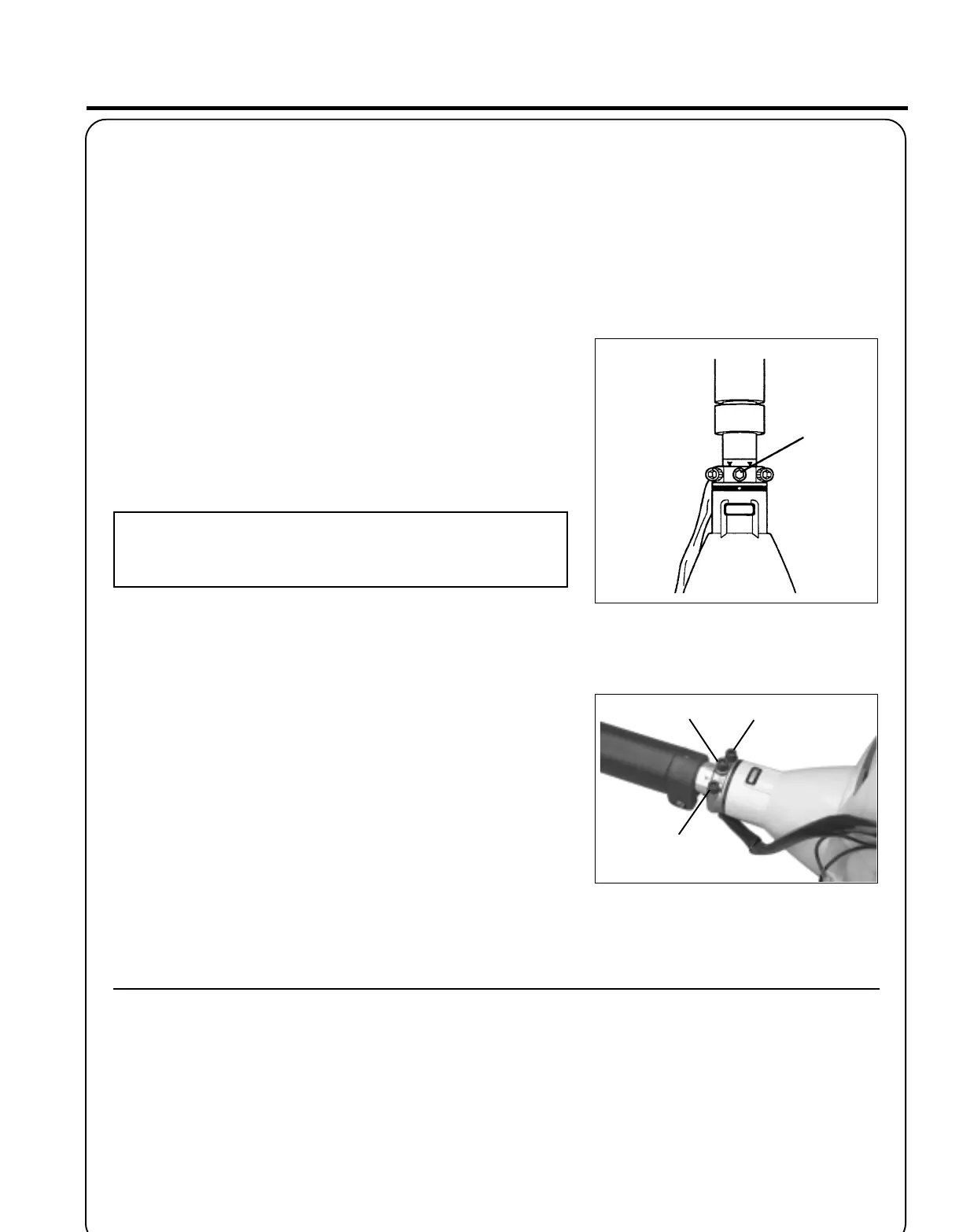

1. Stand powerhead upright on a level surface.
2. Loosen, the two (2) bolts at engine drive shaft clamps, and
remove center drive shaft location bolt (A).
3. Carefully fit driveshaft assembly to engine making sure that
inner drive shaft engages into clutch mount..
NOTE
Lower bearing housing and head assembly must be in line
with the engine.
4. Turn drive shaft housing until locating hole lines up with location
hole in clamp and install center drive shaft location bolt (A).
5. Tighten two (2) drive shaft clamp bolts (B).
PLASTIC SHIELD INSTALLATION
(for Nylon Line Operation)
Tools Required: Screwdriver.
Parts Required: Plastic Shield, Shield Plate, three (3) 5mm x 18mm
screws.
A
B
B
