Echo SRM-400

6
SHIELD
Fit the shield on the gear housing and tighten
screws with washers (Seven points) as shown.
SHOULDER HARNESS
• Fit the shoulder starp to the swivel hook, and
adjust the length of starp and or the locaion
clamps to maintain the cutter head parallel to
the ground.
Shoulder strap assembly
Quick release latch
Waist pad
2
4
5
6
7
3
1

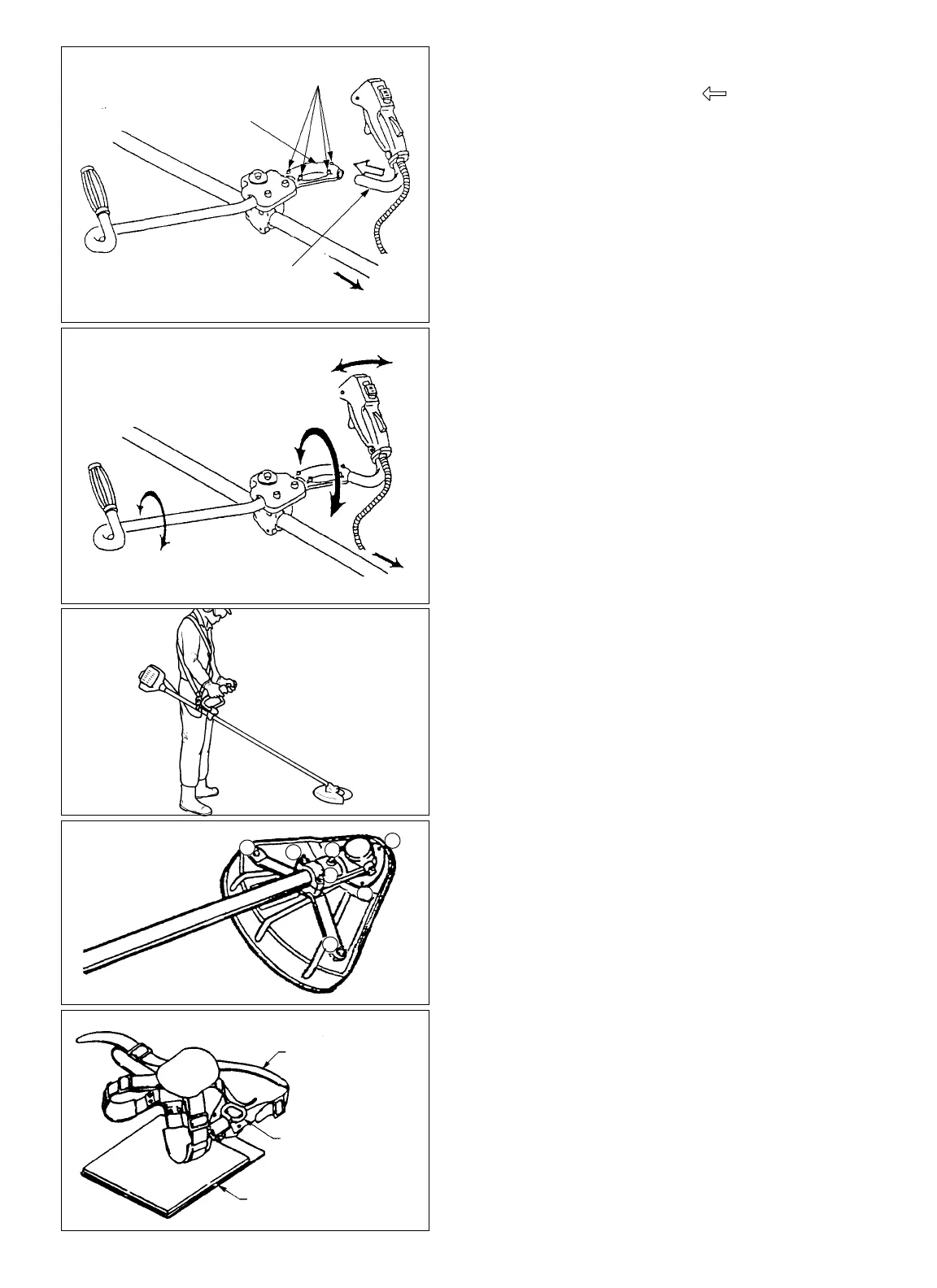

Adjust each inclination of right and left handles to
adequate position (easy to operate) and tighten firmly
handle assembling bolt (8 mm) and 4 right handle
assembling bolts.
Adjustment of right handle inclination (left/right)
Loosen 4 right handle assembling bolts and insert
right hand U-handle into right handle assembling
bracket. (toward direction of arrow )
Fix the right hand U-handle by tightening 4 right
handle assembling bolts lightly.
Right handle assembling bolt
Right handle assembling bracket
Right hand U-handle
To engine
Adjustment of right handle inclination
(forward/ backward)
Adjustment of left handle inclination
(forward/ backward)
To engine
Determine “Easy to operate” position.
