Installation Guide
15
tel - 1-866-766-2267
email - gmsupport@echomaster.com
Illustrations are typical and may not match exact vehicle detail
FCTP-GM2003
Trailering Camera System
The camera extension cables must be run with and
secured to the factory wiring in the door. Failure to do this
WILL result in damage to the camera extension cable.
NOTE

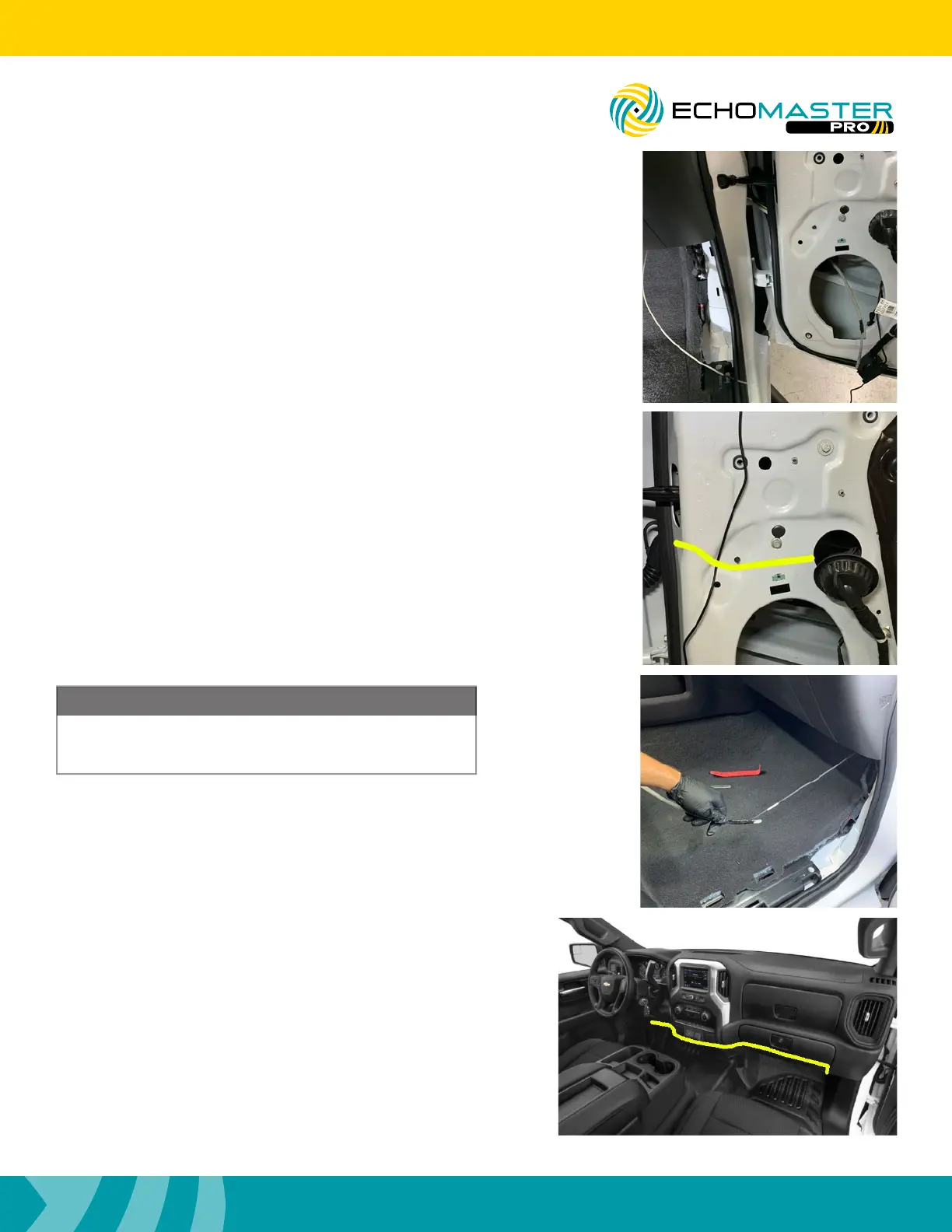

Step 22
Continue routing the fish tape through the door boot and into
the speaker opening. Secure the loose end of the GMS3-M2F
extension cable to the fish tape like done previously in step 6.
Step 23
Grab the fish tape from the inside of the vehicle and slowly pull
the camera extension cable into the vehicle making certain that
the camera extension cable follows the factory wiring in the door.
Secure the camera extension cable to the factory wiring inside the
door using the supplied zip ties.
Step 24 (Driver Side Only)
Route the cable following the factory wiring and keeping
the cable away from any moving parts to the passenger
side kick area.
Perform Steps 1-23 for the driver’s side door.
