EchoMaster Pro FCTP-GM2003 - Rear Wireless Camera Receiver Connections; Routing the Receiver Pigtail Cable; Connecting Receiver to In-line Power Filter

18
Installation Guide
18
tel - 1-866-766-2267
email - gmsupport@echomaster.com
Illustrations are typical and may not match exact vehicle detail

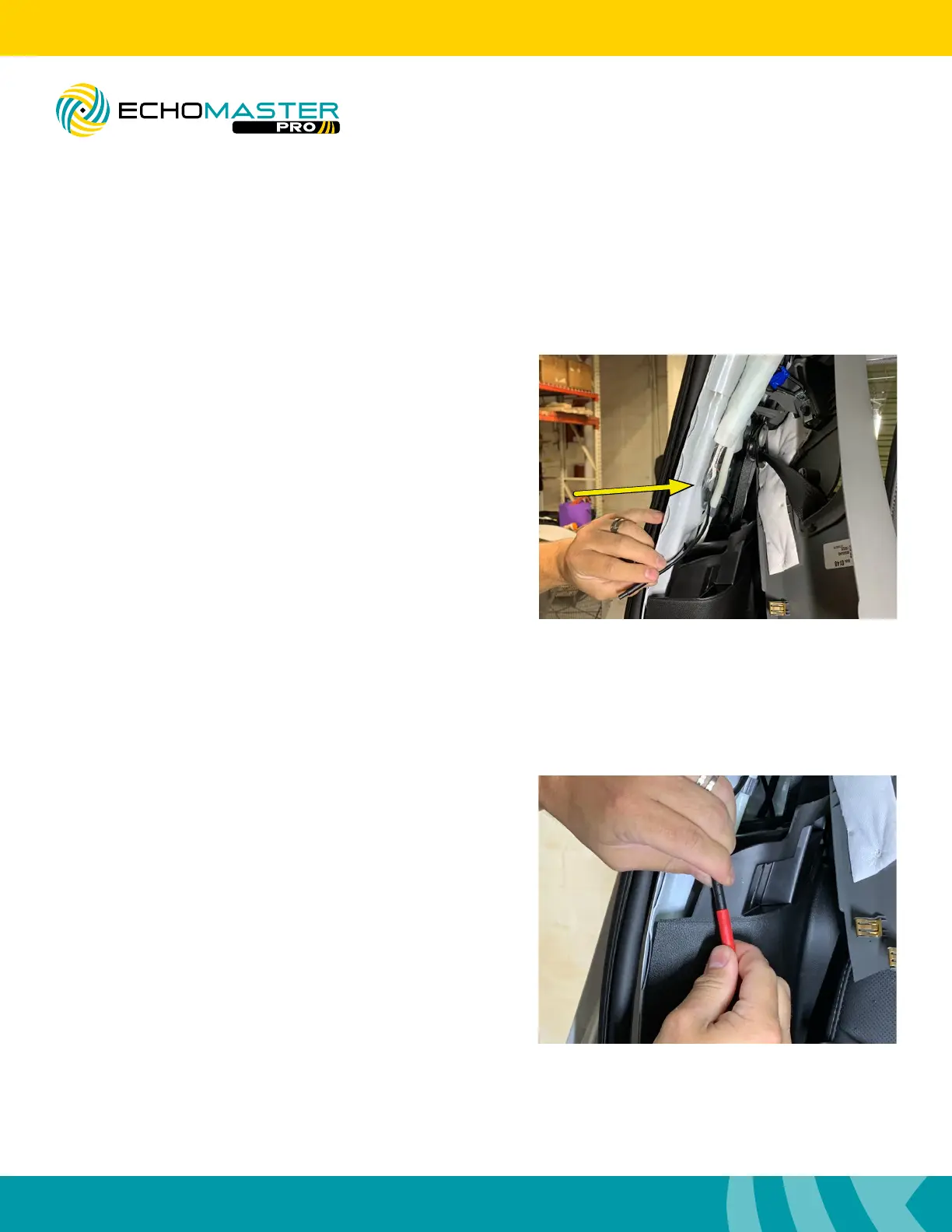

Step 3
Release the retaining clips and remove the upper trim panel
from the C pillar and route the pigtail cable from the wireless
camera receiver. Make certain the cable is routed behind
any air bag hardware that is located in that area.
Step 4
Connect the 4 pin mini din cable from the wireless camera
receiver to the RVC-W8-FLTR cable near the in-line power
filter labeled “Camera Side”.
FCTP-GM2003
Trailering Camera System
Rear Wireless Camera Receiver (continued)
