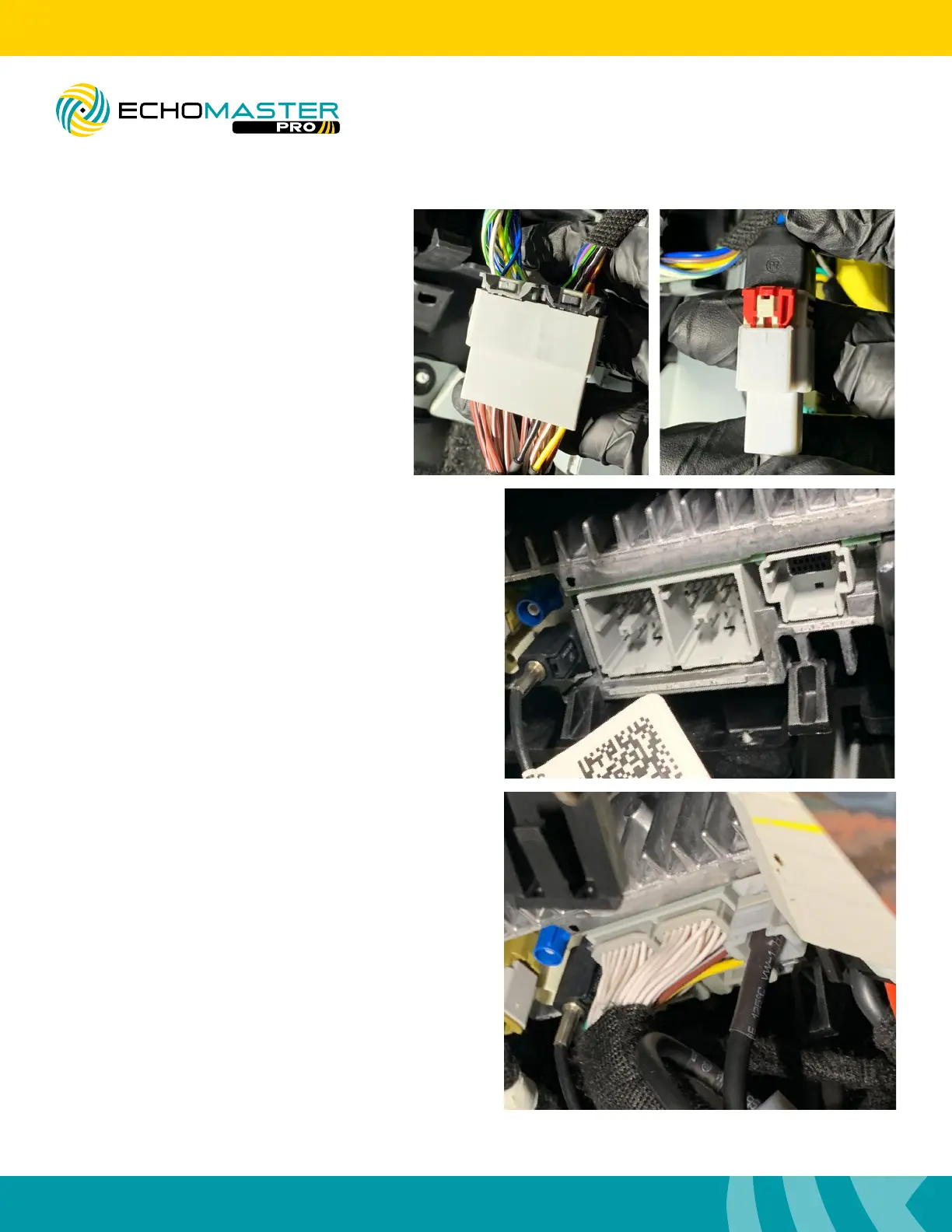

Step 6
Connect the factory Gray and Black 28 pin
connectors to the GMS3-PTH-HAR and the
factory LVDS connector to the
GMS3-LVDS-HAR.
FCTP-GM2003
Trailering Camera System
Step 7
Connect the 2 Gray 28 pin connectors from the
GMS3-PTH-HAR and the LVDS connector from the
GMS3-LVDS-HAR into the factory radio brain.
Module Assembly and Installation (continued)
