Installation Guide
4
tel - 1-866-766-2267
email - gmsupport@echomaster.com
FCTP-GM2003
Trailering Camera System

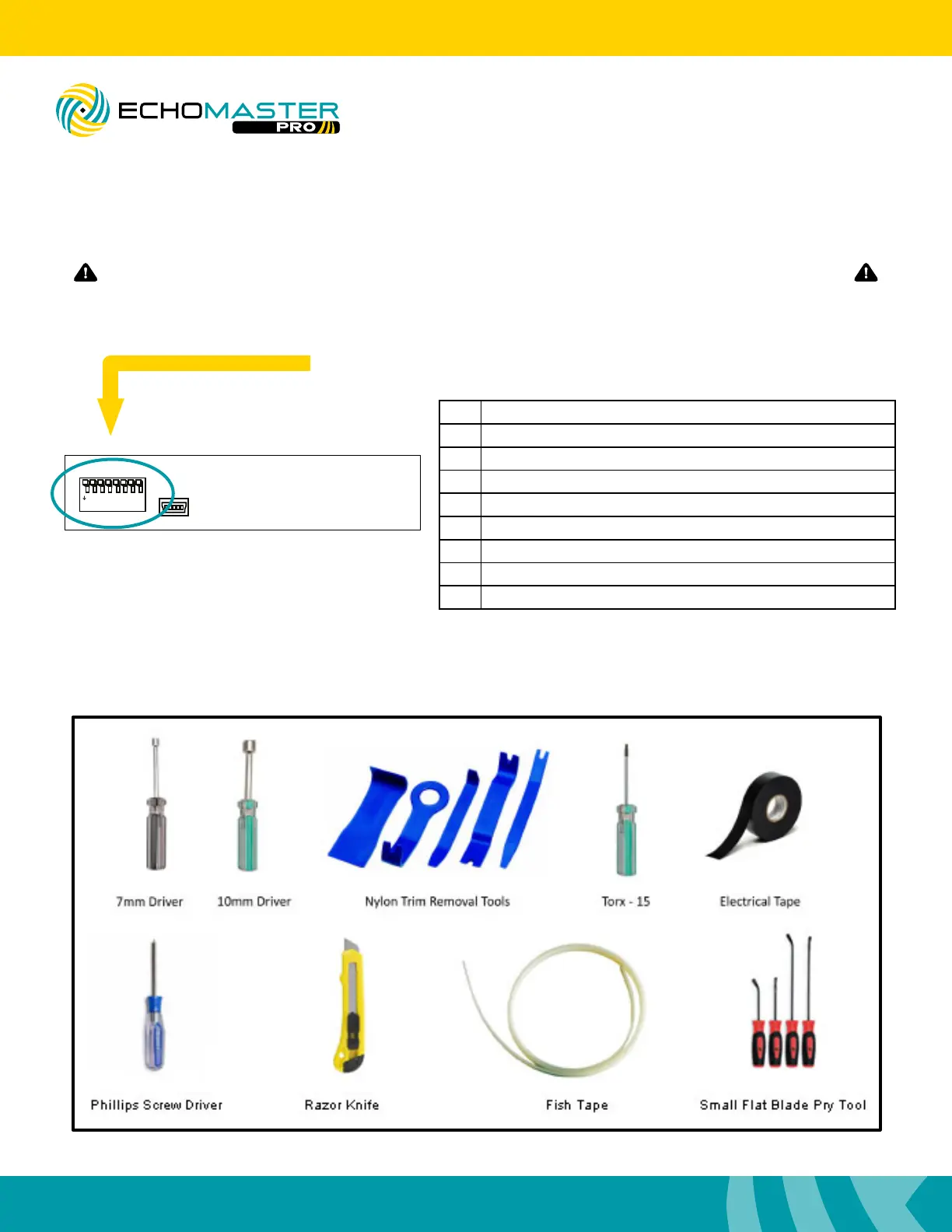

Setting the Dip Switches
1
ON
2 3 4 5 6 7 8
No. Function
1 Left Camera On / Off
2 Right Camera On / Off
3 Front Camera On / Off
4 Trigger Wire (On) / CAN (Off)
5 Rear Camera - Aftermarket (On) / OEM (Off) Camera
6 No Function (Must Remain Off)
7 No Function (Must Remain Off)
8 No Function (Must Remain Off)
Dip Switch Settings
Please be sure to set all Dip Switches before plugging the interface module into the vehicle.
Tools Required
