FCTP-GM2403
Trailering Camera System
Step 4:

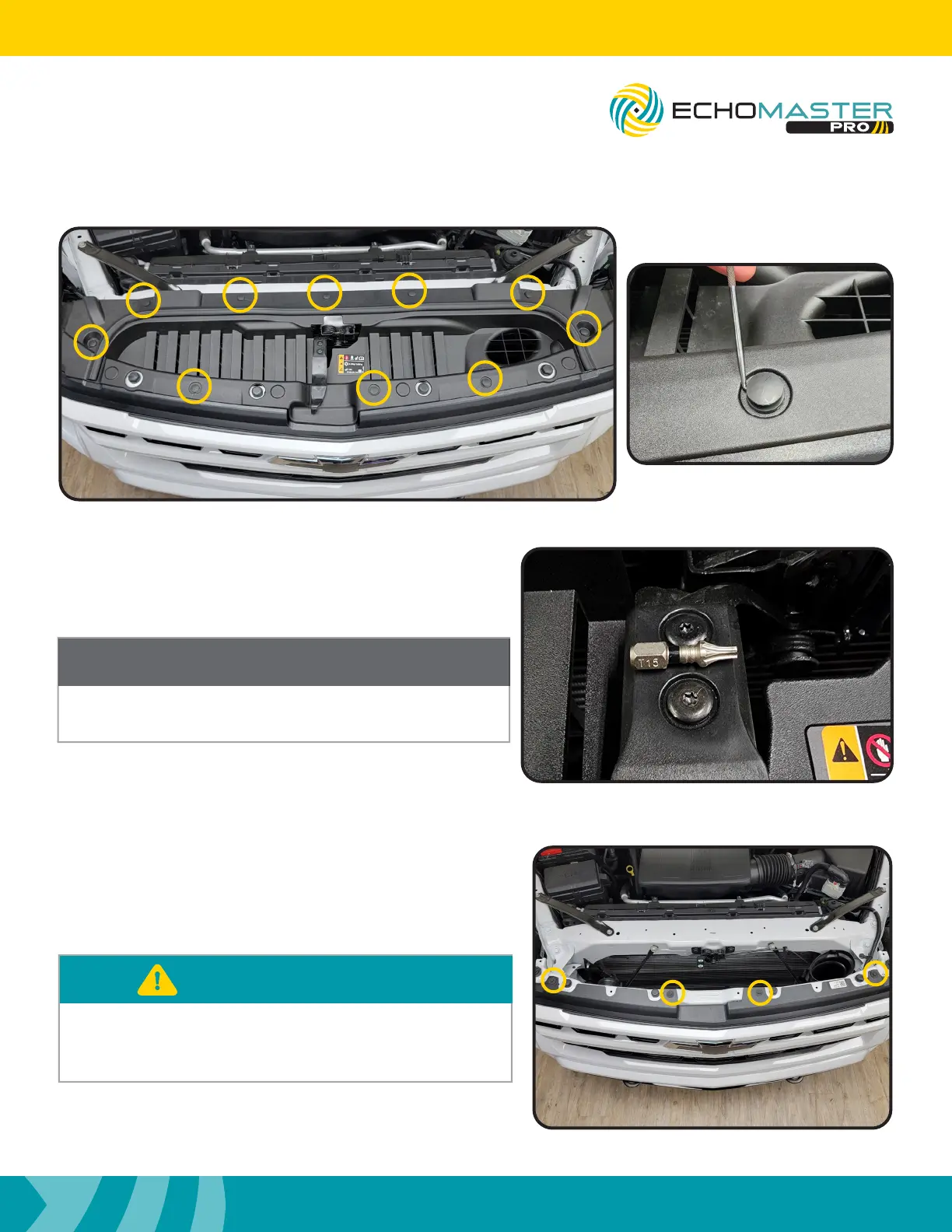

Using a small flat blade tool or similar, remove the 10 push-in rivets to remove the plastic trim panel on the
top side of the grill.
Step 5:
Remove the (x2) T15 screws attaching the hood release
handle to the hood release. Remove both the handle and
the trim panel and set aside.
Step 6:
Remove the four 10mm bolts, circled in yellow, holding the
front fascia to the front frame rail of the vehicle.
Once the handle and trim panel are removed, place in
safe area to avoid damage.
NOTE
These vehicles have shutters behind the grille that open
and close. Be sure to route the camera cable to avoid
moving parts.
WARNING
To Next Page
