Installation Guide
20
tel - 1-866-766-2267
email - gmsupport@echomaster.com
Illustrations are typical and may not match exact vehicle detail
FCTP-GM2403
Trailering Camera System
PCAM-12FF: Routing the Camera Extension Harness

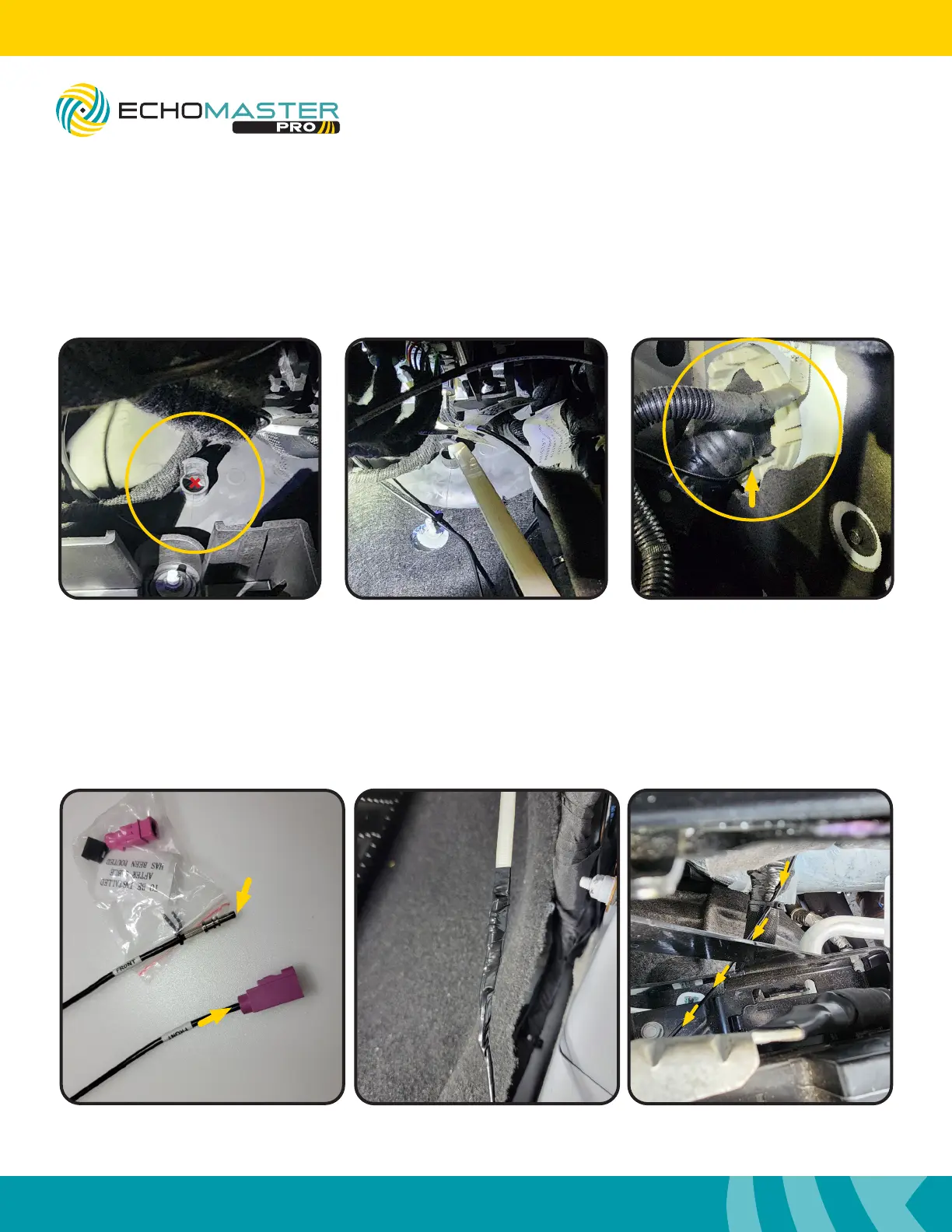

Step 1:
From the interior of the vehicle, locate a small round access point in the large grommet on the firewall under
the dash on the passenger’s side. Cut an “x” (marked in red) in the access point and feed a wire fishing tool
through the opening from inside the vehicle to the engine bay. The wire fishing tool will come out just below
the main harness behind the battery.
Step 2:
Locate GMS4-M2F-50, the Front Camera Extension Harness. Remove the small ziploc bag and set aside.
The connector housing will be installed after the cable is routed. From the inside of the vehicle, secure the
bare connetor end of the cable to the wire fishing tool. Slowly pull the cable into the engine bay and route
the cable along the factory wiring towards the previously ran camera cable. Secure the extension harness to
the factory wiring bundle using a zip tie.
Module Module
ConnectorConnector
Camera Camera
ConnectorConnector
To Next Page
