FCTP-GM2403
Trailering Camera System
Step 4:
With the connector housing now installed, connect
the extension harness to the previously routed
camera cable. You will hear an audioble click when
the connectors are fully seated together. Secure
the cable to the factory harness with zip ties where
shown.

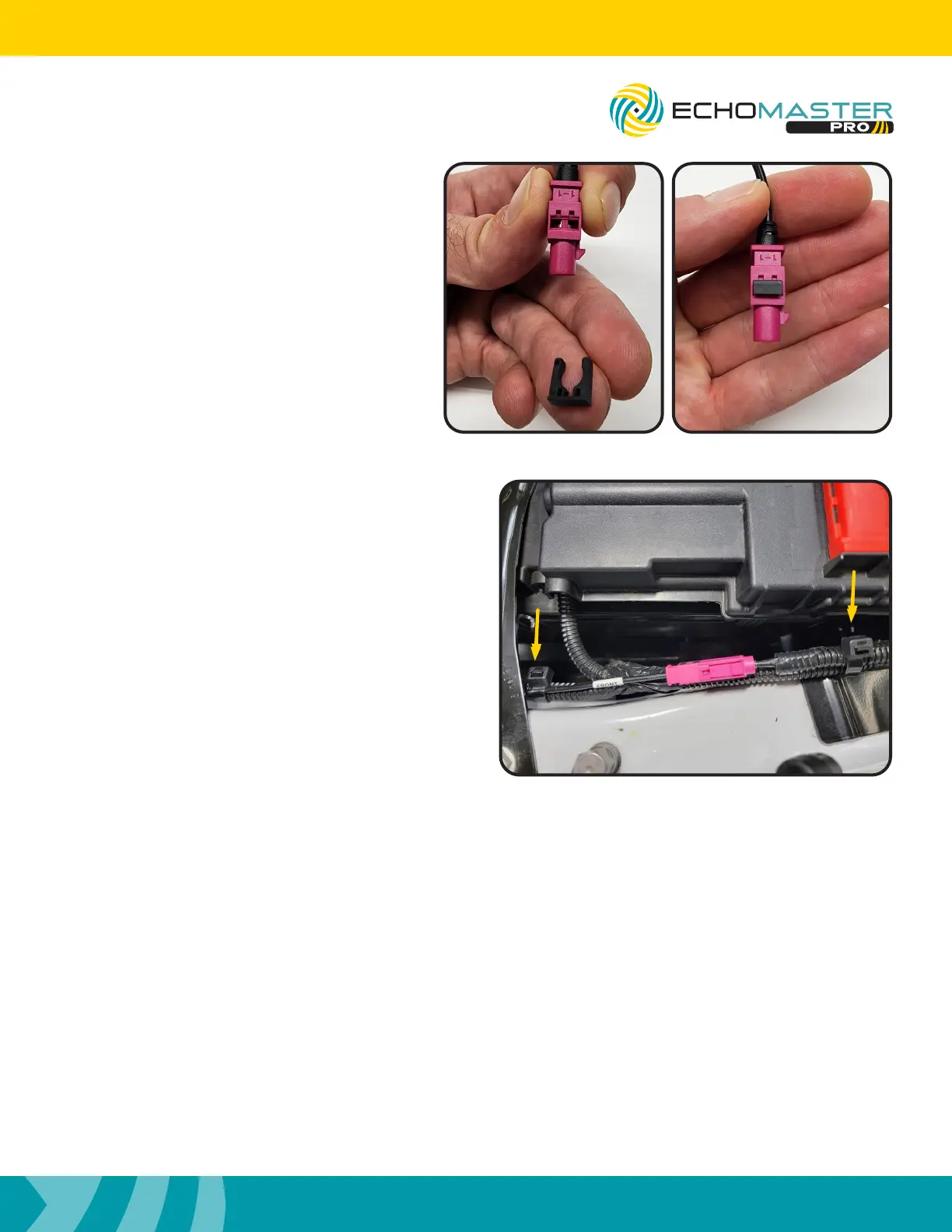

Step 3:
With the extension harness now routed, grab
the small plastic bag containing the connector
housing and retention clip. First, slide the pink
connector housing on to the bare connector
end. Then, slide the black retention clip onto the
connector housing to secure the connector.
