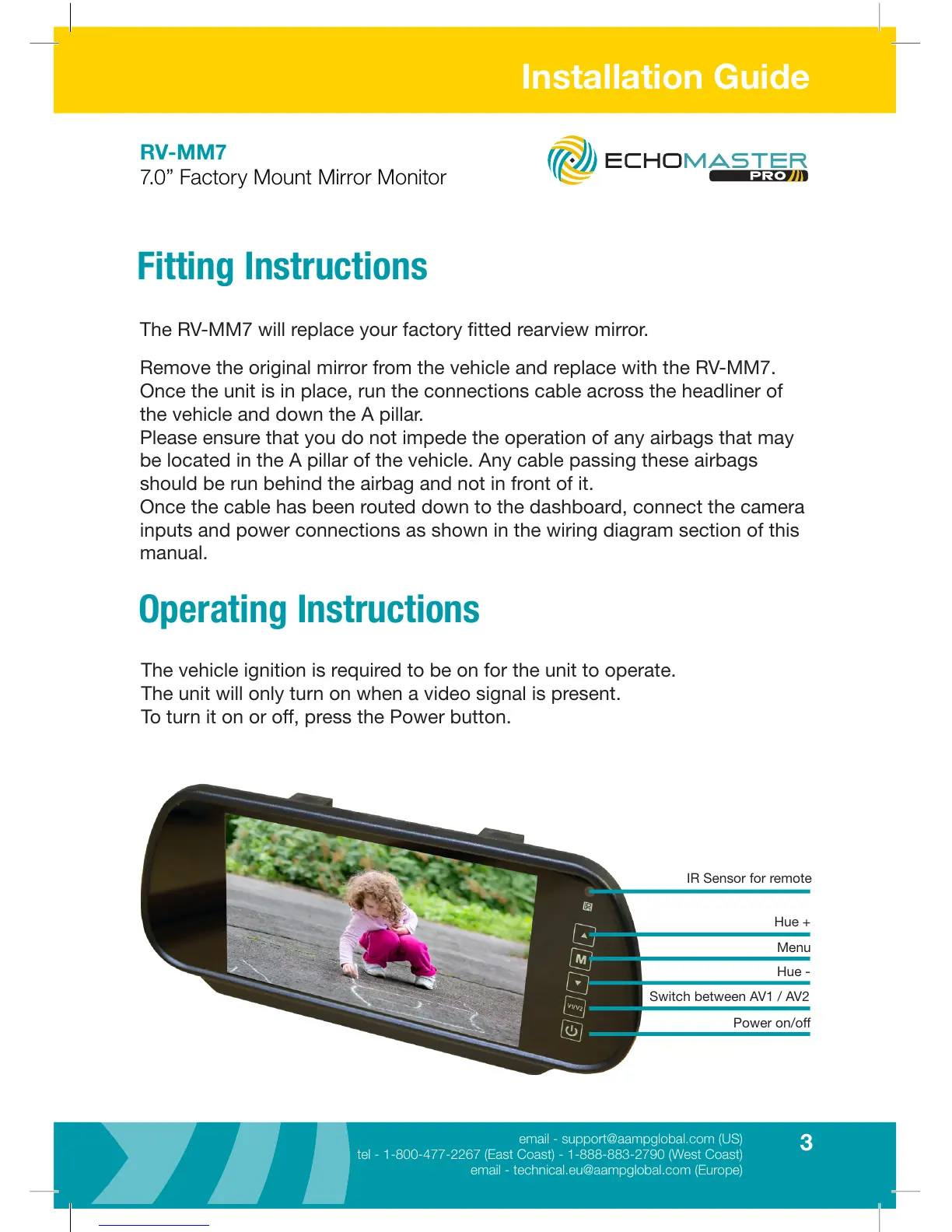

Installation Guide
RV-MM7
7.0” Factory Mount Mirror Monitor
Fitting Instructions
The RV-MM7 will replace your factory tted rearview mirror.
Remove the original mirror from the vehicle and replace with the RV-MM7.
Once the unit is in place, run the connections cable across the headliner of
the vehicle and down the A pillar.
Please ensure that you do not impede the operation of any airbags that may
be located in the A pillar of the vehicle. Any cable passing these airbags
should be run behind the airbag and not in front of it.
Once the cable has been routed down to the dashboard, connect the camera
inputs and power connections as shown in the wiring diagram section of this
manual.
Operating Instructions
The vehicle ignition is required to be on for the unit to operate.
The unit will only turn on when a video signal is present.
To turn it on or off, press the Power button.
IR Sensor for remote
Hue +
Menu
Hue -
Switch between AV1 / AV2
Power on/off
