Optional - Connecting VCRs to the System
Optional - Connecting VCRs to the System

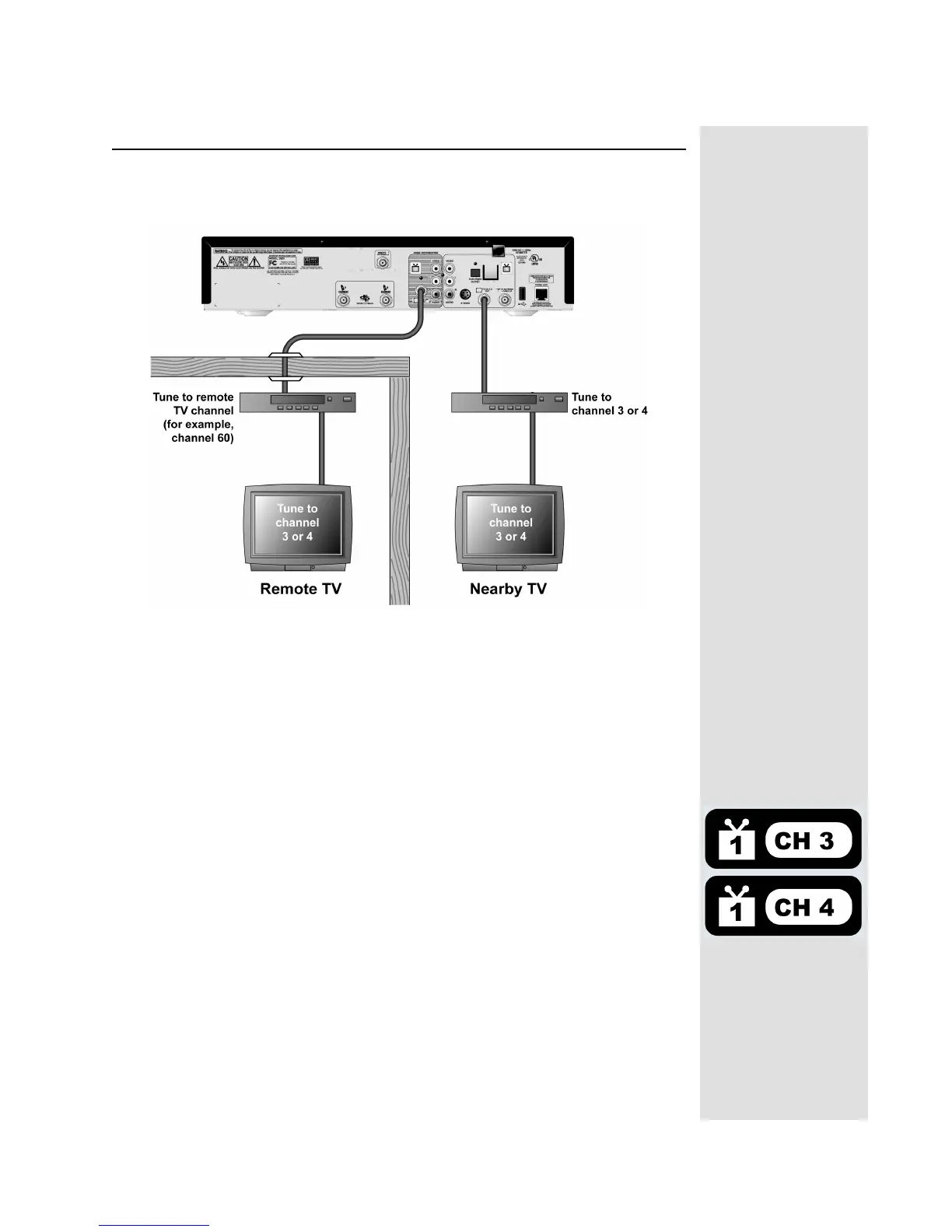

The diagram below provide example of how to connect VCRs to your satellite
TV system. Your installation may be different.
Connecting a VCR to the Nearby TV
1. Connect a coaxial cable from the CH 3-4 OUT output on the receiver to the
nearby VCR’s tuner port.
2. Connect a coaxial cable from the output on the VCR to the nearby TV’s
tuner port.
3. Plug in and turn on the nearby VCR and TV.
4. Set the VCR output to Channel 3 or 4 as set on page 37.
5. Tune the nearby VCR and TV to Channel 3 or 4 as set on page 37.
6. Place a
TV1 channel sticker (Channel 3 or 4 as set in step 5) on or near your
nearby TV. This sticker will remind you which channel to use to watch
satellite programming. The stickers are located in the inside front cover of
this guide.
