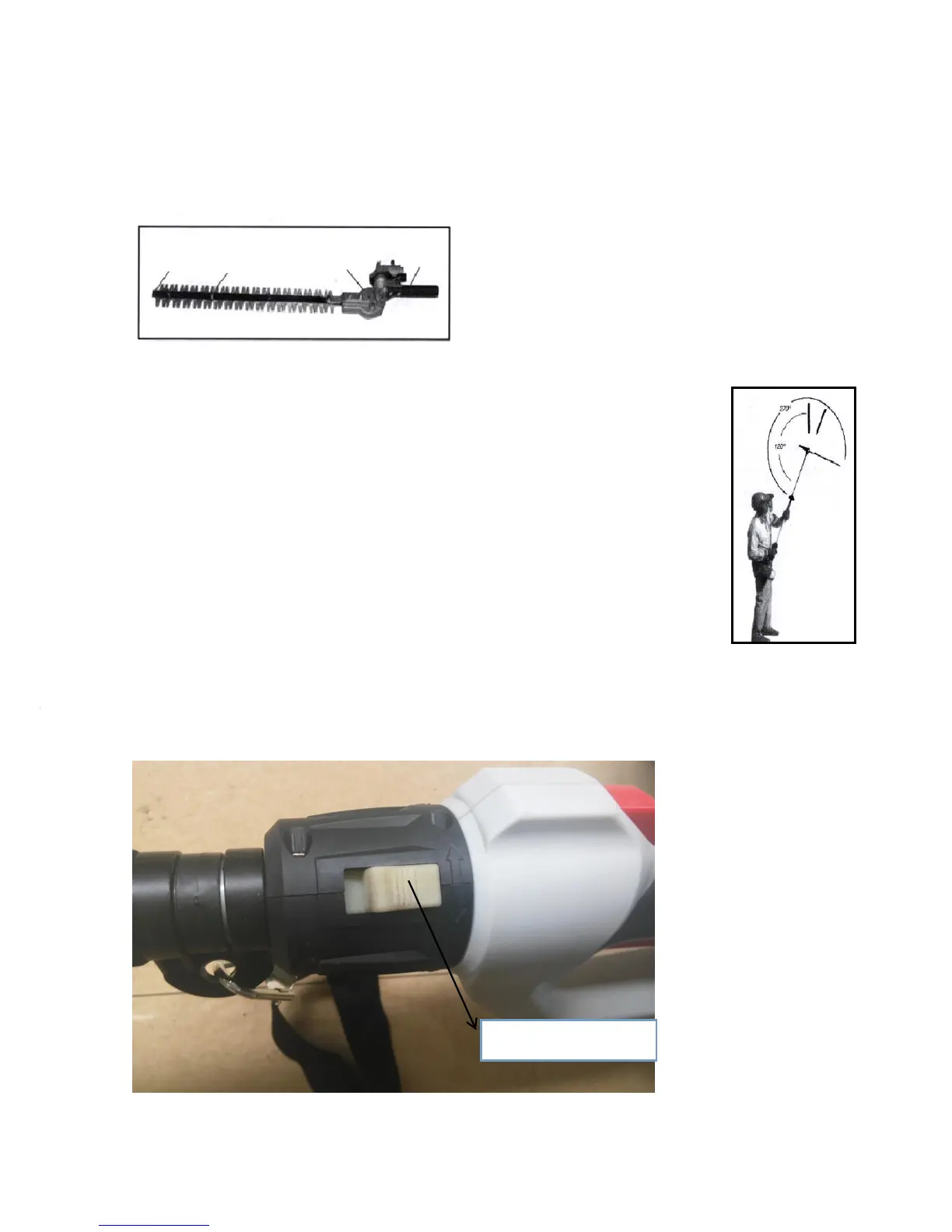

Ⅷ. Hedge trimmer attachment
This comes supplied fully assembled. For service, top up with a grease gun via the
grease nipples every 6 months/20hrs use.(see photo as below)
Ⅸ. Adjusting the hedge trimmer
The cutting angle can be adjusted by loosening the locking ratchet adjustment.
Adjust the angle then lock the ratchet adjustment firmly in position.(see photo in
right)
Ⅹ. ADJUSTING THE HANDLE ANGLE
Pull up the angle adjusting button, turn the rear handle from left to right to adjust angle(0-90°).(see
photo as below)
Cutting device
Cutting
guide bar
Blade
tooth
Gear
Control
handle
Photo 21
Photo 22
Angle adjusting button
