6. FUNCTION LIST
1. Input attenuator
2. Protection indicator, PROTECT
3. Thermal protection indicator, THERMAL
4. Clip indicator, CLIP
5. Signal present indicator, SIGNAL
6. Bridge mode indicator, BRIDGE
7. Illuminated mains switch, POWER
8. Switch to disconnect chassis earth / electrical Ground, GND LINK
9. Earth terminal, GND
10. Output XLR connector to other amplifiers, STK OUTPUT
11. Input XLR connector, INPUT
12. Bridge / mono selector switch
13. Speakon® connectors to the loudspeakers
14. Fan
15. Mains cable

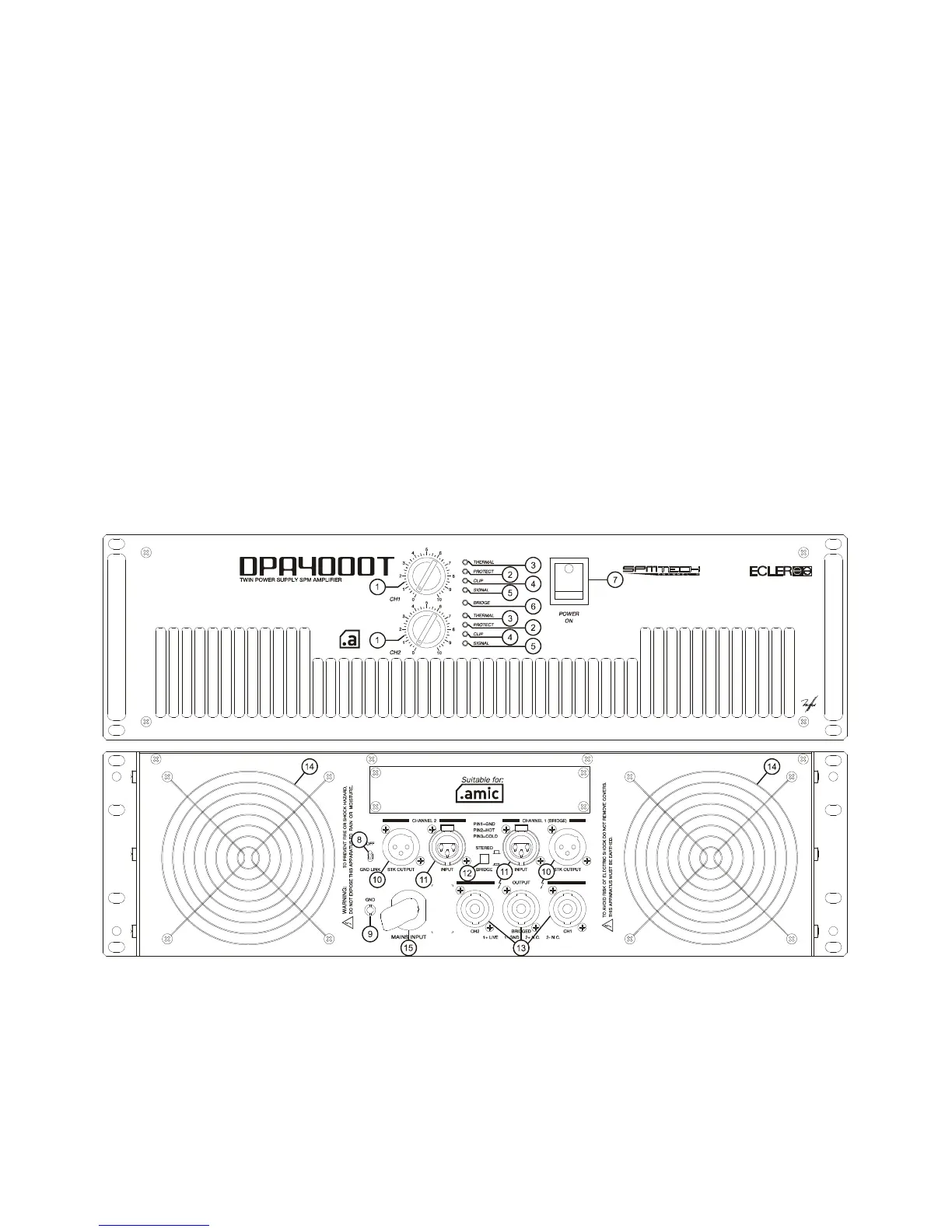

7. FUNCTION DIAGRAM
