drawn: date:
050111
project:
M09-04
product:
NUO 2
number:
30.0201
version
01.01
approved:
Jordi Folc
tit le:

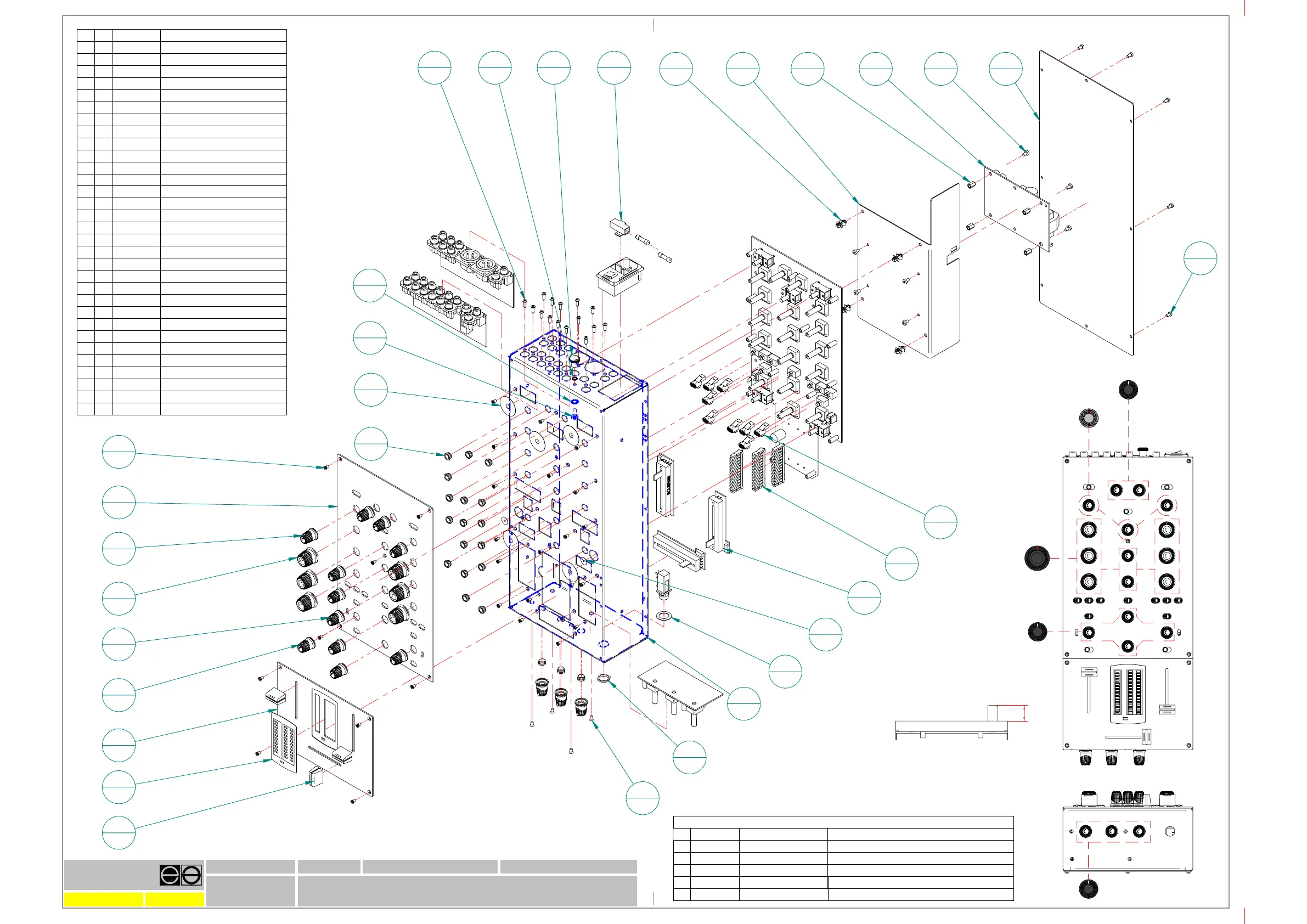

MECHANICAL DIAGRAM
E
C
LER
4
1
20
1
21
1
22
1
23
1
24
1
9
20
8
3
6
2
25
1
30
3
5
9
26
9
27
2
29
3
28
6
14
8
16
8
13
15
15
34
15
34
19
1
7
5
31
3
11
4
12
4
3
1
Nº Qty. Code Description
1 1 FCARDE040000 TOOTHED WASHER M4
2 1 FCARM1812000 WASHER 18X12X0,5
3 1 FCARS4000000 SEGMENTED WASHER M4
4 1 FCBOR0035000 GROUND TERMINAL
5 9 FCBOTOVTR000 CLEAR PUSH BUTTON OVAL
6 2 FCDISC102020 CIRCULAR DUST FILTER 10X2
7 5 FCDISC626000 CIRCULAR DUST FILTER
8 3 FCGUIAL20000 12 WAY LIGHT PIPE VERTICAL
9 20 FCINSPLA2000 ROTARY POT. PLASTIC GUIDE
10 1 FCLXVU023000 LEXAN VU-METER NUO2/NUO3
11 4 FCSEP3080000 SPACER M3x8
12 4 FCSEPWLS0600 PLASTIC SPACER 6MM
13 15 FCT400290900 SCREW 2,9x9,5 D7981F BLACK
14 8 FCT803005000 SCREW DIN 7985 M3x5 COMBI
15 34 FCT803005500 SCREW D965 M3x5 BLACK
16 8 FCT850300500 SCREW M3x5 REDUCED HEAD
17 1 FCT850411000 SCREW M4x10 TRILOB. WHITE
18 1 FCTUE0120000 NUT M12
19 1 FMFONT30C000 FONT30C POWER SUPPLY
20 1 FP0284700000 BASE CHASSIS
21 1 FP0284800000 ROTARY POTS FRONT PANEL
22 1 FP0284900000 FADERS FRONT PANEL
23 1 FP0285000000 BOTTOM COVER
24 1 FP0285500000 POWER SUPPLY SUPPORT PLATE
25 1 FRBASRE30150 MAINS SOCKET W/SWITCH 2xFUSE=500mA
26 9 FRBOT0050000 ROTARY KNOB D15 GREY + WHITE INDEX
27 2 FRBOT0050500 ROTARY KNOB D15 GREY + RED INDEX
28 6 FRBOT0051000 ROTARY KNOB D20 GREY + RED INDEX
29 3 FRBOT0052000 ROTARY KNOB D15 SILVER + RED INDEX
30 3 FRBOTD003000 HAK FADER KNOB
31 3 GENERIC FADER/XFADER 2X100K 45MM ECLER
1
1
17
1
Qty. Code Description
15 FCT400290900 SCREW 2,9x9,5 D7981F B
8 FCT803005000 SCREW DIN 7985 M3x5 COMBI
34 FCT803005500 SCREW D965 M3x5 BLACK
8 FCT850300500 SCREW M3x5 REDUCED HEAD
1 FCT850411000 SCREW M4x10 TRILOB. WHITE
FUNCTION AND POSITION OF ALL SCREWS USED IN THE ASSEMBLING
ASSEMBLING OF:
-CHASSIS WITH REAR RCAs AND XLRs SOCKETS
-P.SUPPLY WITH SUPPORT PLATE.
-CHASSIS WITH MAIN BOARD AND TOP PANELS
-CHASSIS WITH BOTTOM COVER
-GROUND TERMINAL
18
1
2
1
10
1
SILVER KNOB + RED INDEX
GREY KNOB + RED INDEX
GREY KNOB + WHITE INDEX
GREY KNOB + WHITE INDEX
GREY KNOB + WHITE INDEX
11 mm
CHANNEL FADERS AND XFADER
