11
3. Pass the surface accessory cover over the speaker arm before making
connections
4. Fix the base of the accessory to the desired surface. Make sure the surface is
solid and firm. There are 4 holes for this purpose. It is recommended to use
Ø4mm screws (not included)
5. Connect the audio cables from the amplifier stage to the screwable rail of the
base
6. Connect the wires from the speaker to the screwable rail, observing the colour
code for high and low impedance explained in point 3 of the instructions for
installation on the lighting rail

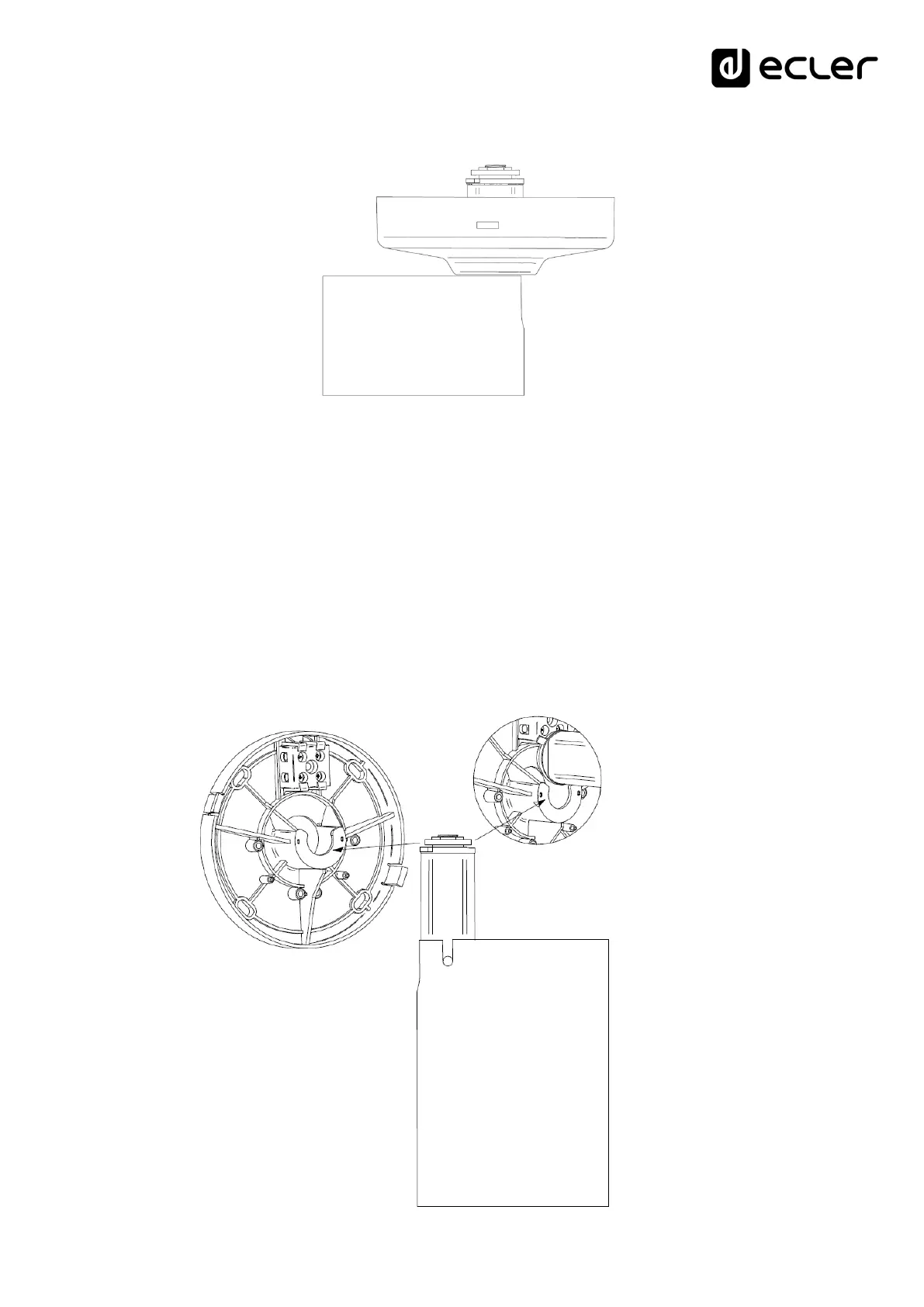

7. Insert the speaker arm anchor into the previously installed base according to the
following picture
