For the VIC6X, VIC8X and VICSB8X models the terminals available in the back cover are
pressure clamp for stripped cable. Once connected, it is enough to select the working
mode and power of the unit by acting on the selector by means of a flat screwdriver.

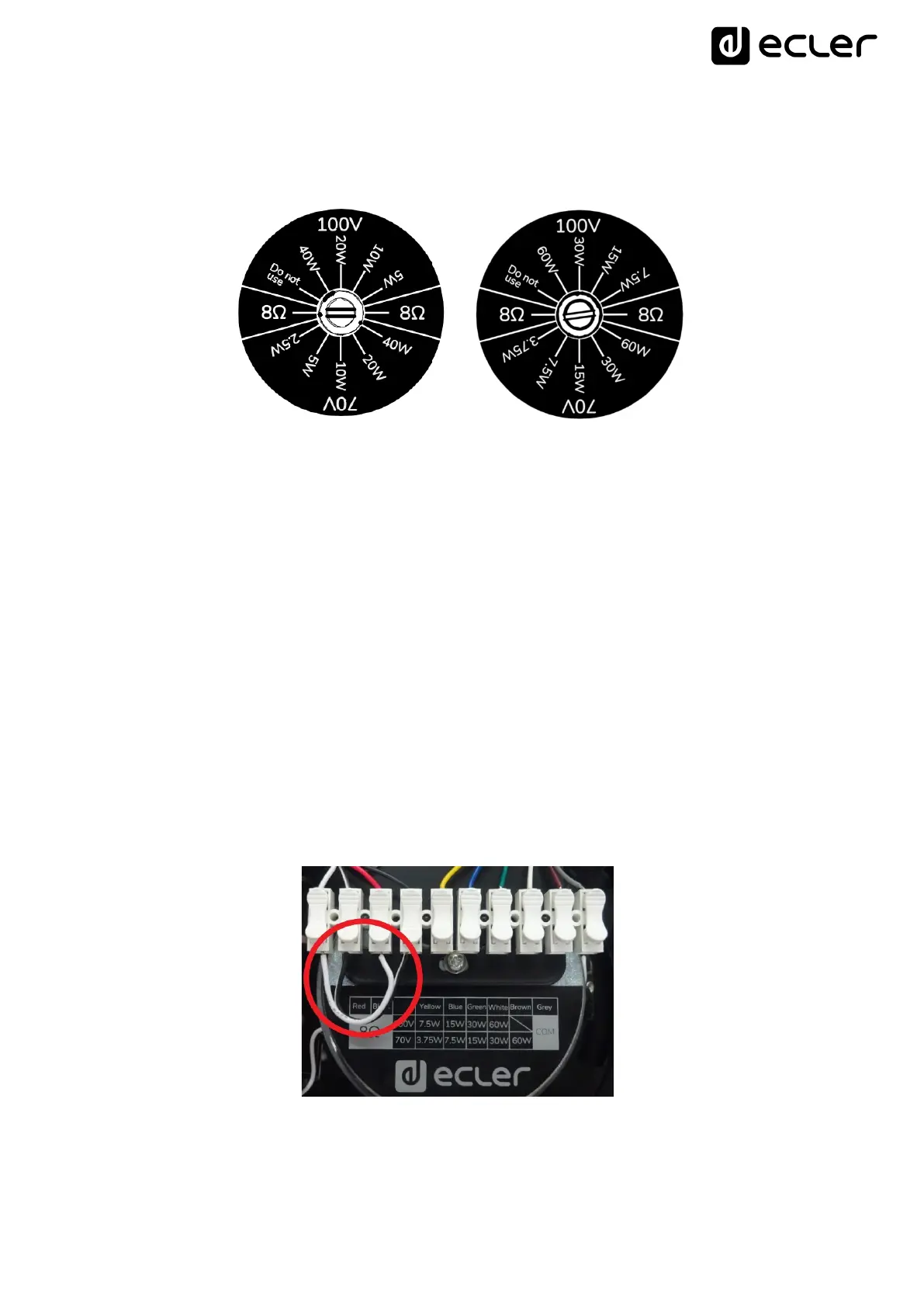

VIC6X VIC8X / VICSB8X
The VIC range is supplied as standard with the switch in the 100V/70V
position. If you accidentally connect the system to low impedance 8Ω, it will
not cause any damage to the loudspeaker but it will perform well below its
performance. If you accidentally connect the loudspeaker to a 100V/70V
network in the 8Ω position it will be severely damaged.
Note: if the loudspeaker is used in installations at 70V, the corresponding powers for
the 100V position will be reduced to half. In the case of installations at 50V, to a quarter.
5.1. BACK CAN CONNECTIONS
To connect the AVICCAN6L and AVICCAN8L (optional back cover) follow these steps:
1. Disconnect the black and white wires from the VIC loudspeaker that connect the
transformer output (red and black wires) to the connection terminals at 8Ω
