Eclipse Ratio Regulator, V1, Instruction Manual 742, 5/1/2009

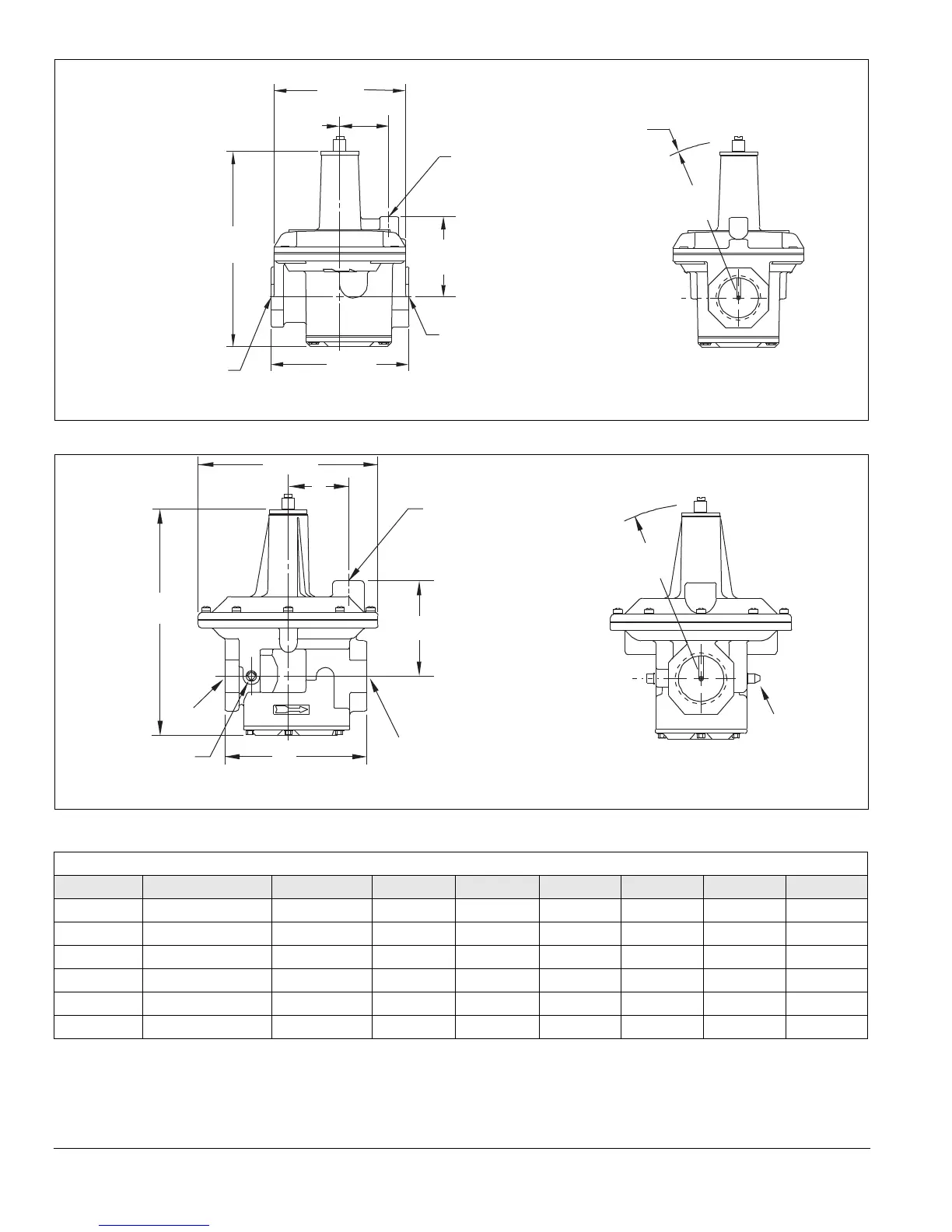

Figure 3.3. Dimensions in inches (mm), Models ES365 (M) & ES366 (M)
Figure 3.4. Dimensions in inches (mm), Models ES363 (M), ES368 (M) & ES369 (M)
3-7/8
(98.4)
1-1/2
(38.1)
5-11/16
(144.5)
1/8" NPT
Load Line
2-3/8
(60.3)
Inlet
ES365(M) 3/4" NPT (Rp 3/4)
ES366(M) 1" NPT (Rp 1)
4
(101.6)
Outlet
ES365(M) 3/4" NPT (Rp 3/4)
ES366(M) 1" NPT (Rp 1)
4-7/8
(123.8)
Outlet End View
Swing
Radius
E
A
C
Inlet
B Dia.
D
F
Load Line
Outlet End View
Swing
Radius
Inlet Pressure Tap
1
Inlet Test
Tap Connector
2
1
1/4" taper pipe plug on ES363(M) and ES368(M). No tap this side on ES369(M).
2
1/8" taper test tap connector, 0.34" OD (8.6 mm) for slip-on hose.
Outlet
Table 3.4
Model Swing Radius Inlet/Outlet A B C D E F
ES363 6-3/16" 1-1/2" NPT 9" 7" 5-1/2" 2-3/8" 3-3/4" 1/2" NPT
ES363M 157.1 mm Rp 1-1/2 228.6 mm 177.8 mm 139.7 mm 60.3 mm 92.2 mm Rp 1/2
ES368 9-3/16" 2" NPT 11-1/4" 9-1/8" 7-5/8" 3-1/8" 4-5/16" 3/4" NPT
ES368M 233.4 mm Rp 2 285.7 mm 231.7 mm 193.6 mm 79.3 mm 109.5 mm Rp 3/4
ES369 13-1/4" 3" NPT 16-1/16" 13-7/16" 10-3/8" 4-7/8" 6-1/8" 3/4" NPT
ES369M 336.6 mm Rp 3 407.9 mm 341.3 mm 263.5 mm 123.8 mm 155.5 mm Rp 3/4
