(CONTINUED)

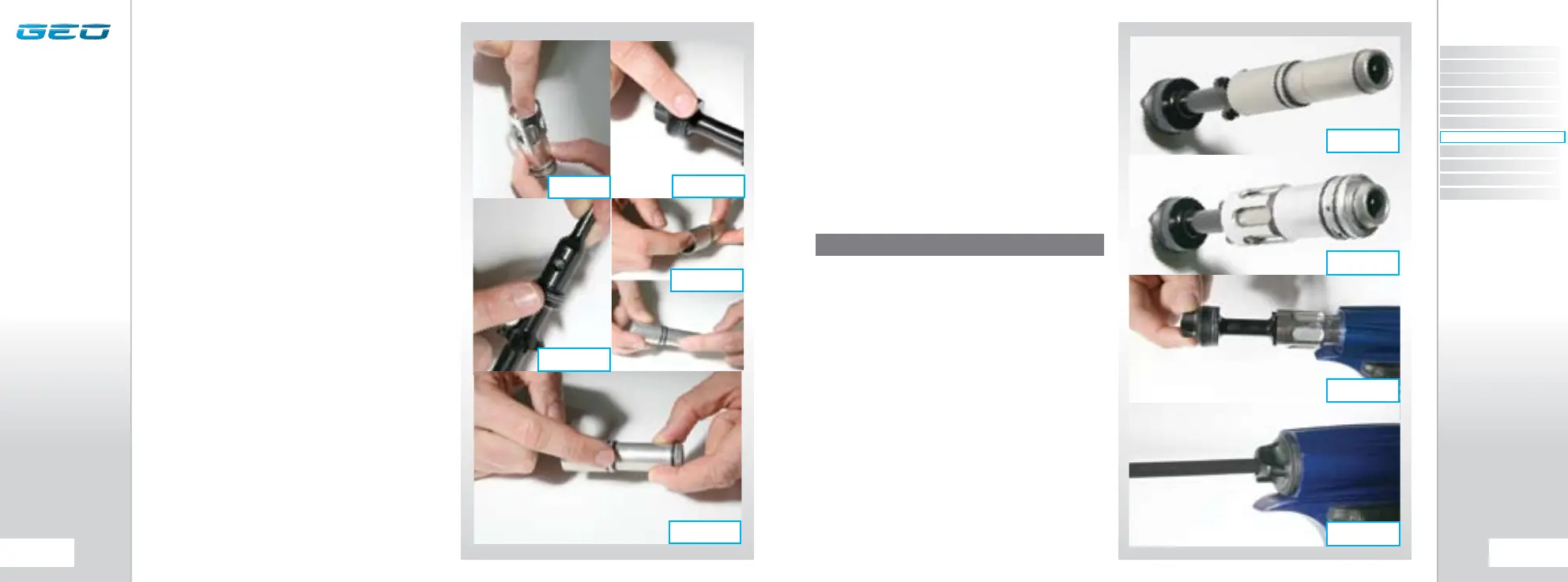

Slide the Bolt onto the Prop Shaft (SEE FIGURE 11.14)
and slide the Can over the Bolt and push into place
until the Can touches the star of the Prop Shaft (SEE
FIGURE 11.15).
Finally wipe any excess Eclipse Grease off the o-ring
on the head of the bolt and insert the complete Bolt
Assembly into the marker body (SEE FIGURE 11.16).
Either by hand or using a 1/4” hex key, screw the Bolt
Assembly into the marker body (SEE FIGURE 11.17).
If inserted by hand the Prop Shaft and Bolt can be
accessed and maintained by hand in future.
NOTE: DO NOT OVER TIGHTEN THE BOLT ASSEMBLY.
(CONTINUED)
Smear a light coat of Eclipse Grease onto the smooth
internal bore of the Can from the rear (SEE FIGURE 11.9).
Take the Prop Shaft and having cleaned off any old
grease, paint or debris, apply Eclipse Grease to the large
rear o-ring and the threads (SEE FIGURE 11.10) and also
to the guide o-ring near the front of the Prop Shaft (SEE
FIGURE 11.11).
Take the Bolt and having cleaned off any old grease,
paint or debris, apply a light film of Eclipse Grease to
cover the front end of the bolt and also the internal
rear bore of the bolt (SEE FIGURE 11.12). Apply a coat of
Eclipse Grease to the 2 external Bolt o-rings near the
centre of the bolt (SEE FIGURE 11.13).
Remove excess Eclipse Grease by wiping off with finger
. Aim to apply only a very thin film of grease to the
components maintained, as excess grease can cause
poor performance.
FIG 11.14
FIG 11.15
FIG 11.16
FIG 11.17
FIG 11.9
FIG 11.10
FIG 11.11
FIG 11.12
FIG 11.13
