Eclipse GEO User Manual

01
02
04
05
06
07
08
09
10
11
03
#013 NBR 70
#14x2 NBR 70
#020 NBR 70
#14x2 NBR 70
#010 NBR 70
#020 NBR 70
BOLT
CAN
PROP SHAFT
#015 NBR 90
#017 NBR 70
O-RING
LOCATION
O-RING
LOCATION

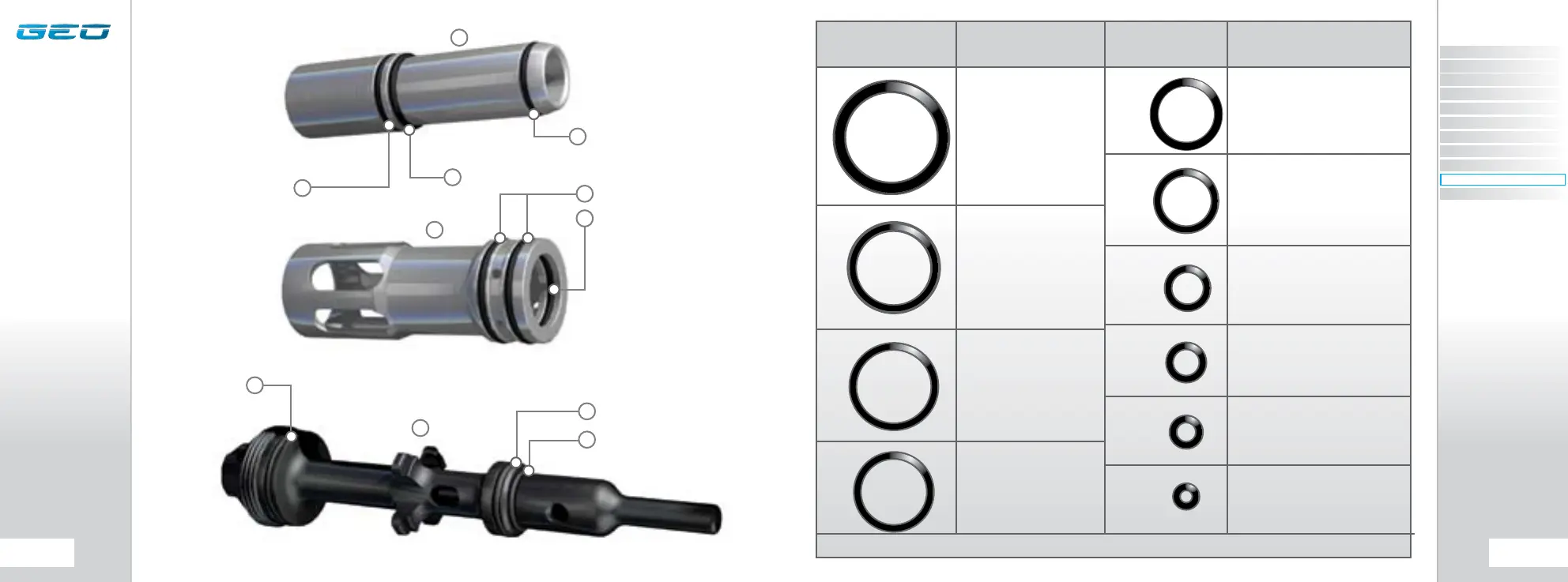

ALL O-RINGS ARE NBR 70 DUROMETER UNLESS OTHERWISE STATED.
Reg Swivel
Barrel Back O-Ring
Inline Regulator Piston
Inline Regulator Top (NBR 90)
Barrel Front O-Ring
Bolt Bumper O-Ring (NBR 90)
Middle Prop Shaft O-Ring
Bolt Rear O-ring
Bolt Front O-Ring
Inline Regulator Bottom
Prop Shaft Bumper O-Ring
Oops Insert External.
Prop Shaft Inner O-Ring
Prop Shaft Adjuster O-Ring
Inline Regulator Adjuster O-Ring
Oops Insert Internal (NBR 90)
Body Plug
006
008
010
011
013
020
017
015
14x2
Can Outer O-Ring
Rear Prop Shaft O-Ring
016
Can Inner O-Ring
PARTS lIST
80.
CONTENTS
ORIENTATION
QUICK SET-UP
USING YOUR GEO
ADVANCED SET-UP
MENU TREE
MAINTENANCE
FAULT FINDING
SERVICE CENTERS
PARTS LIST
SPARES & ACCESSORIES
81.
PARTS lIST
PARTS LIST
QUICK GUIDE

Eclipse GEO Specifications

General

Manufacturer	Planet Eclipse
Power Source	9V Battery
Caliber	.68
Firing Modes	Semi-Auto, Ramping, Full Auto
Rate of Fire	20+ BPS
Height	200mm
Air Source	High Pressure Air (HPA)
