ECO Charge FS3 - AC Filter Board Busbar and AUX Connections

8. Installation
Installation
AUX power supply connection
to 480V outlet J6.
AUX power supply connection
to 208-240V outlet J5.
AC Input
Busbar
Selection
Terminals
J5 240V
J6 480V
STEP
3
STEP
2

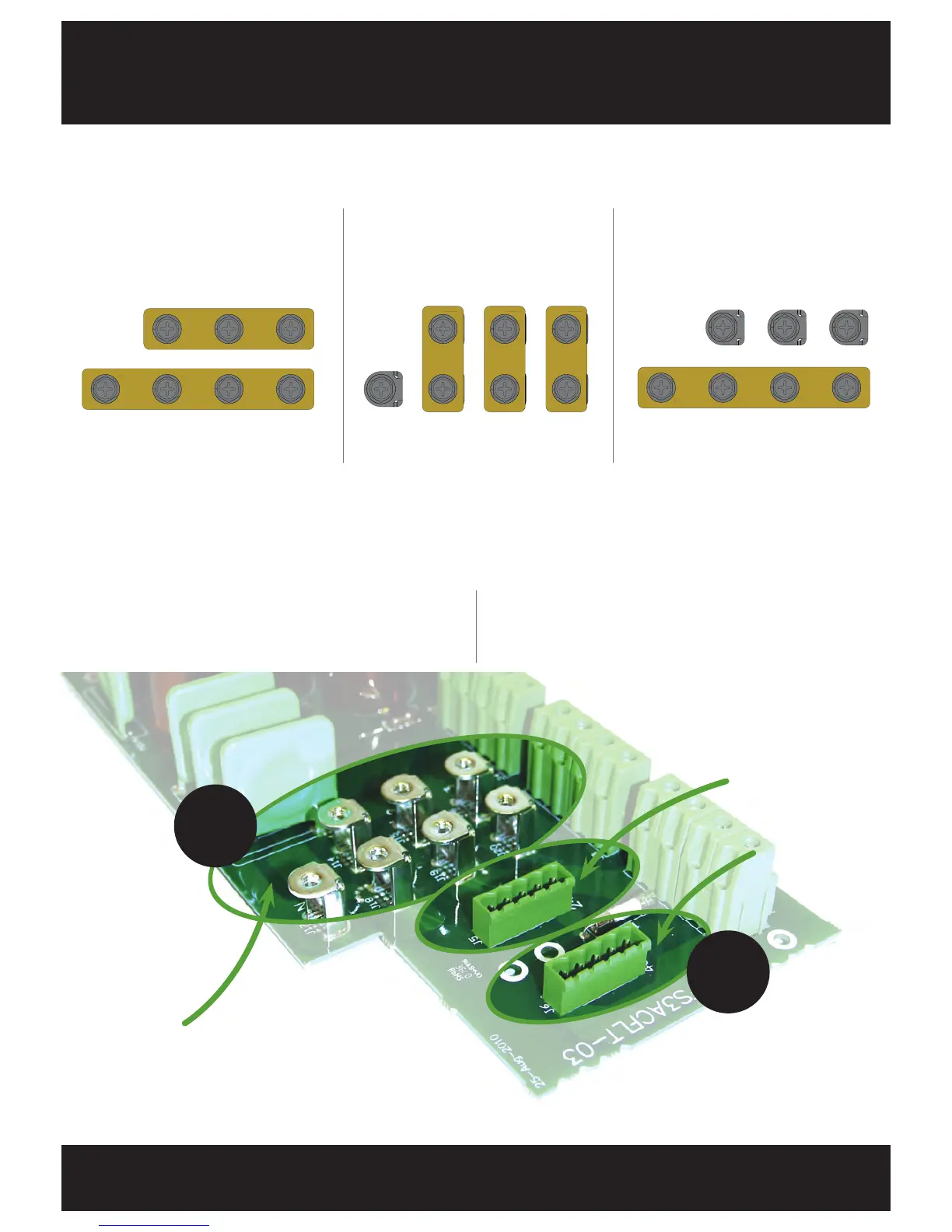

AC Filter Board Configuration - Step 2 of 3
AC Filter Board Configuration - Step 3 of 3
J14 J15 J16
J17 J18 J19 J20
208-240V single
phase configuration.
208-240V three
phase configuration.
J14 J15 J16
J17 J18 J19 J20
480V three
phase configuration.
J14 J15 J16
J17 J18 J19 J20
Use an 8mm socket on the M5 hex head bolts to secure the busbars in place.
Unused busbar connections are bolted to the internal rear of the FS3 cabinet.
