3. Area for the latching function
The mechanical latching speed can be adjusted via Poti (on the board, blue).
Important! the door has to close safely when it is currentless. Raise the latching spped if needed (see point 2).
max. min.
Potentiometer
Zuschlag

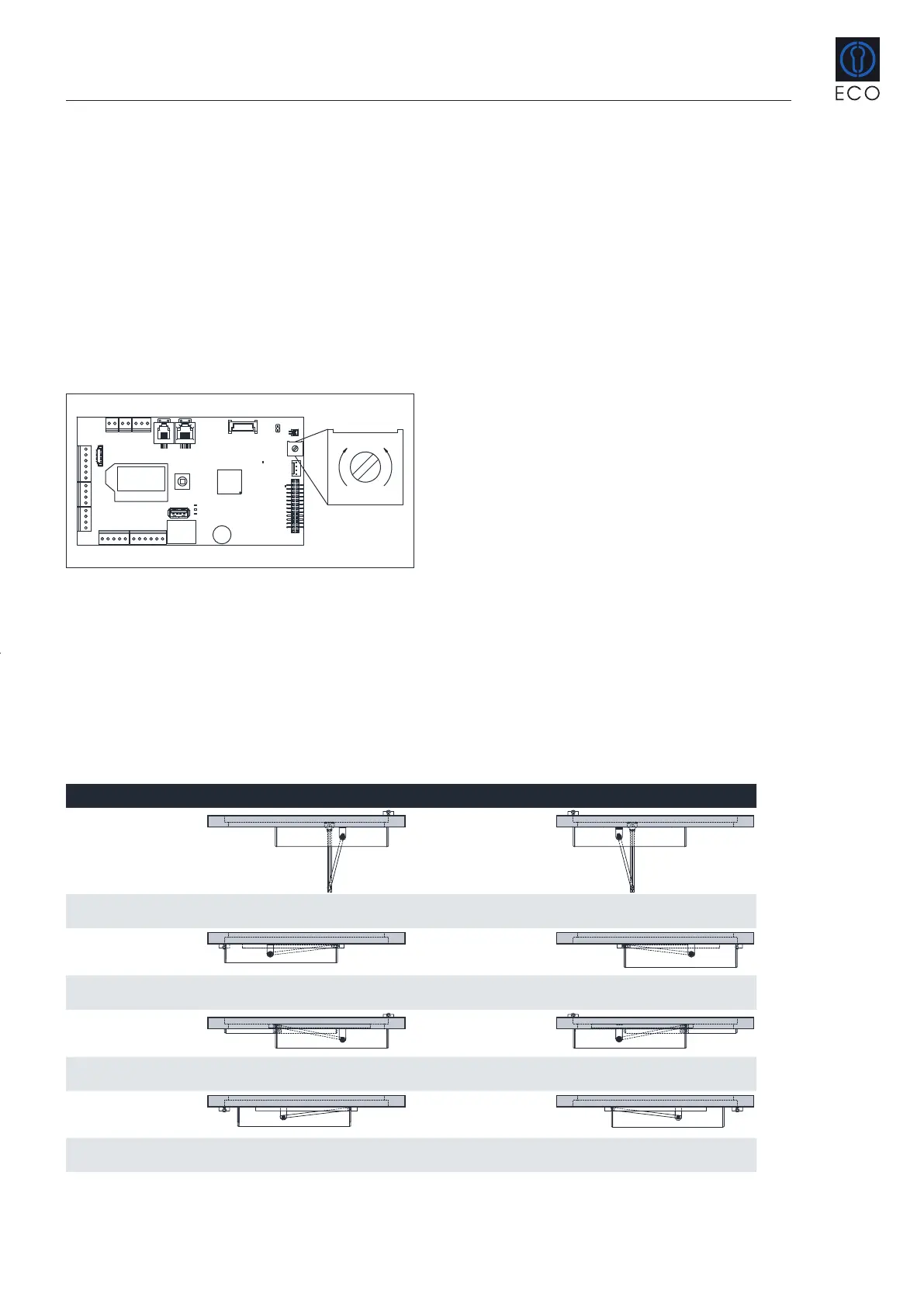

4. Mounting variants
Potentiometer
latching speed
DIN left DIN right
Lintel mounting Lintel mounting
STANDARD pushing:
plug position = Y
INVERSE:
plug position = X
STANDARD pushing:
plug position = Y
INVERSE:
plug position = X
Lintel mounting Lintel mounting
STANDARD pulling:
plug position: X
INVERSE:
plug position = Y
STANDARD pulling:
plug position = X
INVERSE:
plug position = Y
Lintel mounting Lintel mounting
STANDARD pushing:
plug position = Y
INVERSE:
plug position = X
STANDARD pushing:
plug position = Y
INVERSE:
plug position = X
Leaf mounting Leaf mounting
STANDARD pushing:
plug position = Y
INVERSE:
plug position = X
STANDARD pushing:
plug position = Y
INVERSE:
plug position = X
