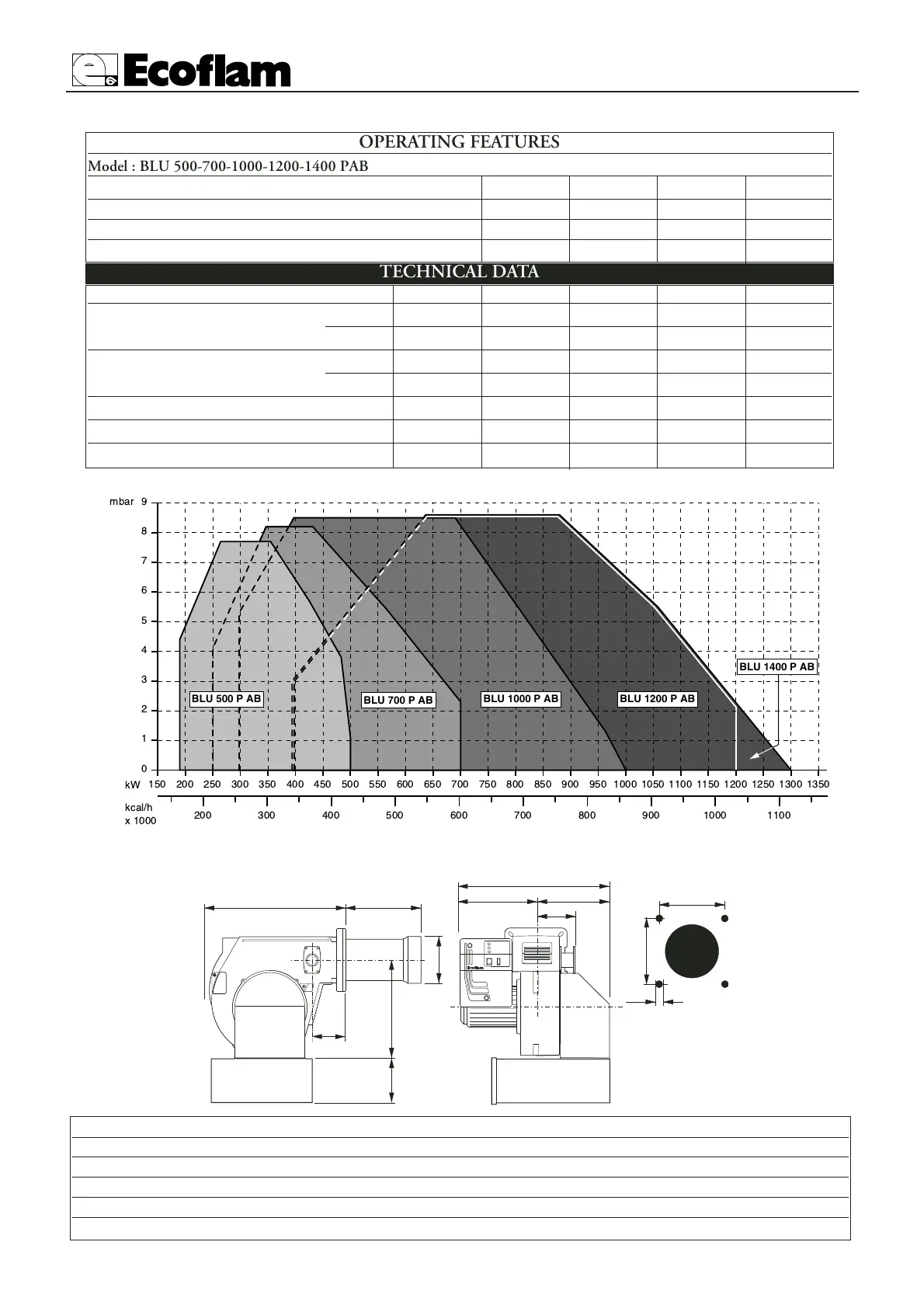

Ecoflam BLU 700 P AB - Technical Specifications and Overview; Technical Data

pag.9
LB 448 Blu 500 ÷ 1400 P AB B
BLU 500 P AB 700P AB 1000P AB 1200P AB 1400 P AB
Termal power max. kW 500 700 1000 1200 1300
kcal/h 430.000 602.000 860.000 1.032.000 1.118.00
Termal power min. kW 190 250 300 400 400
kcal/h 163.400 215.000 258.000 344.000 344.000
Voltage 50 HzV 230 / 400 230 / 400 230 / 400 230 / 400 230 / 400
Motor kW 0,55 0,74 1,1 2,2 2,2
Rpm N° 2800 2800 2800 2800 2800
 
         
                      













 
BLU 500 P AB
BLU 700 P AB
BLU 1000 P AB BLU 1200 P AB
BLU 1400 P AB
TECHNICAL DATA
OPERATING FEATURES
Model : BLU 500-700-1000-1200-1400 PAB Gas family - II 2H 3P
G20 G25 G31 G30
Max. gas pressure mbar 25 - 45 -
Min. gas pressure mbar 17 - 25 -
Fuel L.C.V. kcal/Nm3 8.570 - 22.260 -
WORKING FIELDS
Output
Backpressure in comb. chamber
OVERALL DIMENSIONS
G
M
L
I
F
D - D1E
CB
A
H
N
O
MODELS A B C D D1 E F G H I L M N O
BLU 500 PAB 650 330 320 175 335 555 160 385 225• 190 190 M10 115 165
BLU 700 PAB 650 330 320 175 395 555 180 385 225• 190 190 M10 115 165
BLU 1000 PAB 650 330 320 175 395 555 190 385 225• 190 190 M10 115 165
BLU 1200 PAB 670 350 320 310 460 555 215 385 225• 190 190 M10 115 165
BLU 1400 PAB 670 350 320 310 460 555 215 385 225• 190 190 M10 115 165
D = short head D1 = long head
• = ( Optional)
Dimensions (mm)
