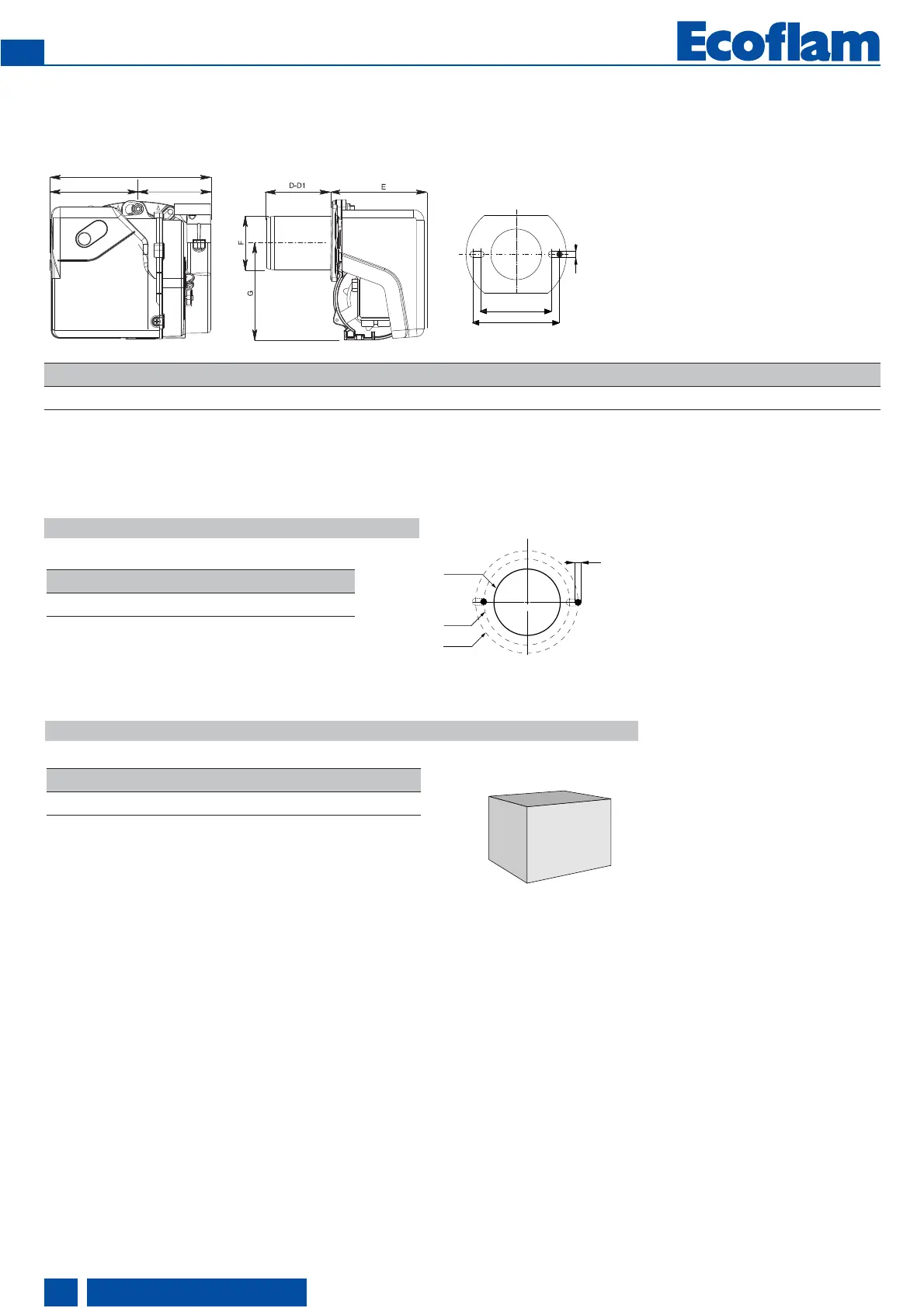

Overview - Dimensions
X
Y
Z
Packaging
MAX 1
Ø a
Ø b
Ø c
M
MAX 1
Model
A B C D D1 E F G I L M
MAX 1 263 143 120 80 140 153 89 160 126,5 151,5 M8
Model Ø a Ø b Ø c
MAX 1 100 126,5 151,5
Model
X Y Z Kg
MAX 1 310 400 320 7
Boiler plate drilling
A
BC
I
M
L
