Ecoflam MAX P 35 AB User Manual

Function
- TCH 2xx control box
In parallel with its control and safety
functions, the TCH2xx control unit allows
the following to be set: (see illustration)
- the position of the air flap during ignition.
- the position of the air flap during the 1st
stage.
- the opening position of the stage 2 valve
(for switching from 1st to 2nd stage).
- the position of the air flap during the 2nd
stage.
- the closing position of the stage 2 air flap
(for switching from 2nd to 1st stage).
The parameters for the control unit are set
using the display and 5 keys. Operating
values are shown in real time on the
display.

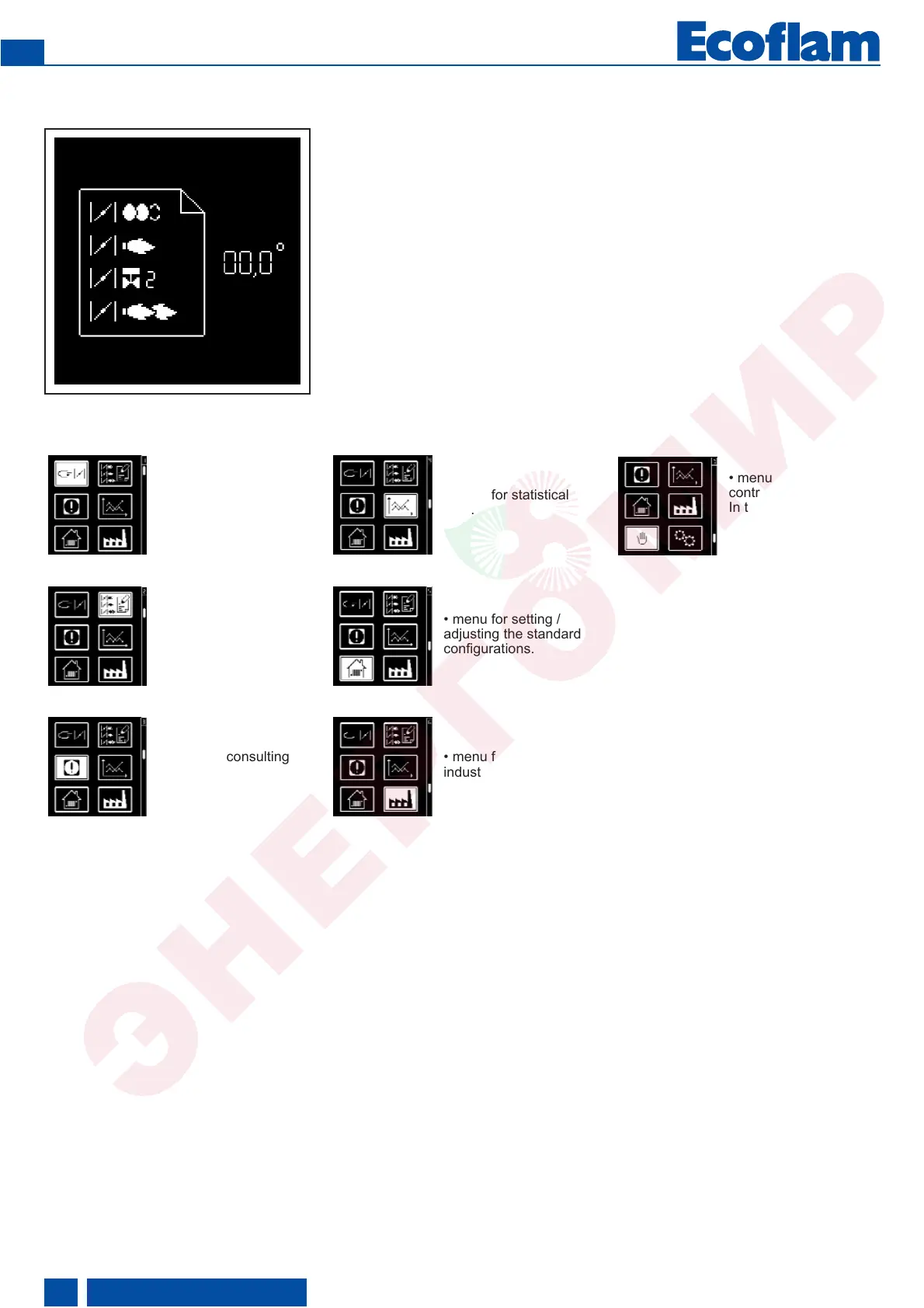

Pressing the keys gives access to 7
menus:
• menu for setting the
servomotor.
• menu for storing the
servomotor setpoints in
the display.
• menu for consulting
faults.
• menu for statistical
data.
• menu for setting /
adjusting the standard
configurations.
• menu for setting
industrial applications.
• menu for manual
control.
In these menus, it is
possible to adjust the
control unit's standard
configurations. These
are pre-set in the factory.
No modifications may be
carried out on-site
without prior consultation
with ECOFLAM.
The access code and the
setting setpoints for this
menu are available on
request.
420010492200
EN
10

Ecoflam MAX P 35 AB Specifications

General

Brand	Ecoflam
Model	MAX P 35 AB
Category	Burner
Language	English
