EcoFlow 60W - Connecting Solar Panels; Wiring in Parallel; Wiring in Series

1. Connect the positive poles of the two solar panels with the MC4
parallel cable and repeat the step for the negative poles.
2. Connect the parallel cable connectors (output side) with the

MC4 connectors of the Solar Charging Cable (MC4 to XT60
cable) respectively.
3. Connect the XT60 connector on the Solar Charging Cable(MC4
to XT60 cable) to the XT60 port on the portable power station
to recharge the unit.
1. Snap the male connector of one solar panel into the female
connector of the other respectively to wire the three solar panels
in series.
2. Wire the two connectors that are unwired in step 1 with the Solar
Charging Cable (MC4 to XT60 cable) respectively.
3. Connect the XT60 connector on the Solar Charging Cable (MC4
to XT60 cable) to the XT60 port on the portable power station
to recharge the unit.
*Formoreinformationandmethodsaboutsolarcharging,pleaserefertotheusermanualofthespeci󽗉cportablepowerstation.
(refer to the figure below)
(refer to the figure below)

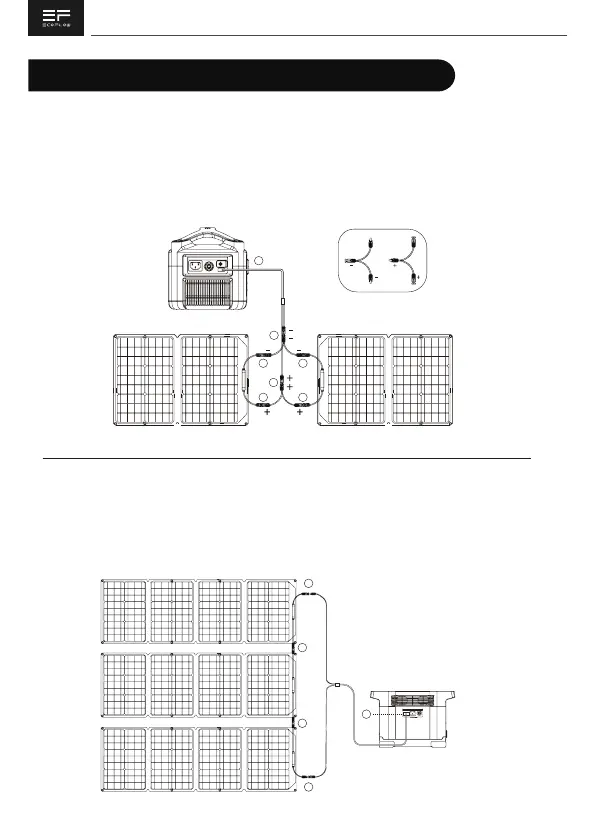

Wire solar panels in parallel
Wire solar panels in series
Connecting the Solar Panels in Parallel or in Series
1
2
3
2
1
Solar MC4 parallel connection cable
Solar Panel A
Solar Panel B
* Users have to buy the solar panels and other
parallel connection accessories seperately.
1 1
1 1
2
2
3
